Benefits
- Fully complies with pharmaceutical regulations (ICH) as specified in ICH Q1A (R2) for new drug substances and drug products.
- Room elements manufactured in Germany to high standards.
- Easy to operate.
- Durable and corrosion-resistant for long-lasting use.
- Environmentally friendly refrigerant with GWP value of 547.
- Relative humidity accuracy of ± 2.5%.
- Temperature accuracy of ± 1.5°C.
- Maintenance can be performed with minimum disruption to climate conditioning.
- Highly insulated room panels with U value of only 0,21 W/m2K

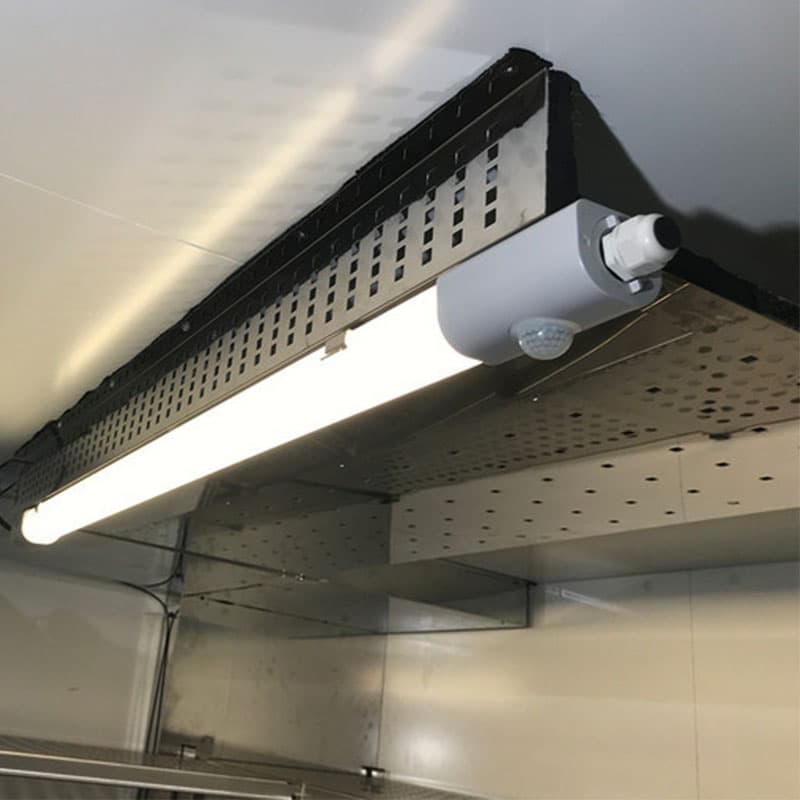

- LED lighting with motion detector.
- Duct work for proper distribution of air.

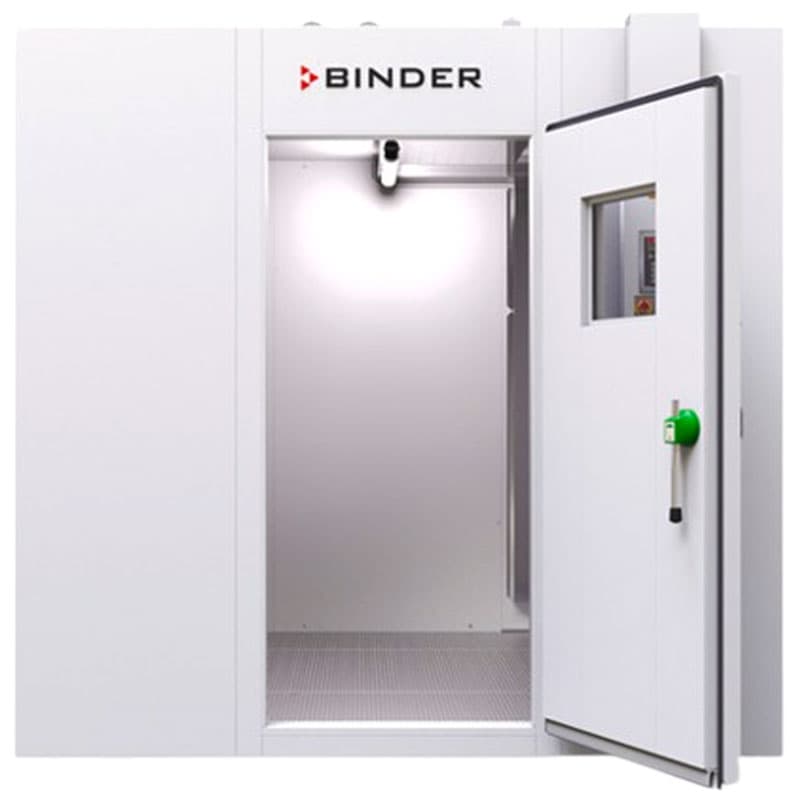

- Stainless steel interior.
- Triple-insulated, fixed glass viewing window enables you to easily to see what’s going on inside the chamber.
- Exterior service access.
- Conditioner positioned at rear of chamber.
- Low-noise operation and tidy connection lines.
- 50mm access port included — additional access ports available.
- Three year warranty.
- Temperature and humidity calibration service available.
| Model | Interior Volume (Cubic Meters) | Temperature Range | Humidity Range | Outer Dimensions (mm) | Internal Dimensions (mm) |
| WIC 1 | 12 | 10°C to 50 °C | 20% to 90% RH | 2600 (Side 1) x 2500 (Side 2) x 2470 (Height) | 2400 (Side 1) x 2300 (Side 2) x 2270 (Height) |
| WIC 2 | 18 | 10°C to 50 °C | 20% to 90% RH | 2600 (Side 1) x 3600 (Side 2) x 2470 (Height) | 2400 (Side 1) x 3400 (Side 2) x 2270 (Height) |
| WIC 3 | 24 | 10°C to 50 °C | 20% to 90% RH | 2600 (Side 1) x 4700 (Side 2) x 2470 (Height) | 2400 (Side 1) x 4500 (Side 2) x 2270 (Height) |
For a comprehensive overview of the technical data of our Walk-In Chambers Series WIC, please download the “Data Sheet” further up the page.
