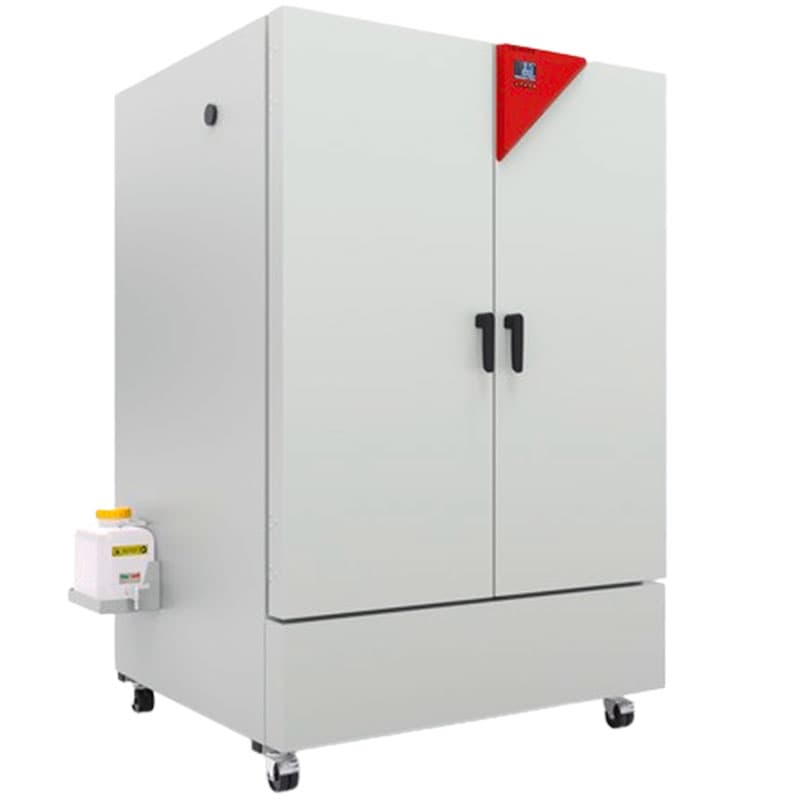

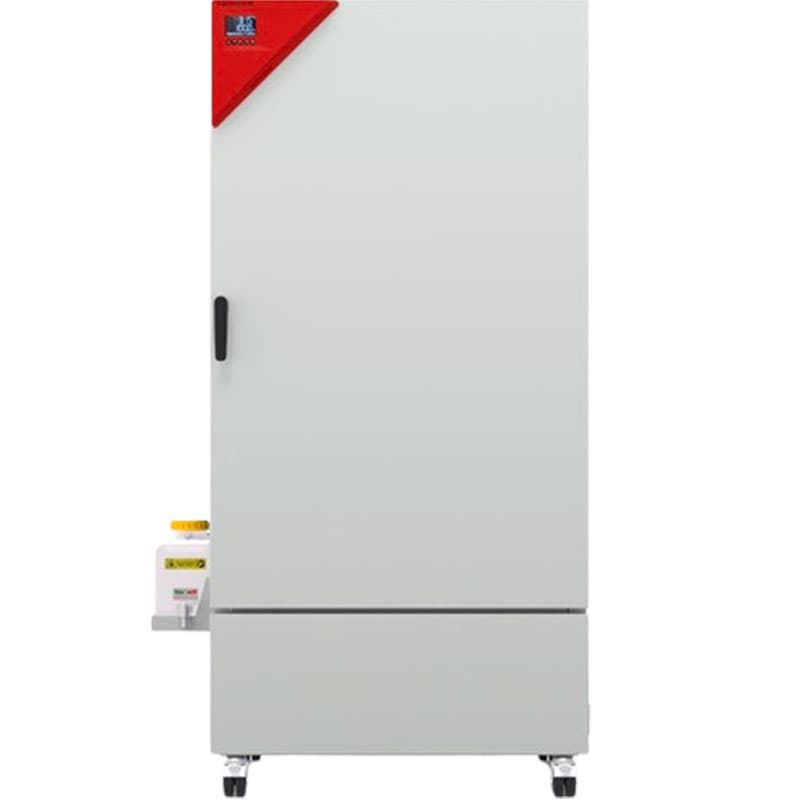

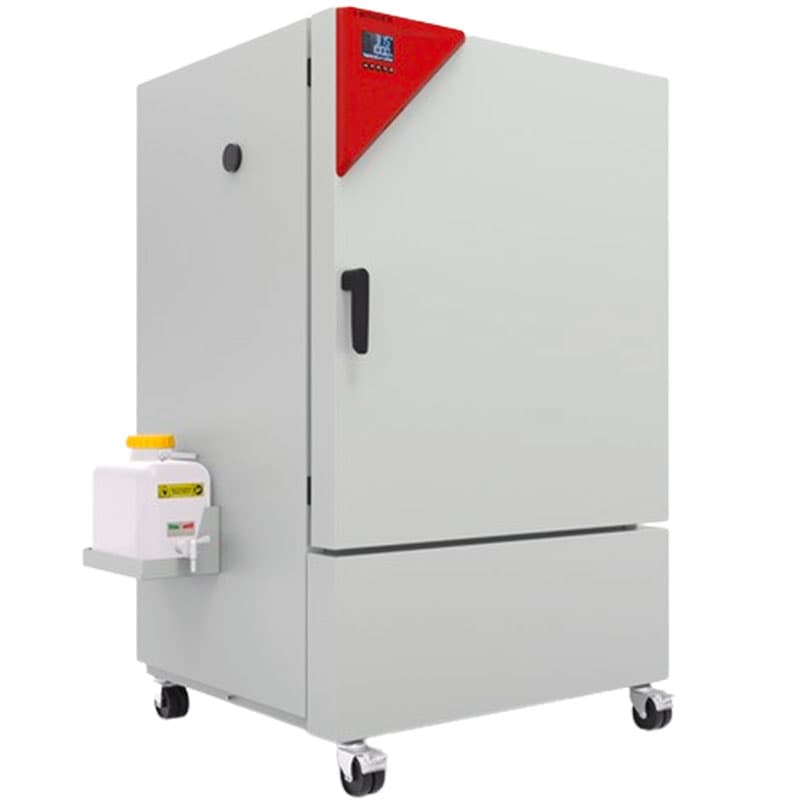

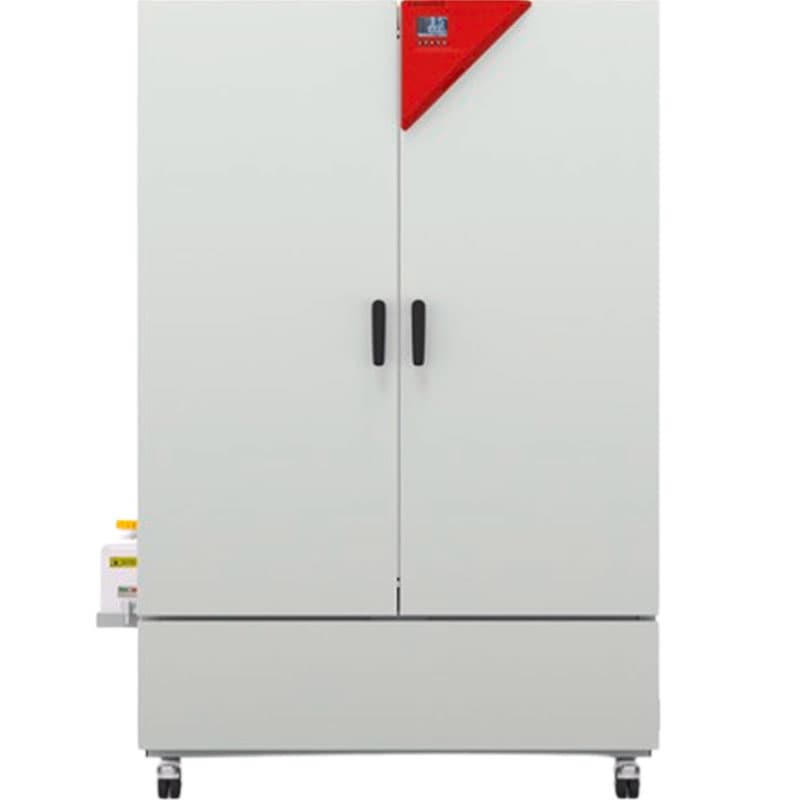

Constant Climate Chambers Series KBF-S ECO
Manufactured by BINDER
Positively impact the environment with our KBF-S ECO Series Constant Climate Chamber. It’s extremely economical thanks to thermoelectric cooling technology with patented heat dissipation.
This means refrigerant is not required, the annual energy consumption is up to 75% lower than compressor-based units, and the chamber is quiet during operation.
Four different models are available with interior volumes ranging from 247 litres to 10200 litres, and a voltage choice of 230V or 240V.
Price on quotation
Benefits
- Environmentally friendly and energy-saving climatic chamber for stability testing.
- Possible to carry out particularly energy-saving long-term stability testing and accelerated stability testing according to ICH Q1A in units from the KBF-S ECO series.
- Tested parameters include temperature, humidity, and light.
- Failsafe operation without compromise ensures reliability.
- Standard-compliant testing according to the ICH Q1A guideline ensures safety, even with a full load.
- Independent water supply via tank.
- LCD to display temperature and humidity along with additional information and alarms.
- Internal data logger, measured values can be read out in open format via USB.
- Unit self-test for comprehensive status analysis.

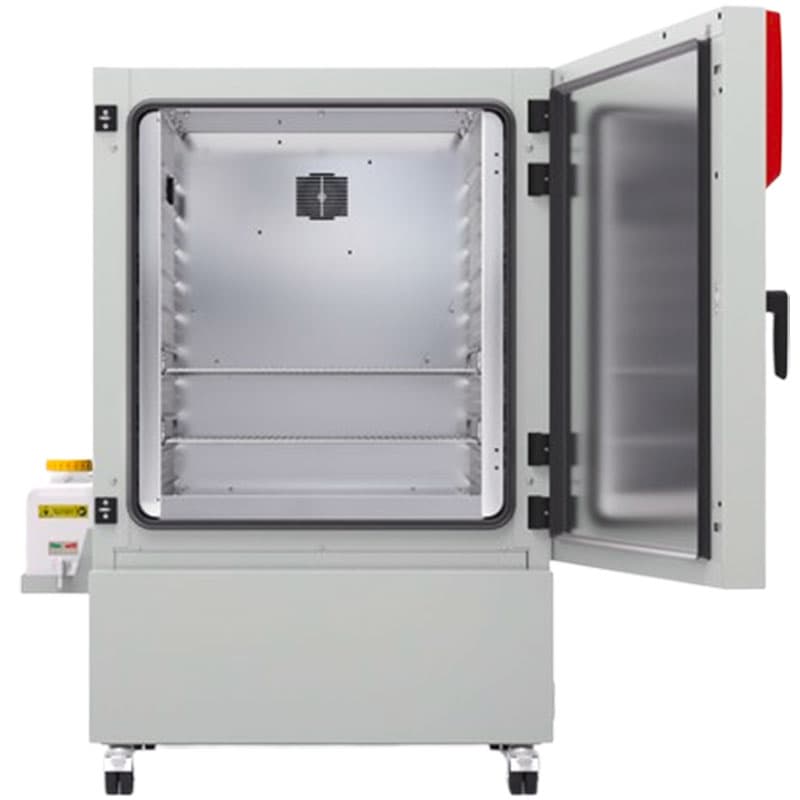

- Inner chamber made from hygienic and robust stainless steel.
- 2 stainless steel racks, including shelf carrier
- Access port with silicone plug, 30 mm, left.
- Computer interface: Ethernet.
- Smart, as a wide range of accessories makes it highly compatible for adaptation to specific customer requirements.
- Environmental chamber calibration service available.
| Model | Interior Volume (L) | Temperature Range | Humidity Range | Internal Dimensions (mm) | Housing Dimensions (mm) (Not including fittings and connections) |
| KBF-S ECO 240 | 247 | 0°C to +70°C (max. 28 °C under ambient temperature) | 10% to 80% RH | 650 (W) x 785 (H) x 485 (D) | 932 (W) x 1461 (H) x 796 (D) |
| KBF-S ECO 400 | 400 | 0°C to +70°C (max. 28 °C under ambient temperature) | 10% to 80% RH | 650 (W) x 1200 (H) x 390 (D) | 925 (W) x 1946 (H) x 796 (D) |
| KBF-S ECO 720 | 700 | 0°C to +70°C (max. 28 °C under ambient temperature) | 10% to 80% RH | 973 (W) x 1250 (H) x 576 (D) | 1254 (W) x 1925 (H) x 885 (D) |
| KBF-S ECO 1020 | 1020 | 0°C to +70°C (max. 28 °C under ambient temperature) | 10% to 80% RH | 973 (W) x 1250 (H) x 836 (D) | 1254 (W) x 1925 (H) x 1146 (D) |
For a comprehensive overview of the technical data of our KBF-S ECO series Constant Climate Chambers, please download the “Data Sheet” further up the page.
