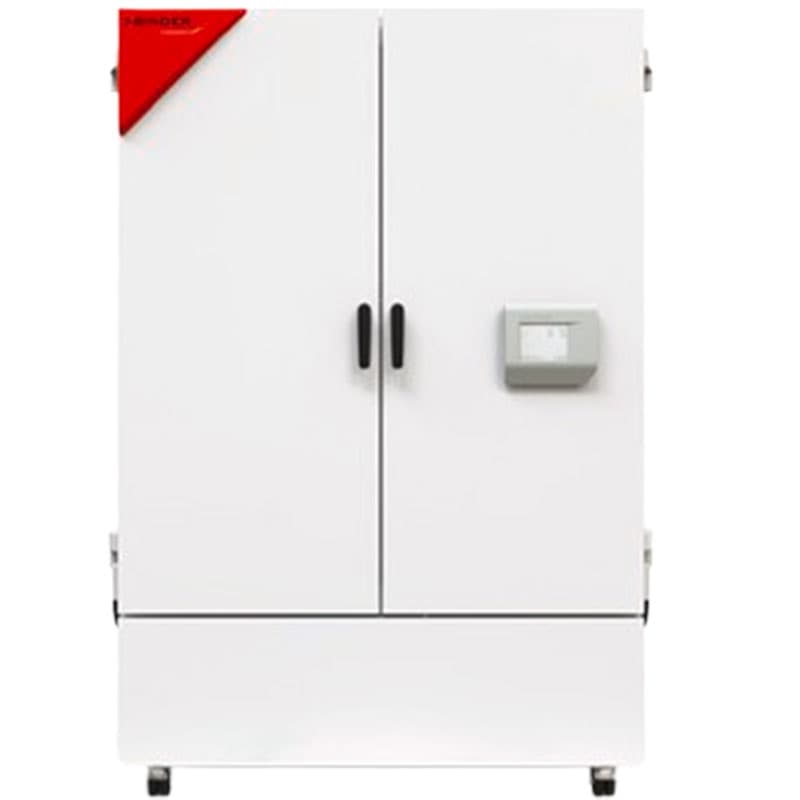

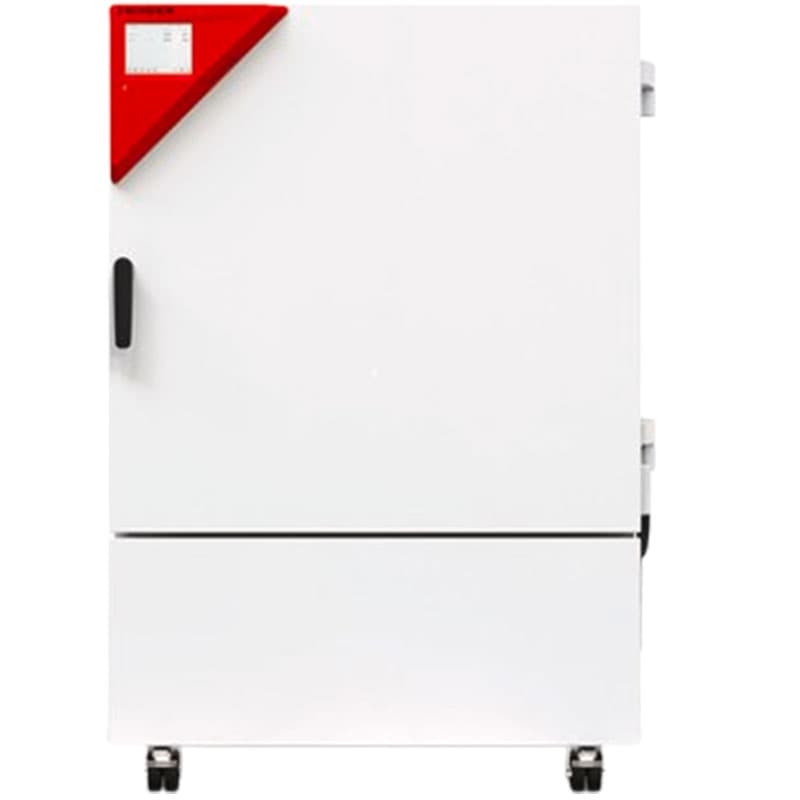

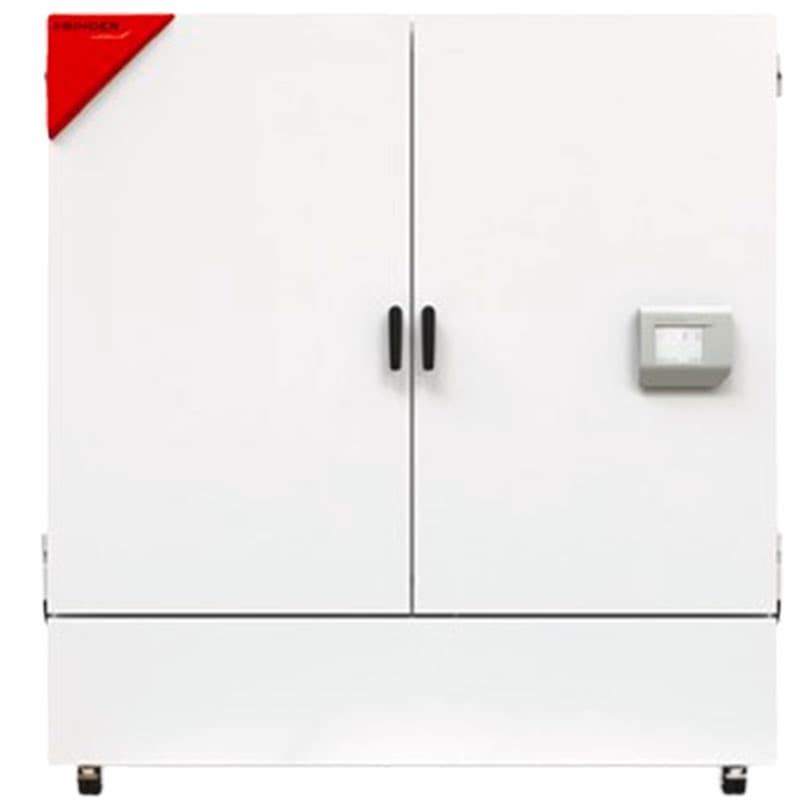

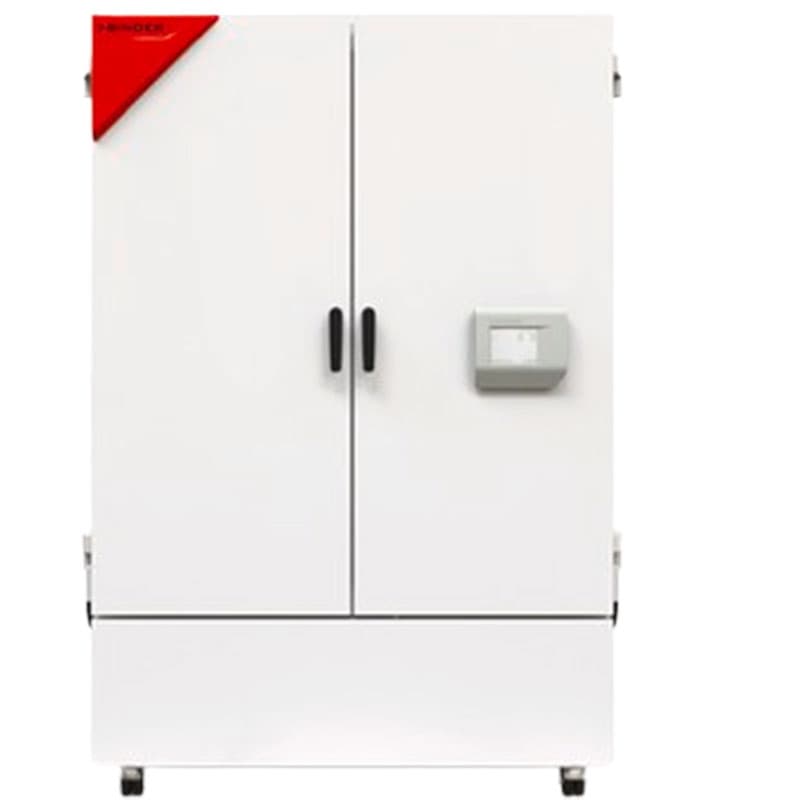

Constant Climate Chambers, Extended Range Series KBF PRO
Manufactured by BINDER
The KBF PRO Series BINDER constant climate chamber is a powerful all-rounder among constant climate chambers. Compared to its predecessor (the KMF model), it also consumes up to 40% less energy, minimising your operating costs.
It’s equipped with all kinds of sophisticated technology, making it suitable for demanding material tests. The expanded temperature / humidity range of -20 °C to +100 °C and 10 % to 98 % RH makes testing a breeze, whether it takes place at -20°C or under THB (temperature humidity bias) conditions at 85°C and 85% relative humidity.
Six different models are available, with interior volumes ranging from 127 litres to 1610 litres.
Price on quotation
Benefits
- Reliable and powerful thanks to innovative temperature control technology.
- Flexible water supply options for all installation sites.
- Energy-efficient cooling with modern inverter cooling unit.
- Cooling with climate-neutral R-290 refrigerant.
- Door heating to prevent condensation.
- Adjustable fan speed.
- APT.line™ preheating chamber technology.
- Humidity regulation with capacitive humidity sensor and responsive steam humidification.
- Housing design with HIT technology.
- Durable stainless steel inner chamber.
- Inner doors made of metal oxide-coated safety glass.
- Two racks with stainless steel telescopic rails.
- Large access port with silicone plug.
- Floor standing units featuring robust twin castors with brakes at the front.
- Stackable tabletop units with a volume up to 130 litres.
- Intuitive touchscreen controller with time-segment and real-time programming.
- Internal data logger, measured values can be read out in open format via USB.
- LCD to display temperature and humidity along with additional information and alarms.
- Internal data logger, measured values can be read out in open format via USB.
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms.
- Unit self-test for comprehensive status analysis.
- Data interfaces: Ethernet, USB.
- BINDER multi management software APT-Com™ basic edition.
- Ergonomically adjustable control terminal (for units with a volume of 470 litres and above).
- Signal triangle with light-up status display (for units with a volume of 470 litres and above).
- Optional LED light modules for plant growth (for models from 260).
- Optional light modules for ICH photostability testing (for models 260, 470, 720).
- Environmental chamber calibration service available.
| Model | Interior Volume (L) | Temperature Range | Humidity Range | Internal Dimensions (mm) | Housing Dimensions (mm) (Not including fittings and connections) |
| KBF PRO 130 | 127 | -20°C to +100°C | 10% to 98% RH | 656 (W) x 500 (H) x 386 (D) | 900 (W) x 1005 (H) x 710 (D) |
| KBF PRO 260 | 262 | -20°C to +100°C | 10% to 98% RH | 656 (W) x 695 (H) x 575 (D) | 930 (W) x 1396 (H) x 900 (D) |
| KBF PRO 470 | 472 | -20°C to +100°C | 10% to 98% RH | 656 (W) x 1250 (H) x 575 (D) | 930 (W) x 1951 (H) x 900 (D) |
| KBF PRO 720 | 727 | -20°C to +100°C | 10% to 98% RH | 1011 (W) x 1250 (H) x 575 (D) | 1285 (W) x 1951 (H) x 900 (D) |
| KBF PRO 1060 | 1070 | -20°C to +100°C | 10% to 98% RH | 1011 (W) x 1250 (H) x 847 (D) | 1285 (W) x 1951 (H) x 1175 (D) |
| KBF PRO 1600 | 1610 | -20°C to +100°C | 10% to 98% RH | 1521 (W) x 1250 (H) x 847 (D) | 1795 (W) x 1951 (H) x 1175 (D) |
For a comprehensive overview of the technical data of our KBF PRO Series Constant Climate Chambers, please download the “Data Sheet” further up the page.
