Benefits
- Designed to work with any tension apparatus and can be customised to meet unique application needs.
- Durable stainless steel construction enhances longevity and resistance to environmental fluctuations.
- Melted, polished, and brushed from the outside for a professional finish.
- Self-supported two-fold body frame made of 2mm thick stainless steel grade 316.
- Software included for segmented tests at different ramps and dwells.

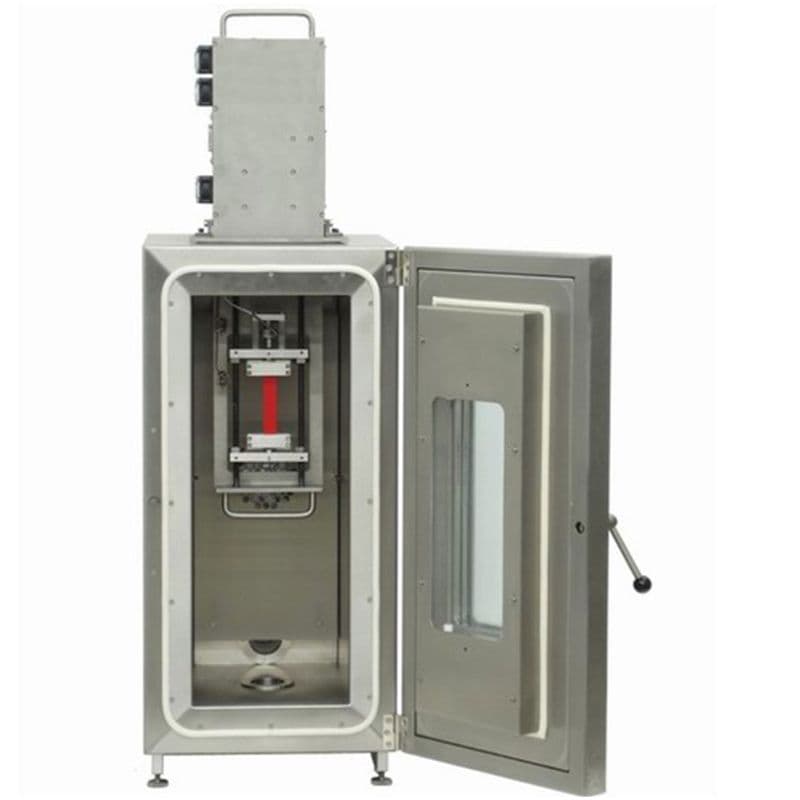

- Front door contains four glass panes, enabling users to easily see samples inside the chamber.
- Heating coils are fitted between the inner glass plates to prevent the glass frosting.

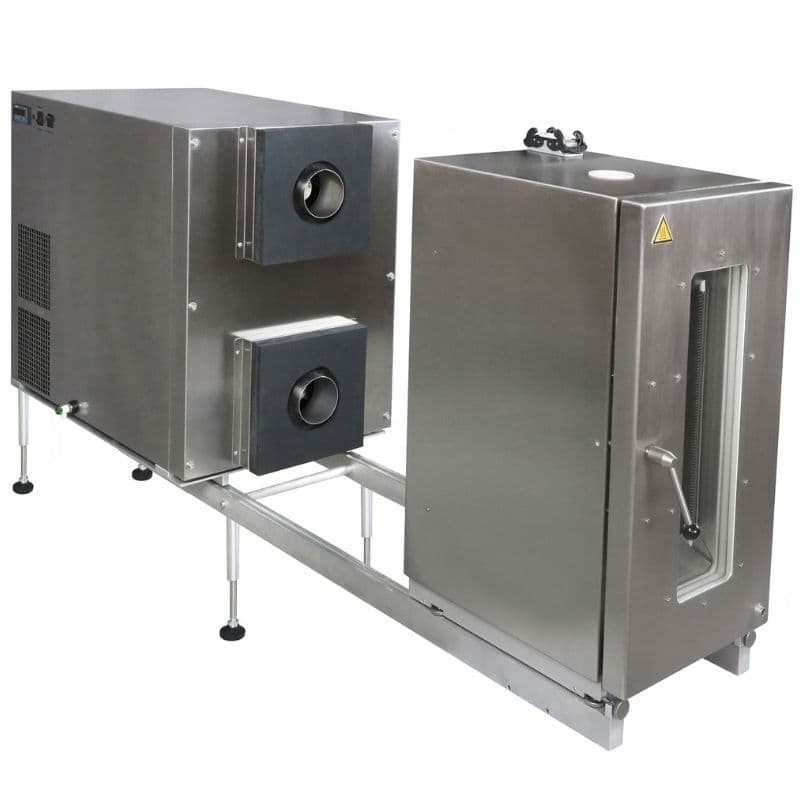

- Frame to easily move the chamber into and out of the test frame.
- Chamber with adjustable feet is carried by the bearings and can be moved up to 24 inches (611 mm) away from the tensile tester.
- Forced air circulation helps achieve consistent, efficient, and reliable environmental testing conditions.
- Pullrod hole has a Teflon guide tube (external as standard) to reduce friction and wear on the pullrod as it moves (optional internal Teflon guide tube also available).
- High heat-up and cool speeds — Heat up speed 15°C/Minute (from 20°C to 80°C without grip). Cooling requires liquid nitrogen, controlled by a magnetic valve on the rear of the chamber.
- Sika self-tuning PID Temperature Controller with 0.1 °C resolution (optional Omron RS-232 serial or Eurotherm RS-485).
- PT 100 temperature sensor (RTD).
- Two year warranty (extendable to three years).
- Full range of grips and fixtures available to cover the extreme temperature range our chambers can cover.
- Bespoke sizes and designs available to order.
Standard Model
TH 2700: Standard size (generally in stock)
Internal Dimensions: 220mm x 220mm x 580mm
External Dimensions: 360mm x480mm x 766mm
Weight: 50kg
Construction: Fabricated from stainless steel with brushed finish.
Operation Mode: Offline testing/ lab use with Tensile or Universal Tester.
Materials: Sheet materials, plastics, metals, building products.
Power Rating: Heating power: 2.3 kW (220 Volt).
Control Temperature Range: -80+°C + 280°C.
Temperature Control Accuracy:
+/-0.2°C accuracy at 4°C setpoint
+/0.5°C accuracy at 65°C setpoint
+/- 3°C accuracy at -80°C or at +280°C
Temperature Sensor: PT 100 temperature sensor (RTD)
Control Console: 19” rack-mountable control console with 4m cable.
Heat-Up Speed: 15°C/Minute (from 20 to 80°C without grips fitted).
Energy consumption of the standard TH2700 without grips:
100°C 0.11 kWh/h
200°C 0.24 kWh/h
300°C 0.38 kWh/h
Cooling Method (Standard Option): Cooling requires liquid nitrogen, controlled by a magnetic valve on the rear of the chamber. To reduce temperature to -80°C, 4 kg of liquid nitrogen is required. To maintain -80°C, 0.5 kg liquid nitrogen per hour is required.
Other Models
TH2700-EK: Same as TH2700 but with inserts (delivery 14-21 days)
TK…-SX: Special versions of chambers with special dimensions (Delivery 6 weeks approx)
Inside A x B x C (Width x Depth x Height)
TK…-SX-EK: Same as version SX but with inserts
Optional Extras
- Bushings available to reduce throughhole to a smaller diameter for Pull rods.
- Compressor cooling available.
- Optional door light (heating coils alternative).
- Optional interior chamber light.
- Optional long hole in rear of chamber for extensometer.
- Removable insert system to enable chamber to be moved into / out-of position while grips and pull rods are attached.
- Temperature regulator with HS-232 or RS-485.
- Versions of chambers with special dimensions and temperature ranges.
