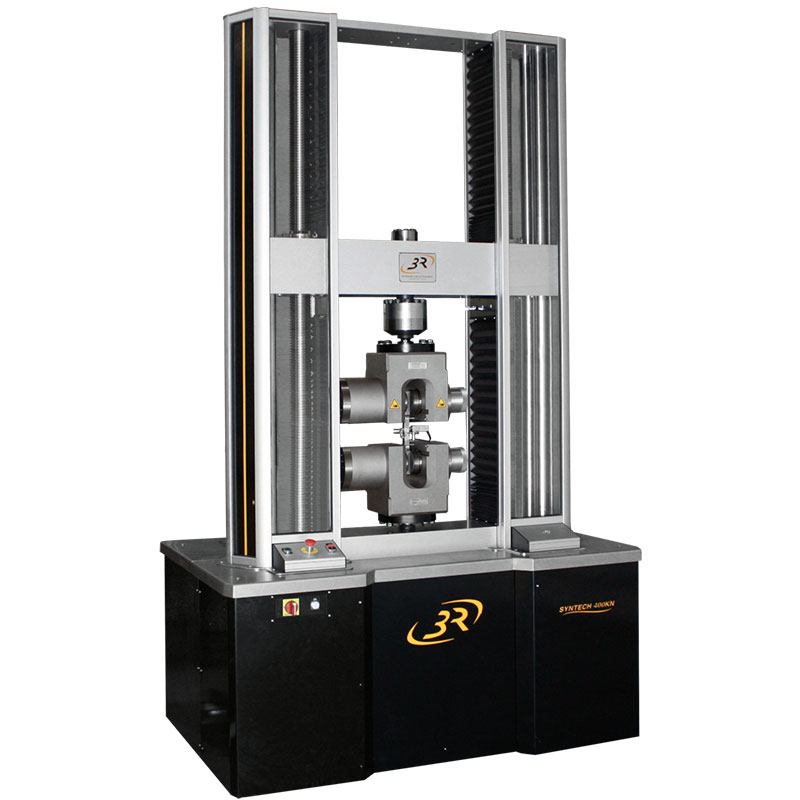

SYNTECH 400 Medium-Capacity Electromechanical Testing Machine – 400 kN
Manufactured by 3R Industries
Engineered for medium-capacity testing applications up to 400 kN, this electromechanical universal testing machine (UTM) is suited for construction materials, metals, reinforced plastics, and structural assemblies.
With four guide columns, two preloaded ball screws, and the RIGI-DRIVE II transmission, it delivers exceptional stiffness (~750 kN/mm) and precision. It also has a large working area for complex test set-ups.
Price on quotation
Benefits
- Medium-capacity tensile testing with exceptional rigidity.
- Conical gearboxes and preloaded gear sets deliver backlash-free force transmission with minimal maintenance.
- Brushless servo motor with integrated brake; speed range 0.005 µm/min to ~465 mm/min; capable of 1 Hz cycling at 1 mm amplitude.
- Force channel resolution of 10 million counts with Class 1/0.5 accuracy, position accuracy Class 0.2.
- Large working space — Crosshead travel ~1555 mm (standard) or 1900 mm (extended); test width ~750 mm; working area height ~540 mm. Option to go larger if needed.
- Machine-tool grade bearings, sealed and greased for life, stainless-steel and polycarbonate safety enclosures; LED front lighting.
- Powerful supply — 400 V three-phase; power consumption ~3.55 kW.
- Tensile tester calibration service available.
- Choose from a wide range of universal testing machine accessories, including grips, environmental chambers, and extensometers.
- A full range of load cells from 1N up to the capacity of the frame are available.
Software
This tensile tester comes supplied with comprehensive and user-friendly Synt-X software, enabling operators to move quickly from setup to execution, while ensuring consistency and repeatability. With features like pre-configuration of products and specimens, and automatic generation of customised test reports, it helps users focus on their tests by reducing setup time and minimise operator errors.
The Synt-X test control software is designed, developed, and maintained in-house by 3R’s engineering team, guaranteeing long-term compatibility and continuous improvement for routine production testing, advanced research, and standard-compliant mechanical tests.
Customisable Options
Need more speed, a bigger machine, or a custom-built solution? We understand every testing scenario is unique, which is why all our 3R Industries tensile testing machines can be meticulously crafted to meet your specific testing requirements.
We promise unmatched value and exceptional performance in every unique configuration. Take a look at the 3R Industries UTM catalogue and contact us to let us know your bespoke requirements.
“Engineered in France, Supported in the UK by AML, Built to last!”
Standards
ASTM A370, ASTM C273, and ASTM C1609/C1609M.
Technical Data
| Capacity | 400 kN |
| Frame Stiffness (kN/mm) | 725 |
| Screw Type | Preloaded ball screws |
| Number Of Guidance Columns | 4 |
| Number Of Ball Screws | 2 |
| Transmission Type | Rigi-Drive II transmission – High efficiency conical torques |
| Bearing Type | Machine-tool grade bearings, sealed |
| Accuracy (Class) Load Cell Measurement |
Class 1 (≥0.1% FS) / Class 0.5 (≥0.2% FS) – ISO 7500-1 |
| Crosshead Position Resolution | 0,025 |
| Maximum Speed, Max Load | 465 mm/min |
| Minimum Speed | 1 µm/min |
| Crosshead Travel Without Load Cell And Interface |
1555 mm – HA: 1900 mm |
| Test Width | 750 mm |
| Working Area Height | 560 mm |
| Dimensions | 1492 mm (W) x 1000 mm (D) x 2485 mm (H) – HA: 1492 mm (W) x 1000 mm (D) x 2850 mm (H) |
| Weight | 2160 kg HA: 2260 kg |
| Power Supply | 400 V single phase |
| Power Consumption | 4500 W |
