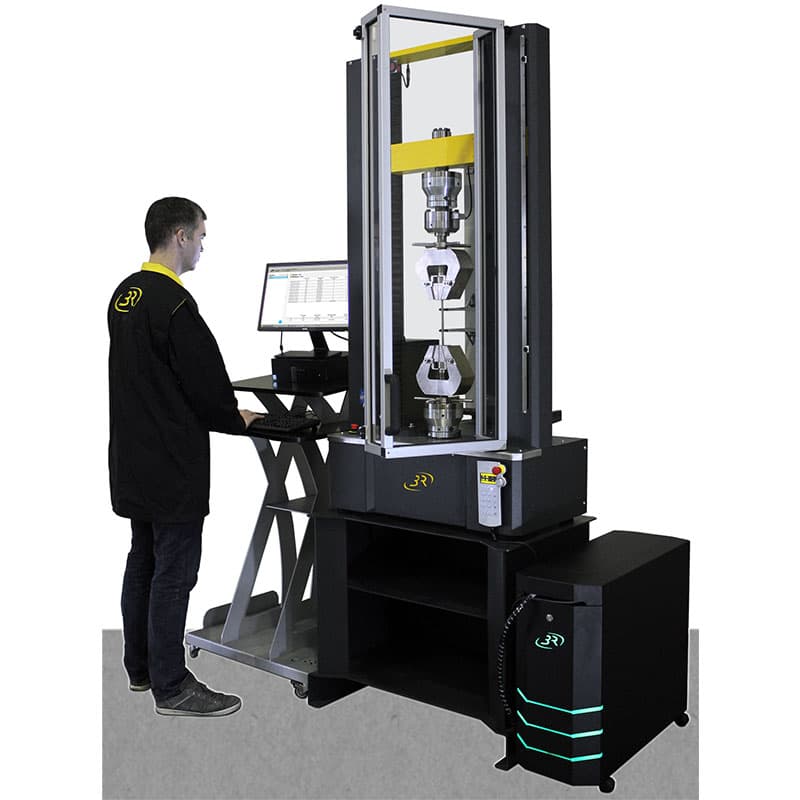

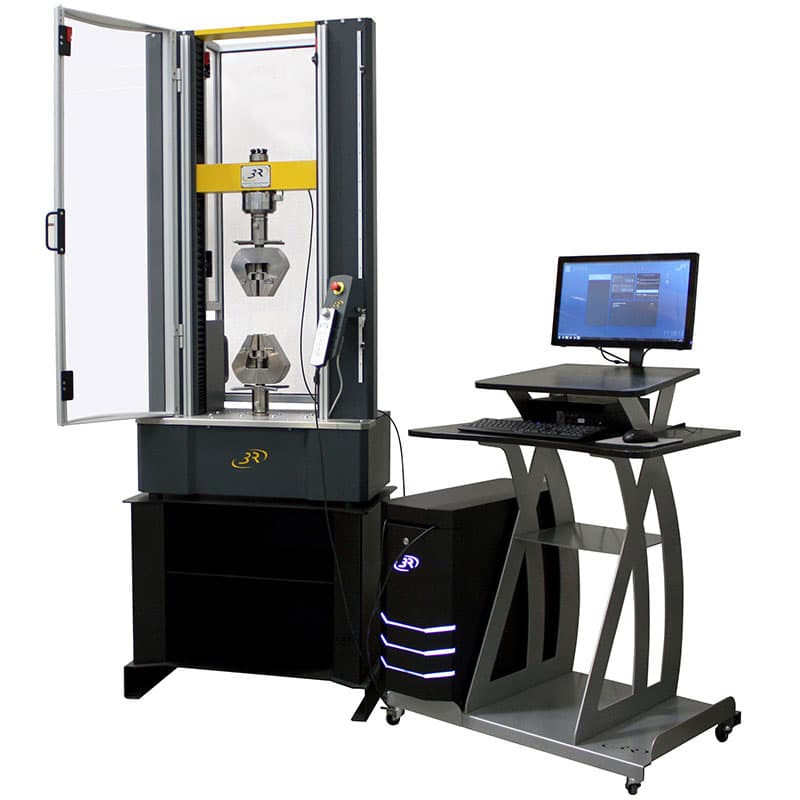

SYNTAX 100 High-Stiffness Universal Testing Machine – 100 kN
Manufactured by 3R Industries
The SYNTAX 100 High-Stiffness Universal Testing Machine (UTM) is built for demanding creep, cyclic, and static tests on fasteners, metals, reinforced plastics, and structural components. It can achieve up to 100 kN force capacity and delivers a force accuracy of ±0.5 %.
The wide crosshead speed range of 0.05 µm/s to ~800 mm/min provides the flexibility to perform tests at varying strain rates, while the rigid dual-column frame and servo-controlled drive deliver highly repeatable results across a wide load range.
Price on quotation
Benefits
- Overview-column frame and servo-controlled drive deliver repeatable results across a wide load range.
- Axial stiffness ≈150 kN/mm due to dual columns and preloaded ball screws.
- Precision planetary gearbox with reinforced belt and preloaded bearings ensures precise force application.
- 10 million-count force resolution.
- Accuracy to ISO 7500-1. Class 1/0.5 compliance; position accuracy Class 0.2 (ISO 9513).
- Large travel — crosshead travel of ~1200 mm and test width of 450 mm to support a wide range of fixtures. Option to go larger if needed.
- Energy-efficient — operates from a single-phase 230 V supply (~2,150 W consumption), reducing your operational costs and carbon footprint.
- Tensile tester calibration service available.
- Choose from a wide range of universal testing machine accessories, including grips, environmental chambers, and extensometers.
- A full range of load cells from 1N up to the capacity of the frame are available.
Software
This tensile tester comes supplied with comprehensive and user-friendly Synt-X software, enabling operators to move quickly from setup to execution, while ensuring consistency and repeatability. With features like pre-configuration of products and specimens, and automatic generation of customised test reports, it helps users focus on their tests by reducing setup time and minimise operator errors.
The Synt-X test control software is designed, developed, and maintained in-house by 3R’s engineering team, guaranteeing long-term compatibility and continuous improvement for routine production testing, advanced research, and standard-compliant mechanical tests.
Customisable Options
Need more speed, a bigger machine, or a custom-built solution? We understand every testing scenario is unique, which is why all our 3R Industries tensile testing machines can be meticulously crafted to meet your specific testing requirements.
We promise unmatched value and exceptional performance in every unique configuration. Take a look at the 3R Industries UTM catalogue and contact us to let us know your bespoke requirements.
“Engineered in France, Supported in the UK by AML, Built to last!”
Designed for long-term use in lab and production environments, the SYNTAX 100 high-stiffness materials testing machine offers precise control and measurement for a wide range of tests in industries such as paper and packaging, transport and mobility, and textiles.
Tests that can be performed on this instrument include:
- Compression.
- Creep.
- Cyclitic.
- Flexural.
- Hardness.
- Peel.
- Shear.
- Tensile.
- Thermal and climatic.
Standards
ISO 7500, ASTM A370, ASTM C1609/C1609M, and ASTM C273.
Technical Data
| Capacity | 100 kN |
| Frame Stiffness (kN/mm) | 150 |
| Screw Type | Preloaded ball screws |
| Number Of Guidance Column | 0 |
| Number Of Ball Screws | 2 |
| Transmission Type | Gearbox with reinforced belt |
| Bearing Type | Precharged and waterproof, full life greased |
| Accuracy (Class) Load Cell Measurement |
Class 1 (≥0.1% FS) / Class 0.5 (≥0.2% FS) – ISO 7500-1 |
| Crosshead Position Resolution | 0,043 µm |
| Maximum Speed, Max Load | 793 mm/min |
| Minimum Speed | 1,76 µm/min |
| Crosshead Travel Without Load Cell And Interface |
1300 mm |
| Test Width | 450 mm |
| Working Area Height | 296 mm |
| Dimensions | 865 mm (W) x 470 mm (D) x 1805 mm (H) |
| Weight | 350 kg |
| Power Supply | 230 V single phase |
| Power Consumption | 3000 W |
