Rub and Abrasion Tester To BS 3110

The RT4 Rub and Abrasion Tester ensures high levels of repeatability and convenience for testing the durability of inks and coatings on printed materials such as barcode labels, films, finished cartons, and magazines.

This comparative test works by abrading a printed sample against a reference material under known conditions. The results can be used to accurately predict print performance and durability, assess coating and substrate suitability, and improve your packaging’s effectiveness.

The Rub and Abrasion testing machine can be programmed for the required number of cycles, enabling it to be run concurrently with other laboratory tests.

Optional test attachments offer the ability to conduct tests under harsher conditions and can be used to check the solvent resistance or the cure of UV inks.

Benefits

Effective way to test the scuff, marking / rub resistance of cartons, films, and printed materials.

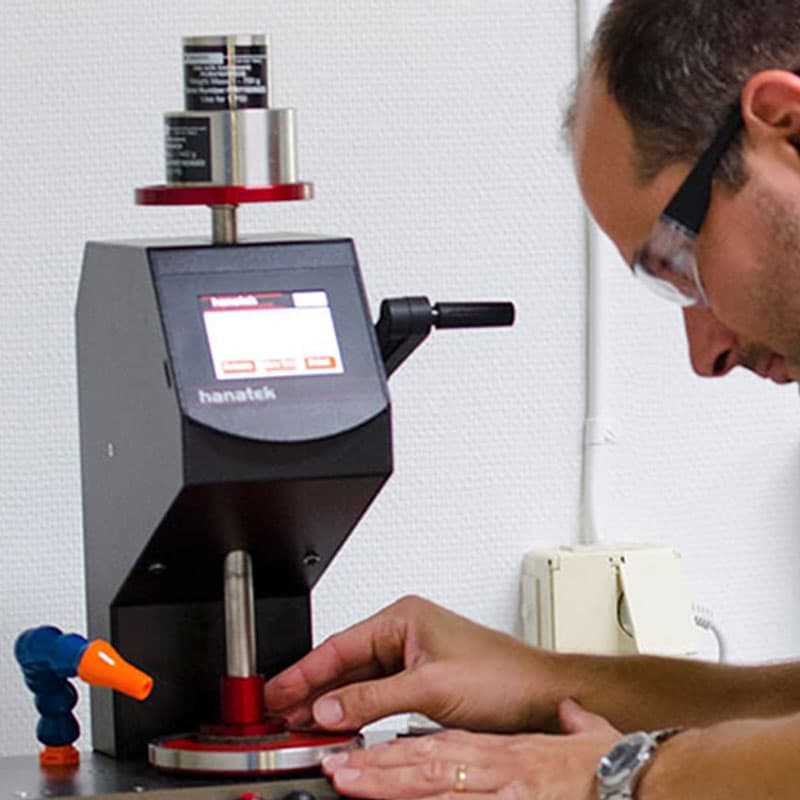

Touch screen operation ensure quick configuration of test parameters.
User-configurable cycle times allow tests to be run unsupervised.

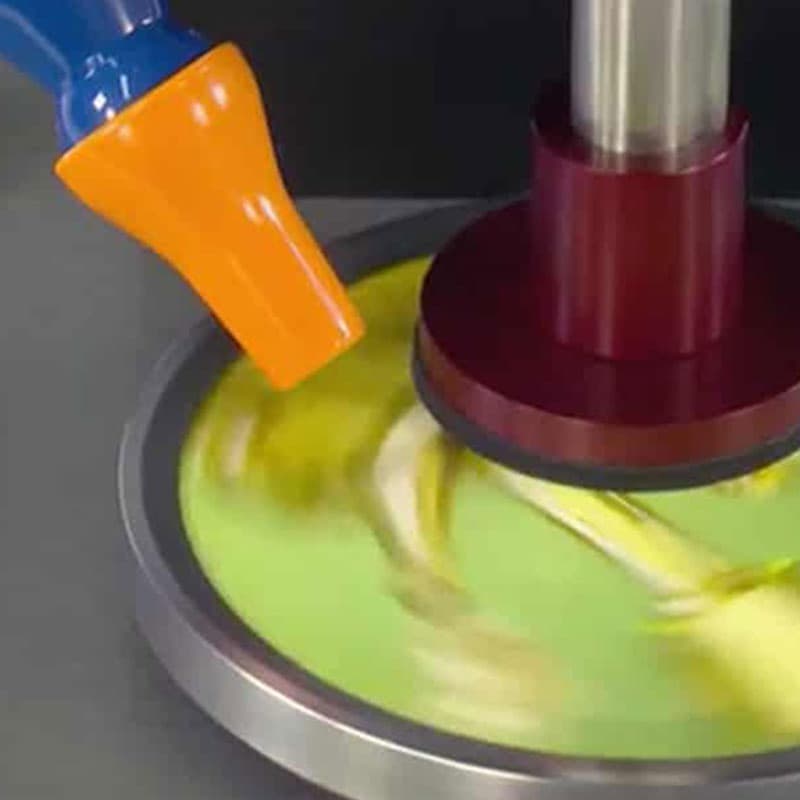

Air feed hose to remove fibres and debris which act as abrasive agents.
Choice of weights to comply with BS3110 methods for measuring rub resistance of paint.
Designed and manufactured in the UK.
Free extended two year warranty.

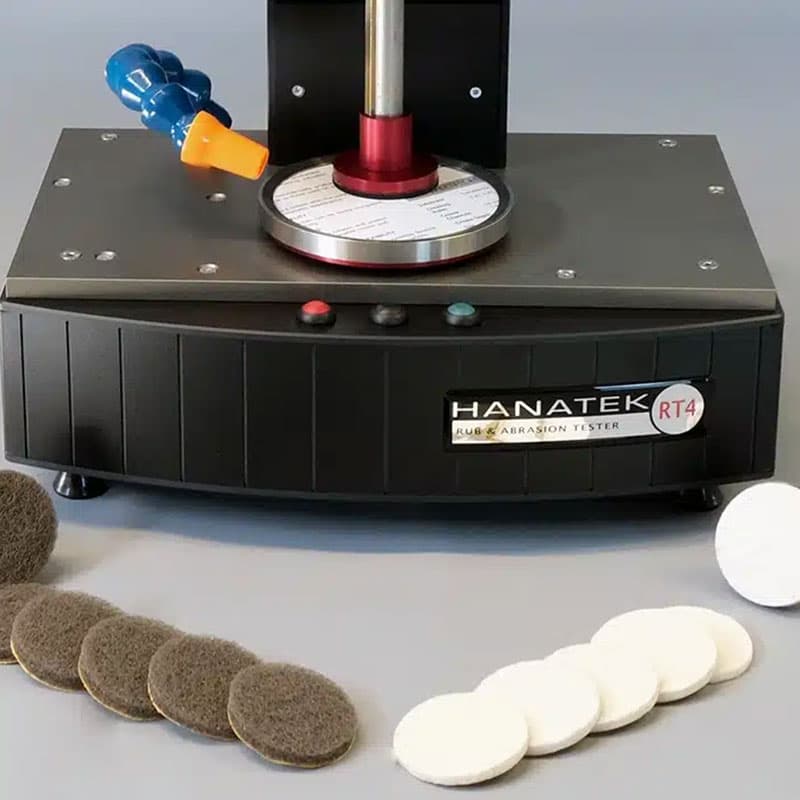

Additional attachments available for abrasion and wet rub tests.
Calibration and repair service available.

The instrument is supplied as standard with the foam measuring head and pad which is suitable for the face to face (printed surface to printed surface) method of testing described in BS3110 and also the printed surface to reference material such as Mellotex.

Alternative measuring heads/pads are available for conducting.

Suitable industries & applications

Industries: Cartonboard, packaging, paints and coatings, paper, plastics, and textiles.

Applications: Barcode labels, films, holograms, magazines, paper, printed cartons, printed packaging, printing inks, security printing (passports, etc).

Weights: 0.5, 1.0, and 2.0 psi pressure.

Power: 110/240V 50/60Hz.

Net weight: 10kg (max).

Packed weight: 16kg.

Dimensions: (H) 420mm x (W) 350mm x (D) 240mm.

Packed dimensions: (H) 500mm x (W) 435mm x (D) 410mm.

Commodity code: 9024 8011.

All specifications, illustrations and descriptions of products are intended to give a general idea of the products available and are subject to alteration. We reserve the right to substitute an alternative of similar specification at our discretion. We have taken all reasonable steps to ensure the accuracy of product information provided, but we accept no liability for any errors or omissions.

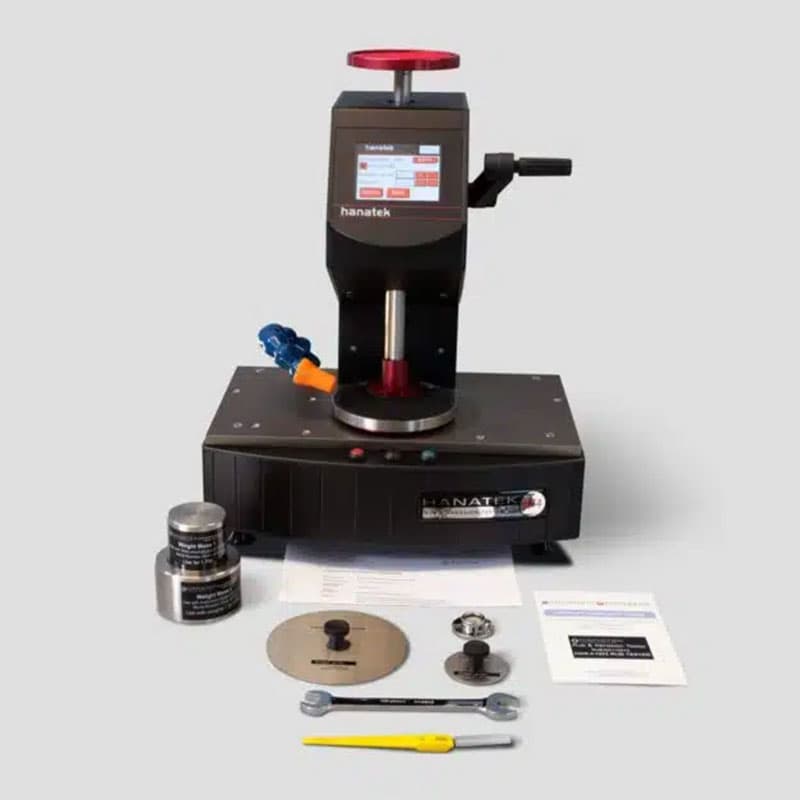

Included accessories

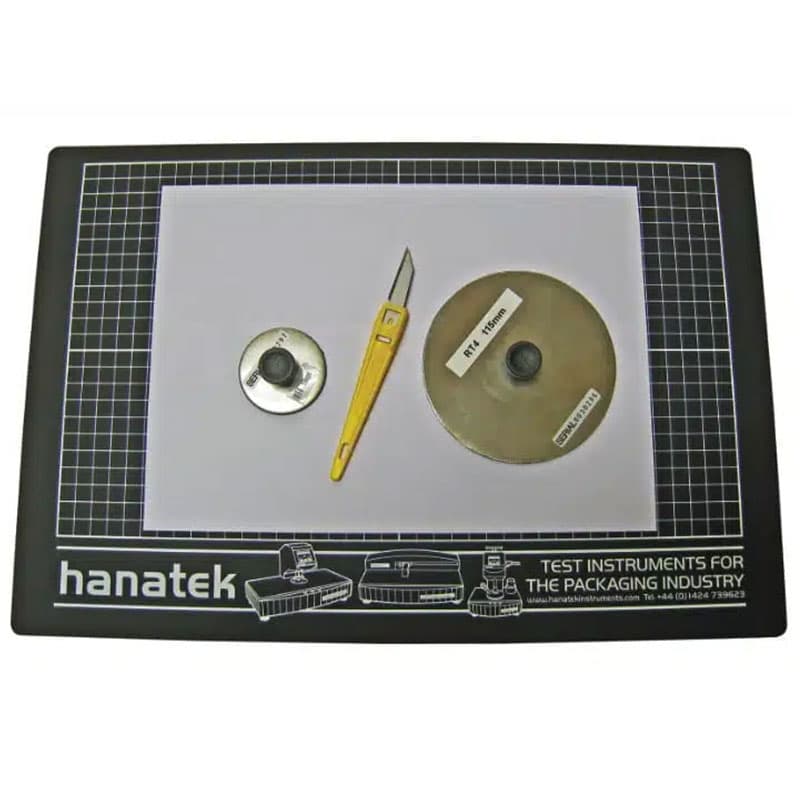

Rub test sample template – 115mm.
Rub test sample template – 50mm.

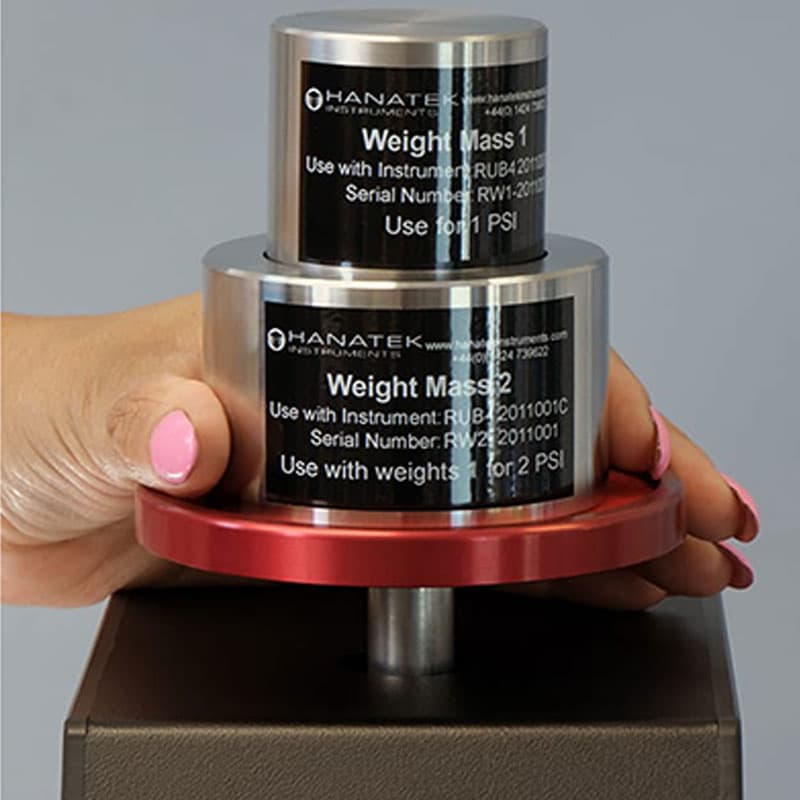

Test weight for 1 psi.
Test Weight for 2 psi (when combined with weight 1).
Standard rub test head.
Bulls eye spirit level.
Mains leads x 3 – EU/US/UK.
DC power pack.
Knife.
Sample clamping ring.
Calibration certificate for instrument, templates, & weight.
Spanner.
