Ray-Ran Auto Cycle Test Sample Notching Cutter
Manufactured by Ray Ran
Cut up to 16 test specimens, 4mm thick, in just 20 seconds with this industry-leading Auto Cycle Notching Cutter. It’s designed to accurately prepare notch profiles in Charpy and Izod Impact specimens to a number of international test standards, including ASTM D256, ASTM D6110, and ISO 179.
Enjoy accurate control at the touch of a button, with a notching cutter speed range from 350 rpm to 2500 rpm. This Izod and Charpy v notch cutting device is also fitted with micro height adjustment, notching depth cutter control, and a sample setting gauge to ensure the notch depth is on-point every time.
Price on quotation
Benefits
- Ideal when you need to produce stress-concentrating notch profiles in Charpy and Izod Impact specimens.
- Multiple notching cutting wheel profiles available (see Models & Accessories)
- Custom-built adaptive microprocessor control unit ensures that your feed and v notch cutter speeds enable optimum performance.
- Easily control the cutter speeds ranging from 350 to 2500 rpm.
- Quick auto-return feature ensures the vice is always in the correct place for loading and unloading of test specimens.
- Integrated membrane keypad enables you to adjust the cutting parameters, then store them in the notching cutter’s memory.
- Easy to read LCD screen.
- Traverse speed range 0.06 mm/rev to 1.0 mm/rev.
- Metric and imperial traverse speeds units.
- Carry out your v notch cutter work safely thanks to the polycarbonate guard with an electrical interlock, which encloses the working area.

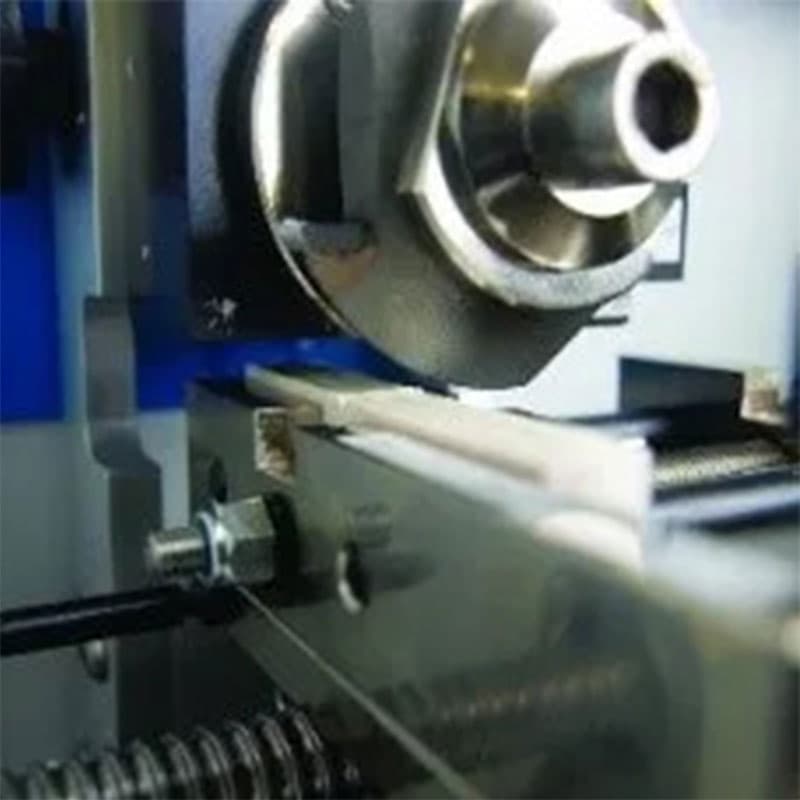

- Dual tooth notching cutter wheels are tungsten carbide tipped, optically ground and diamond lapped to close tolerances and reduce the cutter load on the sample.
- Anti-vibration guide rail system optimises profile accuracy.
- Easy clean removable waste tray.
- Emergency stop button.
- Supplied with a product user manual and CE declaration certificate.
- 1 year return to base warranty.
Applications & Materials
Applications: Impact Testing, Sample Testing, Strength Testing.
Materials: Aluminium, Composites.
Standards
ASTM D256, ASTM D6110, ISO 179, ISO 180, ISO 2818.
Technical Data
Net weight: 15kg.
Width: 54cm.
Depth: 33cm.
Height: 25cm.
Technology: Advanced dedicated microprocessor control.
Display: Easy to read LCD.
Usability: Touch membrane keypad.
Memory capability: Feature included.
Notching cutter speed range: 350 rpm to 2500 rpm.
Traverse speed range: 0.06mm/rev to 1.0mm/rev.
Speed units: Metric and imperial traverse speeds.
Stability: anti-vibration linear motion slide.
Sample capability: Multi-sample loading.
Notch capability: Notch depth comparator plus notch depth gauge block.
Cleaning: Easy clean removable waste tray.
Safety features: Polycarbonate safety guard plus emergency stop button.
Locking device: Electrical interlock.
Manual: Product user manual included.
Certification: CE declaration certificate.
Warranty: One year return to base warranty.
The most commonly used cutter wheel profile is the 0.25mm radius V notch. However, we can also supply you with notching cutter wheel profiles of 0.1mm and 1.0mm radius, as well as 0.8mm and 2.00mm. ‘U’ notch wheels are available too — please contact us if you require further information.
