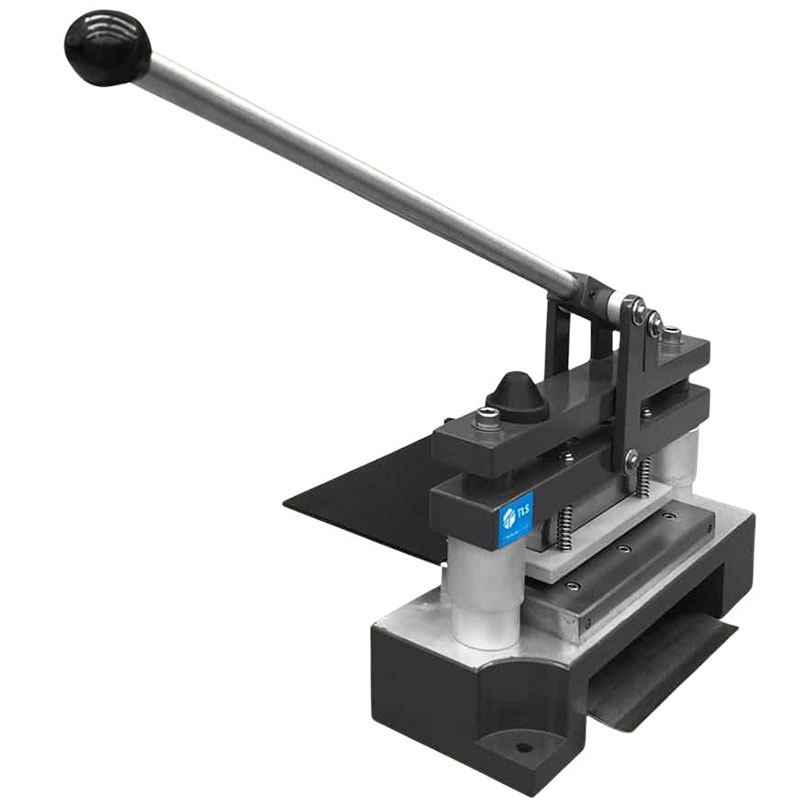

MP Series Manual Punch Die Press
Manufactured by Techlab Systems

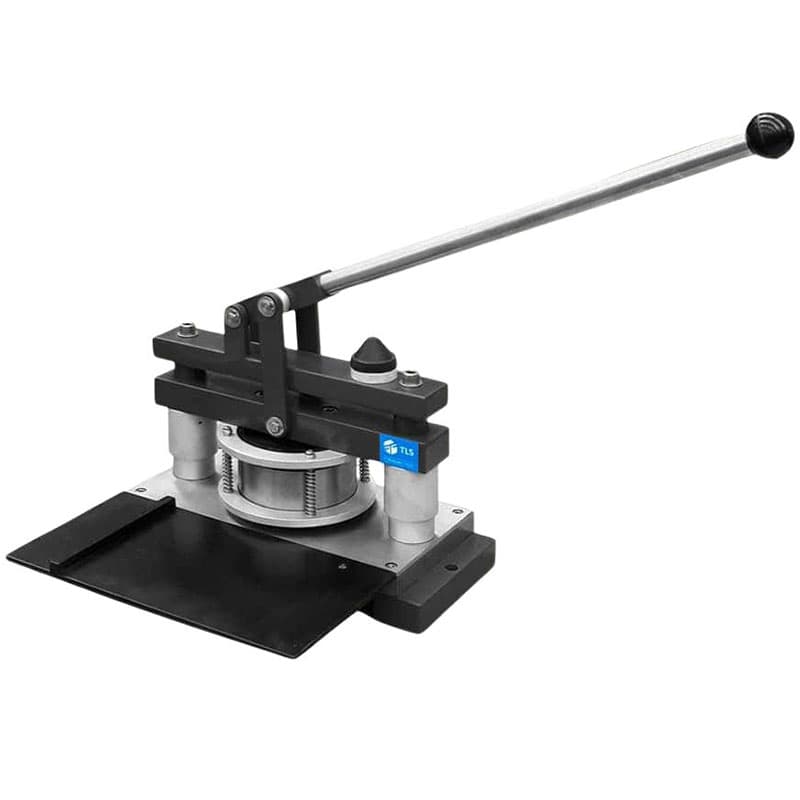

The MP Series Manual Punch Die Press is used for cutting regular or circular precision samples with high accuracy precision and under conditions of international standards for tensile, RCT, CMT, CCT, and CLT tests on paper, cardboard, and aluminium foils.

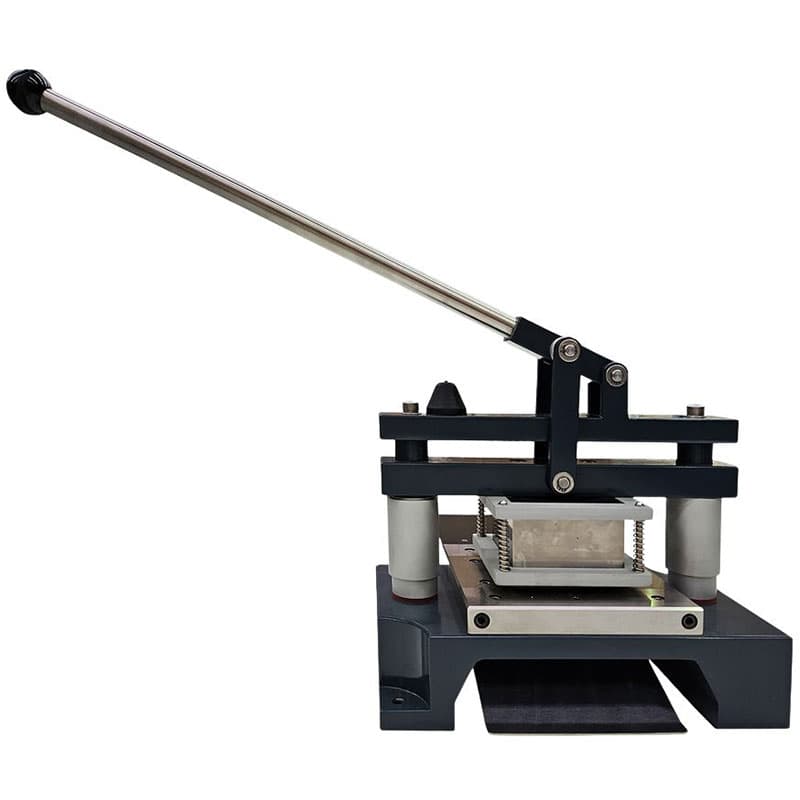

It’s controlled by a lever, which has a length and a push system with a small force to cut quickly. Five different models are available, all with different cutting dimensions to suit various materials and testing standards.
Price on quotation
Benefits

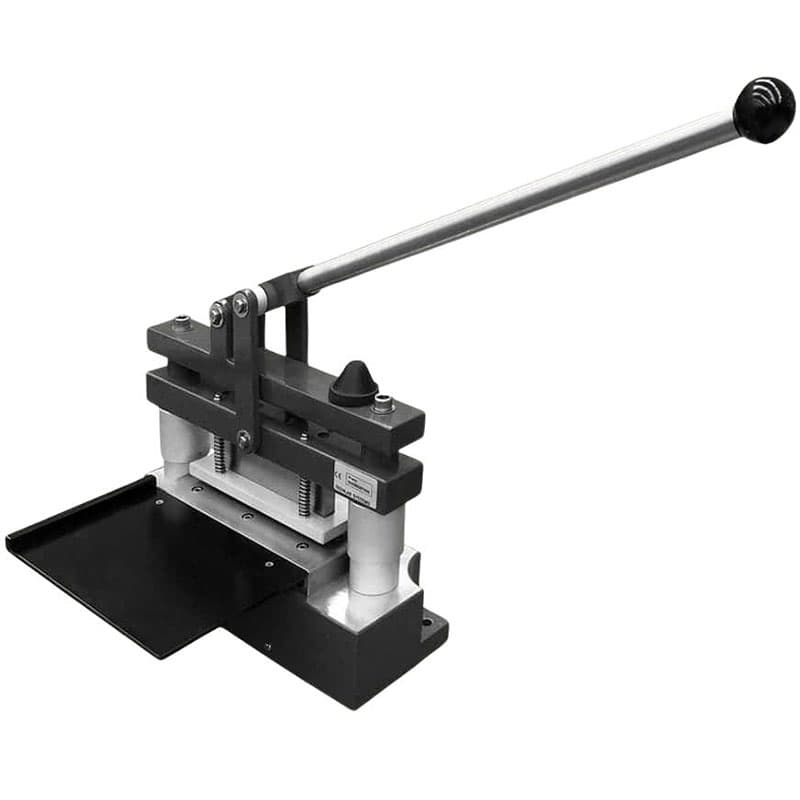

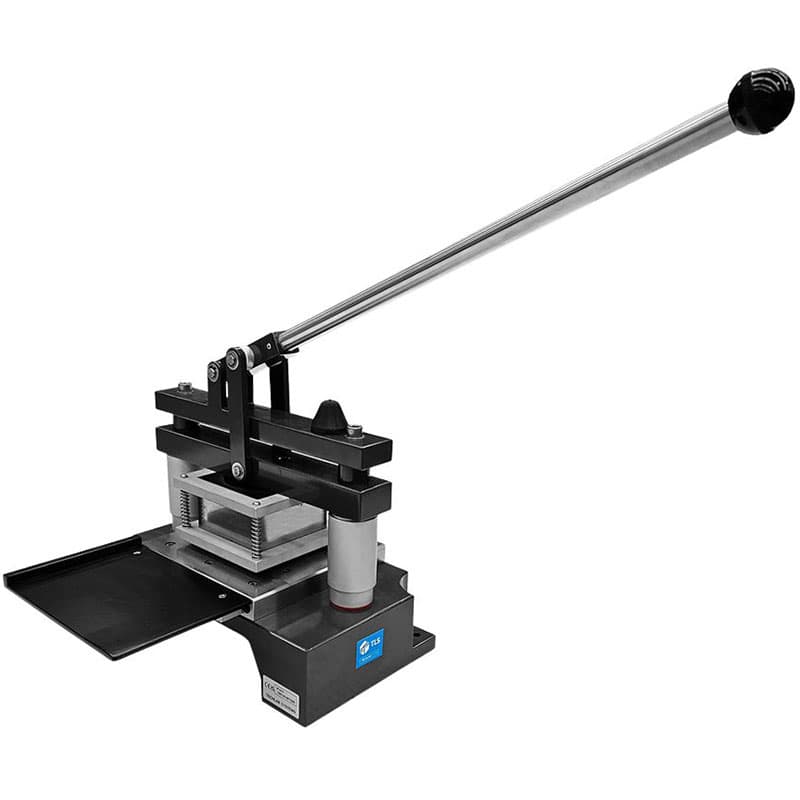

- Equipped with a platform located on the left side, which allows cutting samples by sliding them in the same cutting plane, facilitating cutting with greater precision.
- Robust design.
- Mobile platform system with a self-adjusting spring to press and hold the samples in place.
- Cut sample collection tray keeps testing organised and improves efficiency.
- CE marked.
- Models MP-10, MP-1010, MP-15, and MP-25 presses are equipped with an inclined platform underneath the blades so the already cut samples can slide — this way they can be easily extracted.

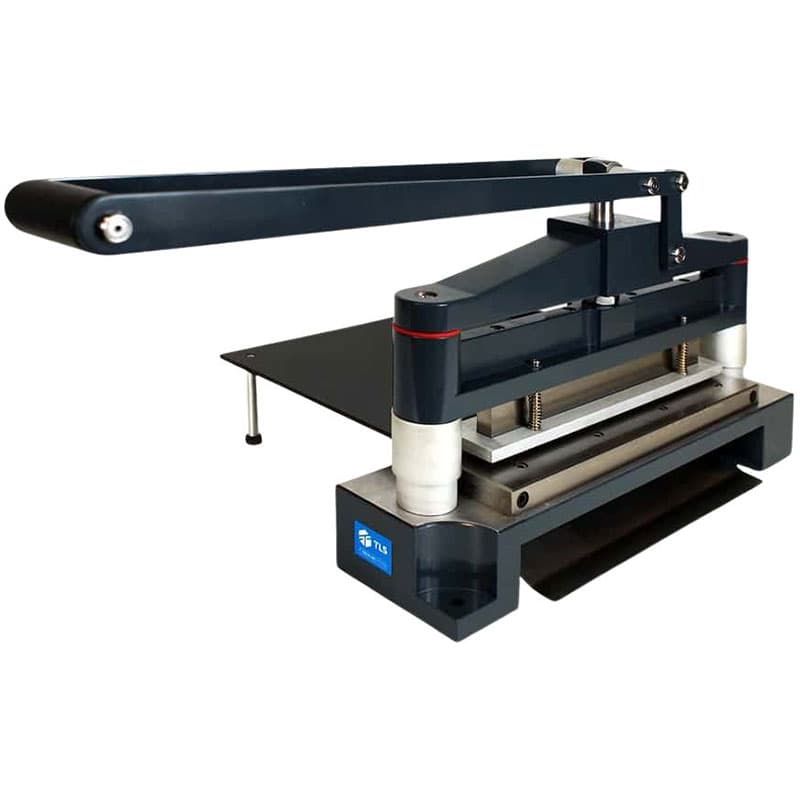

- Model MP-15 and MP-25 presses, due to their long cutting length of 300 mm, use a special double lever system, requiring very little effort to cut the samples.
- Aluminium foil.
- Card.
- Paper.
Standards
AS/NZ 1301.4SO RP, BS 7325, DIN 53134, DIN 53143, DIN 54518, ISO 1924-2, ISO 3035, ISO 3037, ISO 3781, ISO 7263, ISO 9895, ISO 12192, ISO 12625-6, TAPPI T410, TAPPI T494, TAPPI T809, TAPPI T822, TAPPI T843, SCAN P27, and SCAN P34.
| Model | Cutting size (mm/cm2) | Precision Cut (mm) | Cutting Size (Inches) | Dimensions Press Mounted (W x D x H) | Net Weight (kg) | Packaging Dimensions (W x D x H) | Gross Weight (kg) |
| MP-10 | 12.7mm x 152.4mm | ±0,1 mm | 1/2 x 6 in. | 330mm x 360mm x 400mm | 20 | 650mm x 450mm x 480mm | 37 |
| MP-15 | 15mm x 300mm | ±0,1 mm | 0.59 x 11.81 in. | 380mm x 500mm x 650mm | 27 | 730mm x 380mm x 550mm | 48 |
| MP-25 | 25mm x 300mm | ±0,1 mm | 0.98/1 x 11.81 in. | 380mm x 500mm x 650mm | 27 | 730mm x 480mm x 550mm | 50 |
| MP-100 | 100cm2 | ±0,1 mm | 15.50 inch2 | 300mm x 360mm x 400mm | 24 | 570mm x 370mm x 340mm | 40 |
| MP-1010 | 10cm x 10cm (100 cm2) | ±0,1 mm | 3.94 x 3.94 in. (15.50 inch2) | 300mm x 360mm x 400mm | 24 | 570mm x 370mm x 340mm | 40 |
