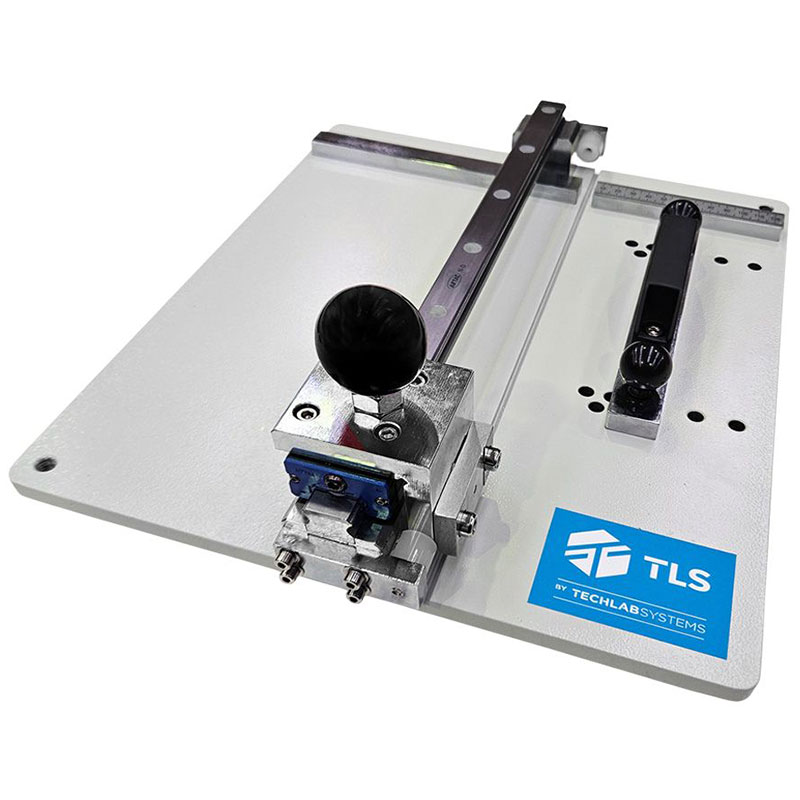

Manual Sample Cutter ECT/PAT – Model CM

Name: AML Instruments
Address: Eco One, Highcliffe Business Park, The Cliff, Lincoln, Lincolnshire, LN1 2WE, GB
Telephone: 01522 789375
Price range: Premium

Manufactured by Techlab Systems

This robust, manual sample cutter is designed to prepare corrugated board samples, so you can effectively perform ECT and PAT compression tests on the sample crush tester.

It enables you to easily and safely cut samples with thicknesses up to 12mm, while the six cutting widths mean the device can be configured to cut corrugated board samples either 25mm, 32mm, 38.1mm, 50.8mm, 80mm, or 100mm wide.

Get a Quote

Demo Video Ask a Question Data Sheet

Suitable Applications

Cardboard boxes.
Corrugated cardboard.
Cardboard packaging.

Standards

APPITA/AS 1301.430s, TAPPI T 821, FEFCO No. 11, APPITA/AS 1301.444s, ISO 3037, ISO 13821, DIN 53149, SCAN P33, TAPPI T 811, TAPPI T 823, TAPPI T 838, TAPPI T 839, and FEFCO No.8.

Technical Data

Equipment Dimensions: 425mm x 330mm x 140 mm.
Net Weight: 15kg.
Packaging Dimensions: 500mm x 440mm x 290 mm (W x D x H)
Gross Weight: 22kg
