Laboratory Furnaces 1100°C

Laboratory Furnaces 1100°C

  • Lift-up furnace door for efficient use of work space
  • Good furnace temperature stability and uniformity
  • Fast heating and cooling time due to low thermal mass construction
  • Low power consumption for reduced running costs and energy savings
  • For use up to 1100°C.
  • Most models ex stock

The Laboratory Furnaces are designed for materials testing, heat treatment, ceramic and stoneware samples firing and ashing (models with chimney). And are used in laboratories, educational institutions, ceramic studios and in industry for thermal processing.

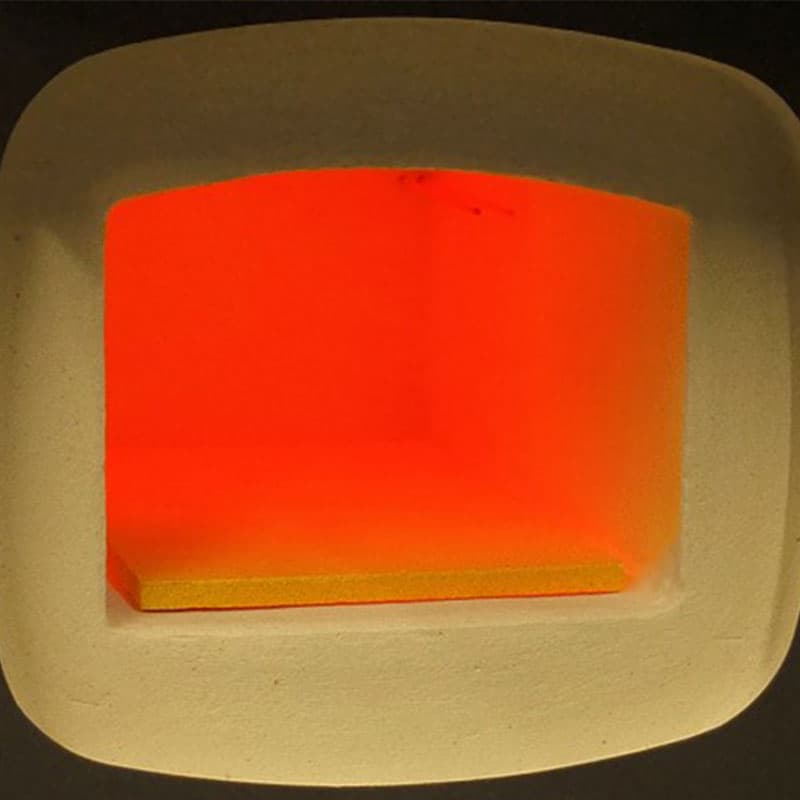

The furnace chamber is made of high thermal efficiency vacuum-formed ceramic fibre, with heating elements embedded in four sides and a ceramic base tile to protect the fibre base from wear.

An Omron E5CC digital PID temperature controller is fitted as standard and provides precise temperature control with good stability and minimal over-shoot. Other instruments can be fitted to order, to give features such as timed programs, remote communications and data recording (see data sheet).

A chimney is optionally available, fitted to the rear of the furnace, and is recommended for processes producing fumes or giving off carbon (e.g. ashing or burn-off operations).

Over-temperature protection is fitted as standard on the 22 and 39 litre models. For the 3, 8.2 and 13 litre models, an optional external over-temperature protection unit can be supplied to protect the furnace or the load from exceeding its maximum temperature. This must be used if the furnace is left unattended (e.g. over night), in order to comply with the Health & Safety Executive directive.

Our laboratory furnaces are available with optional UKAS (ISO17025) calibration of the temperature control system or also with a 5-point thermal survey of the chamber volume.

We offer models customised to meet AMS 2750D/F (aerospace & automotive specification). For customisation to this specification or others please contact us.

See data sheet for full details of all accessories and customisations available

Looking for a higher temperature furnace see our  1300°C Furnace

Laboratory Furnace Calibration & Service

Ongoing calibration and service by AML Instruments.

We offer a complete calibration service for all your instrumentation & test equipment

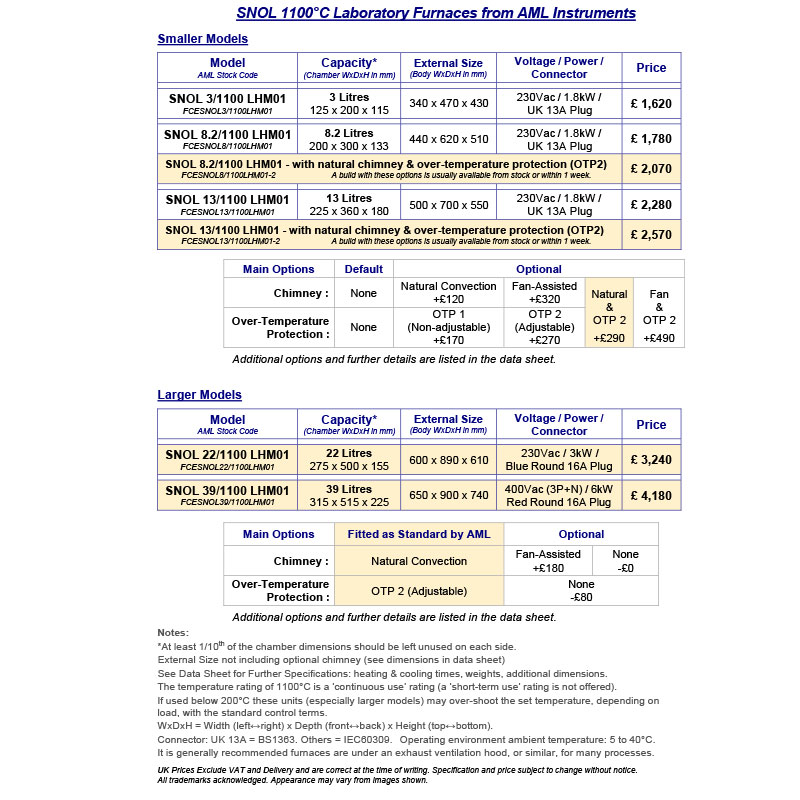

Laboratory Furnaces Models

Smaller Furnace Models



Model

AML Stock Code

Capacity

(WxDxH in mm)

External Size

(WxDxH in mm)

Voltage / Power / Connector

Price

SNOL 3/1100 LHM01 3 Litres

340 x 470 x 430

230Vac / 1.8kW /

£1,080

FCESNOL3/1100LHM01 125 x 200 x 115 UK 13A style Plug
SNOL 8.2/1100 LHM01 8.2 Litres

440 x 620 x 510

230Vac / 1.8kW /

£1,240

FCESNOL8/1100LHM01 200 x 300 x 133 UK 13A style Plug
SNOL 13/1100 LHM01 13 Litres

500 x 700 x 550

230Vac / 1.8kW /

£1,580

Larger Furnace Models



Model

AML Stock Code

Capacity

(WxDxH in mm)

External Size

(WxDxH in mm)

Voltage / Power / Connector

Price

SNOL 22/1100 LHM01 22 Litres

600 x 890 x 610

230Vac / 3kW /

£2,340

FCESNOL22/1100LHM01 275 x 500 x 155 Blue Round 16A Plug
SNOL 39/1100 LHM01 39 Litres

650 x 900 x 740

400Vac (3P+N) / 6kW

£2,940

FCESNOL39/1100LHM01 315 x 515 x 225 Red Round 16A Plug

Note: At least 1/10th of the chamber dimensions should be left unused on each side. External Size not including optional chimney. If used below 200°C these units (especially larger models) may over-shoot the set temperature, depending on load. Weights exclude options and transportation packaging.   WxDxH = Width (Left-right) x Depth (Front-back) x Height (Top-bottom).
