Laboratory Furnaces 1100°C

Manufactured by SNOL

Designed for materials testing, heat treatment, ceramic samples firing and ashing (models with chimney), our precision 1100°C laboratory electric muffle furnaces are used in laboratories, educational institutions, workshops, and in industries for thermal processing.

Capable of reaching temperatures up to 1100°C, an Omron E5CC digital PID temperature controller is fitted as standard, ensuring precise temperature control with good stability and minimal over-shoot.

The chambers are made of high thermal efficiency vacuum-formed ceramic fibre, with heating elements embedded in the sides, top and bottom of the chamber, providing heat from four directions.

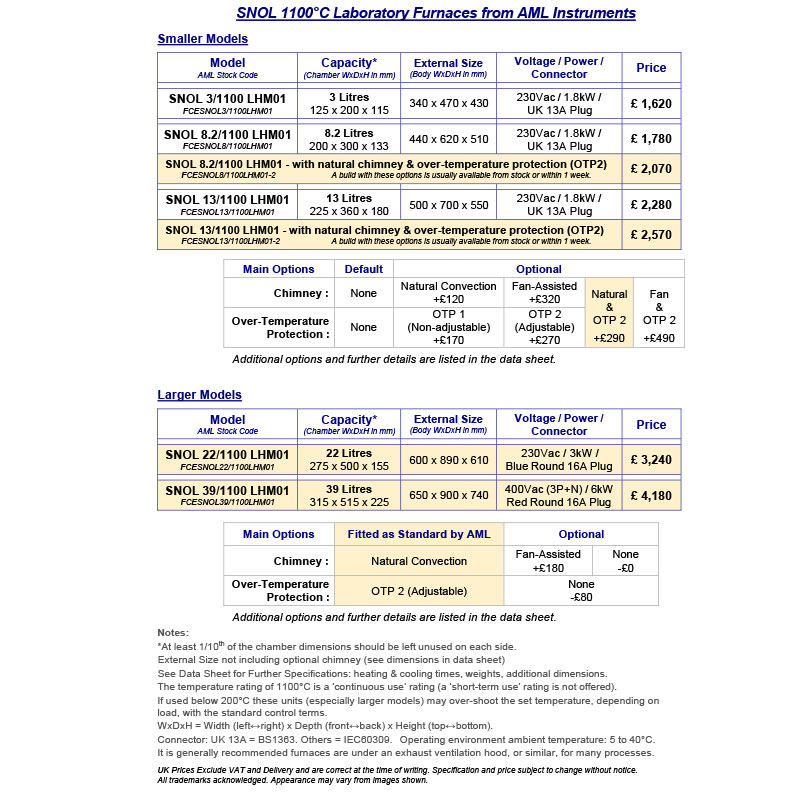

A chimney, fitted to the rear of the furnace, is recommended for processes producing fumes or giving off carbon (e.g. ashing or burn-off operations). A chimney is included as standard on larger models (see Models & Accessories Tab).

Important: Most models are ex stock.

Benefits

Counter balanced lift-up door for efficient use of workspace and greater safety.
Door safety interlock switch.
Hard-wearing ceramic tile protects the fibre base from wear.
Good stability and uniformity.
Fast heating and cooling time due to low thermal mass construction.
Low power consumption for reduced running costs and energy savings.
Sustainable design means all parts are accessible, serviceable and replaceable should the need arise.
One year warranty as standard.
Independent over-temperature protection is available. This is recommended if the furnace will be running while unattended (e.g. overnight); to meet Health & Safety and some insurers’ requirements.
Adjustable over-temperature protection (OTP2) can be set to a temperature to protect load placed in the chamber, in addition to the furnace itself. This is included as standard on the larger 22 and 39 litre models.
Optional UKAS (ISO 17025) calibration of the temperature control system is available, as well as multi-point thermal surveys of the chamber volume.
We also offer models customised to meet AMS 2750G (aerospace & automotive heat treatment specification), complete with UKAS (ISO 17025) calibration and thermal survey meeting NADCAP requirements.
A metal tray is optionally available for each model and is recommended to protect the furnace from spills or debris produced by some processes.
Higher temperature 1300°C laboratory fibre muffle furnace also available.

Please see Data Sheet for full details of all accessories and customisations available.
