Laboratory Fibre Muffle Furnaces 1300°C

Laboratory Fibre Muffle Furnaces 1300°C

  • Lift-up door for efficient use of work space and better safety
  • Over-Temperature Protection as standard, for better safety
  • Good stability and uniformity
  • Fast heating and cooling time due to low thermal mass construction
  • Low power consumption for reduced running costs and energy savings

Laboratory Fibre Muffle Furnaces 1300°C , designed for materials testing, heat treatment, ceramic and stoneware samples firing.

The muffle furnaces can be used in laboratories, educational institutions, ceramic studios and industrial laboratories.

The chamber is made of high thermal efficiency vacuum-formed ceramic fibre, with heating elements exposed on ceramic tubes on both sides and a ceramic tile to protect the fibre base from wear.

These 1300°C muffle furnaces are the next temperature up from our 1100°C muffle furnace range and are therefore also normally suitable for replacing 1200°C muffle furnaces.

Optional traceable and UKAS calibration including 5 point survey.

  • Lift up door for efficient use of work space and reduced safety risk for operators (from the hot door insulation)
  • Fan-assisted chimney as standard
  • Over-Temperature Protection as standard
  • Fast heating time due to low thermal mass construction
  • High thermal efficiency vacuum formed ceramic fibre chamber

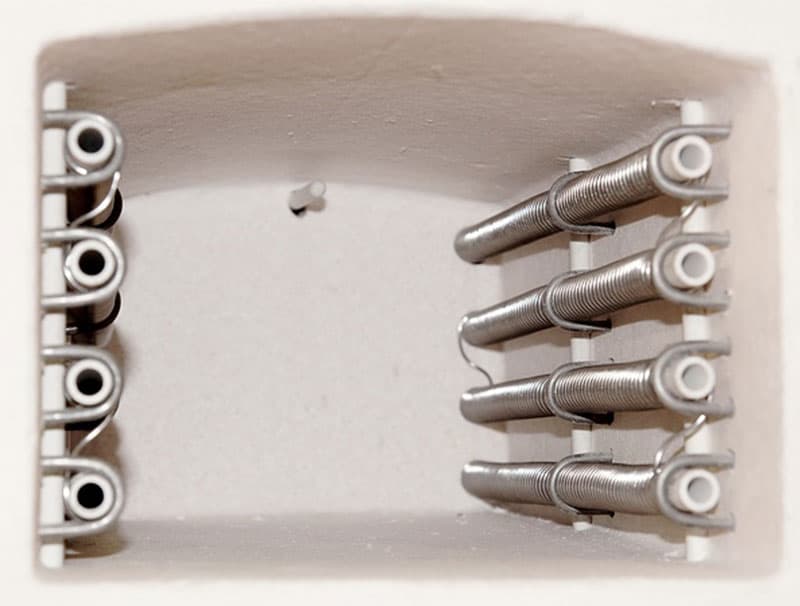

  • Heating elements exposed on ceramic tubes on both sides
  • High quality thermal insulation materials used throughout
  • Ceramic bottom plate to protect fibre from wear
  • Low power consumption for low running costs due to energy savings
  • Good stability and uniformity

Laboratory Fibre Muffle Furnaces standard temperature controller

  • Eurotherm PID temperature controller, featuring:
    • Displays measured value & setpoint
    • Basic Ramp+Dwell Program as standard
    • Large clear display
    • Auto-tuning

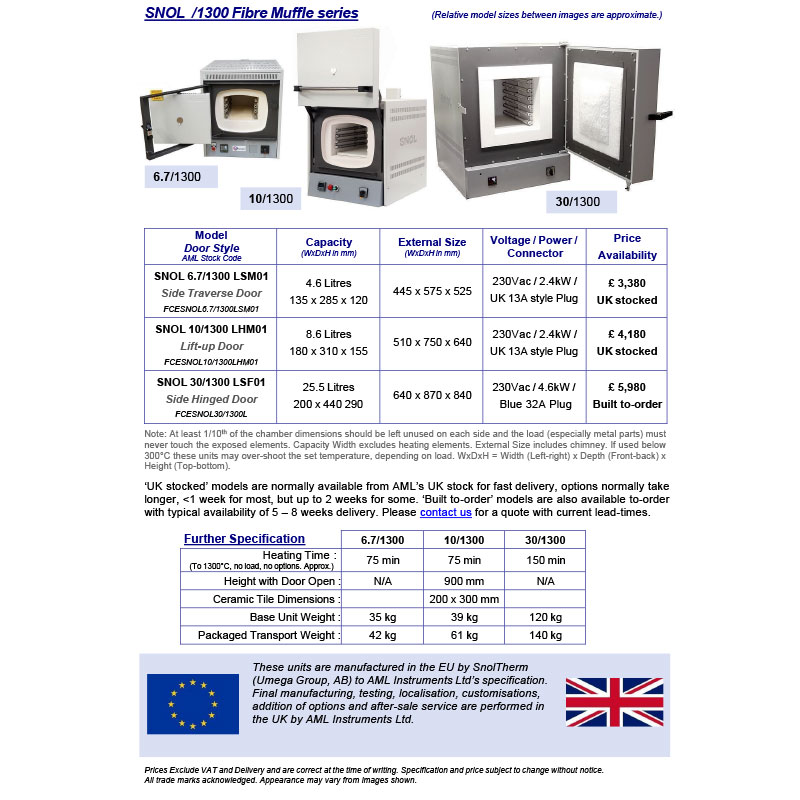

See data sheet for further options for the controller and for the furnace.

Laboratory Muffle Furnace Calibration & Service

Ongoing calibration and service by AML Instruments. for all makes and model of furnace small and large.

We offer a complete calibration service for all your instrumentation & test equipment
