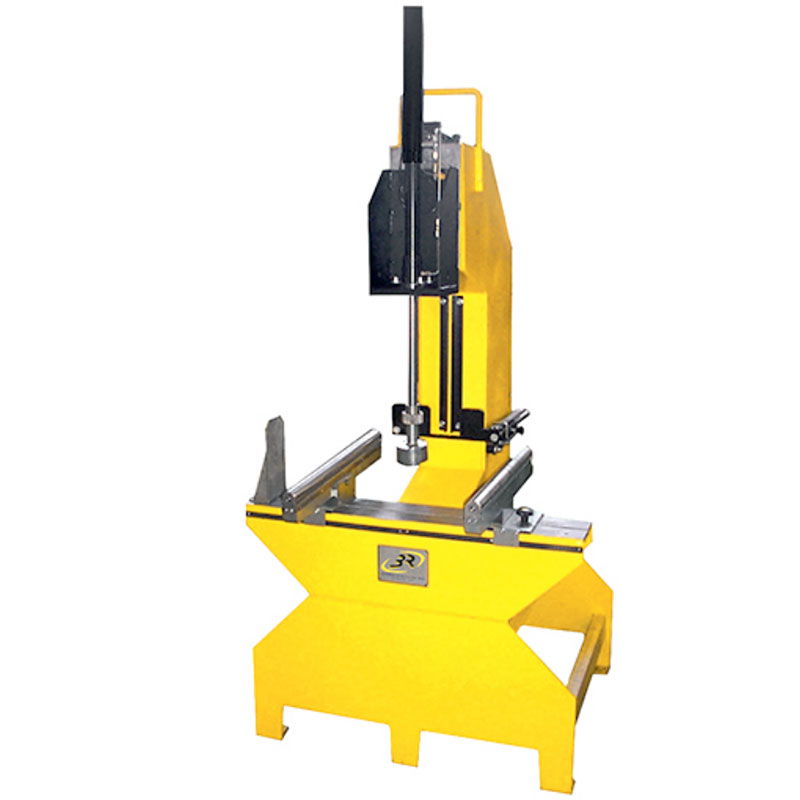

Gooseneck-Type Flexural Testing Machine – 5-12-30-50 kN
Manufactured by 3R Industries
Available in four different capacities, this gooseneck-type flexural strength testing machine enables easy testing from low to medium testing force with exceptional accessibility to the specimen.
Securely fixed on a very rigid table, our Gooseneck frames offer the operator superb working ergonomics, allowing the placement of even heavy elements without the risk of back pain.
Price on quotation
Benefits
- After machining, the gooseneck frames are milled at the cylinder and test table connection plates to correct any misalignment due to welding.
- Flexural frames are equipped with double-acting cylinders, facilitating the return to rest position at the end of the test.
- Designed in accordance with European standards (EN 15037-2, EN 1340, EN 1339, EN 490, EN 15435).
- Work table has perforated feet offering ease and safety during installation in the laboratory, using a simple pallet truck.
- Long stroke double-acting cylinder (see table under Specification tab), working at 400 bar.
- Hydraulic stroke: 300 mm (or 350 mm).
- Cylinder fitted with low-friction seals and Teflon guidance.
- Automatic return at end of test.
- Specific support parts for tiles, infill blocks, curbs, slabs, etc.
Industry: Civil engineering testing labs.
