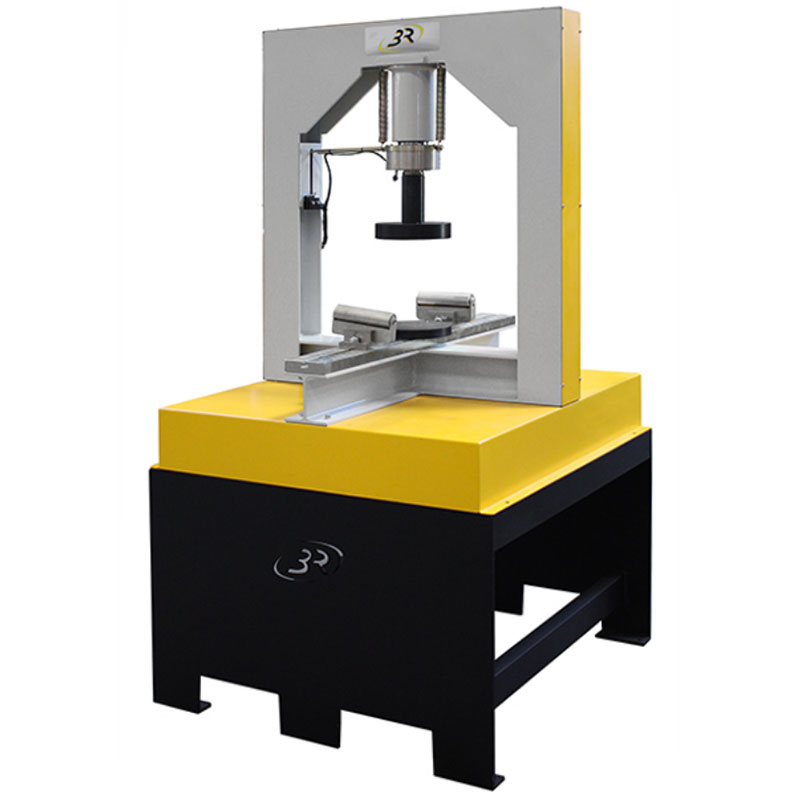

Gantry-Type Flexural Testing Machine – 100-200 kN

Name: AML Instruments
Address: Eco One, Highcliffe Business Park, The Cliff, Lincoln, Lincolnshire, LN1 2WE, GB
Telephone: 01522 789375
Price range: Premium

Manufactured by 3R Industries

This gantry-type flexural testing machine for concrete enables testing of higher capacity elements with a structure designed for high loads and standardised tests.

It’s available in both 100 kN and 200 kN (driven by a double-acting cylinder operating at 400 bar).

Tests that can be performed with this machine:

Flexural test on prisms 10 x 10 x 40 cm.
Flexural test on kerbs.
Flexural test on slabs.
Other support dimensions on request.

Industry: Civil engineering testing labs.

Get a Quote

Ask a Question

Benefits

300 mm stroke, fitted with low-friction seals.
Automatic cylinder return after each test, clearing the chamber for the next test.
Meets EN12390-5 standards.

Test chamber height: 350 mm.
Dimensions: Approx. L 1 000 mm x D 1 675 mm x H 1 750 mm.
Net weight: Approx. 400 kg.
Testing force: 100 kN or 200 kN.
