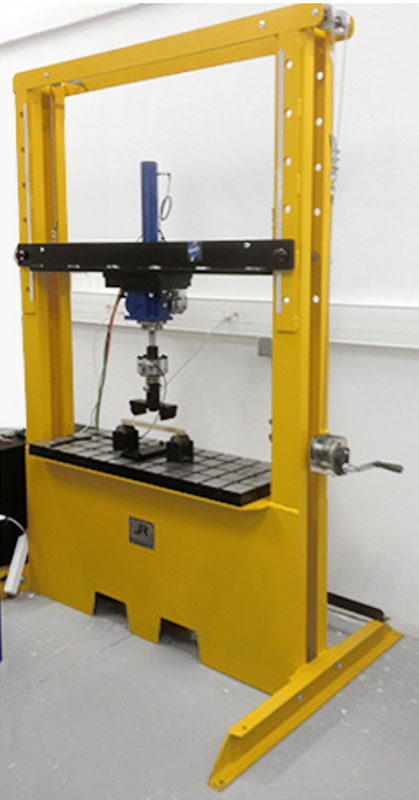

Gantry-Type Electromechanical Flexural Testing Machine – 50 kN
Manufactured by 3R Industries
This electromechanical flexural test machine has a high-strength, gantry-type mechanically welded frame and an electromechanical actuator stroke of 350mm. The actuator is adjustable via sliding connections.
It’s used in civil engineering labs to perform simple bending, free tests (ramp-hold), tilting, and pull-out tests on wood specimens, timber beams, and structural wood components.
Price on quotation
Benefits
- Enables precise flexural tests on various wooden elements, with a stable and easy-to-implement configuration.
- Ball screw electromechanical actuator, load 50 kN, stroke 350 mm.
- Measurement range: from 0.5 to 50 kN accuracy 1%, repeatability 0.5% – Class 1.
- Load sensor: Capacity 50 kN (accuracy 0.5%).
- Grooved work table — length 1200 mm and width 400mm.
- Test chamber height: Approximately 1000 mm under sensor and without supports..
- Excellent specimen accessibility and working height (height approximately 400 mm).
- Force Capacity: 50 kN.
- Test Chamber Height: approximately 1000 mm under sensor and without supports.
- Distance Between Columns: 1300mm.
- Approximate Dimensions (L x D x H): 1430 mm x 1200 mm x 2.027 mm.
- Net Weight: approximately 600 kg.
- Grooved Work Table: Length 1200 mm and width 400mm.
