ELDY 100 Fatigue Testing Machine
Manufactured by Life Testing Machines

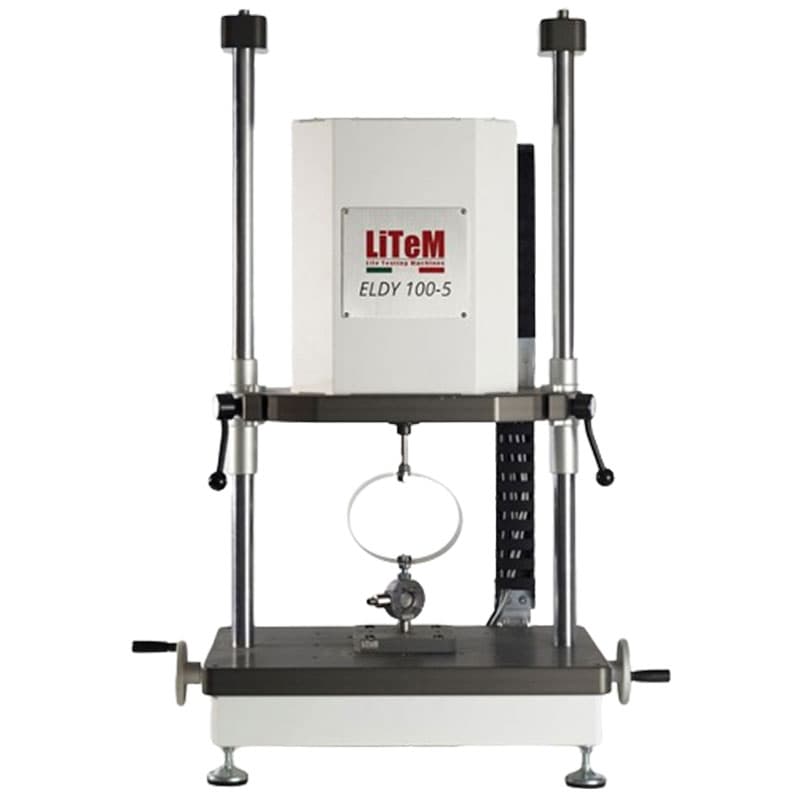

The ELDY 100 electrodynamic fatigue testing system has a maximum force capacity of 100 N and is designed to run static, semi-static, dynamic, and fatigue assessments of electronic components, plastics, rubber, etc.
Its motors are equipped with low-noise, voice coil technology and powered by a single-phase supply, ensuring excellent force and displacement accuracy, combined with high test frequencies.
The intermediate plane, with electrical handling, allows a convenient and easy approach of even the most complex samples.
Price on quotation
Benefits
- Can be installed in test laboratories, research and development divisions, and product/process control centres.
- No need for oil or compressed air, helping lower operating costs, ensuring minimal maintence, and keeping your working environment clean.
- RTC 9001 Controller, command software, and a force transducer are included as standard, facilitating superior test frequencies and micrometric precision in displacement measurements.
- Simple and intuitive software interface.
- Movable cross strut and an expansive work surface simplify the process of securing and manipulating complex samples, ensuring ease of use without compromising on precision or capability.
- Allow various types of configurations to be achieved in terms of actuator strokes.
- Temperature control with air cooling precisely and safely controls thermal cycles.
- Test frame with double column and electric intermediate plane for convenient sample approach.
- Stroke from 1 to 30 mm.
- High number of compatible accessories.
- 3D Printing (Plastics and Metals): Assessing the durability and structural integrity of 3D-printed materials.
- Biological Materials: Providing insights into the characteristics and resilience of various biological materials.
- Biomedical: Offering precise assessment capabilities for medical devices and biological materials.
- Composite Materials: Testing the strength and endurance of composite materials for high-performance applications.
- Electronic Components and Hardware: Ensuring the reliability of electronic components through detailed testing.
- Fabrics and Tissues: Analysing the physical properties of fabrics and biological tissues under stress.
- Plastics and Rubber: Evaluating the resilience and properties of plastics and rubber in demanding conditions.
- R&D: Supporting extensive research and development efforts with versatile testing options.
| TECHNICAL SPECIFICATIONS | eu | Electrodynamic ELDY 100N – ELDY 10N | ||||
| S-2 | S-5 | S-10 | S-20 | S-30 | ||
| Dynamic force | N | 100N (ELDY 100) – 10N (ELDY 10) | ||||
| Static force | N | 150N <30 seconds (ELDY 100) – 15N <30 seconds (ELDY 10) | ||||
| Continual static force | 100N indefinite time (ELDY 100) – 10N indefinite time (ELDY 10) | |||||
| Test frequency | Hz | 0.01 – 50 | ||||
| Actuator stroke | mm | +/- 1 | +/- 2.5 | +/- 5 | +/- 10 | +/- 15 |
| Force transducer | N | Available versions from 250N to 500N (ELDY 100) – 50N to 100N (ELDY 10) | ||||
| Sensor accuracy | 1/1000 F.S. | |||||
| Actuator | Electrodynamic with voice coil technology – oil free | |||||
| Operating temperature | °C | 10 – 40 °C | ||||
| Dimensions | mm | [A] 668 x [B] 474 x [C] 1493 | ||||
| Work area dimensions | mm | [WW] 440 x [WH] 710 | ||||
| Weight | Kg | 150 | ||||
| Power supply | AC 110-240V 50-60Hz | |||||
Components included in the kit
- ELDY frame with LVC actuator.
- RTC 9001 controller.
- Software RTC 9000.
- PC, monitor 27″, mouse, keyboard.
- Force transducer with top mounting plate.
- Base interface plate.
- Sensor, power supply, connection cables.
- User manual, calibration reports.
- One day of distance training or at the LiTeM site.
Available accessories
| Code | Component |
| A-TS-300 | Base with T-Slot grooves 300×250 |
| A-CP-10 | Compression test plates |
| A-AV-10 | Quick connection couplings |
| A-MG | Manual clamps |
| A-SC-100 | Safety cage type A-SC-100 |
