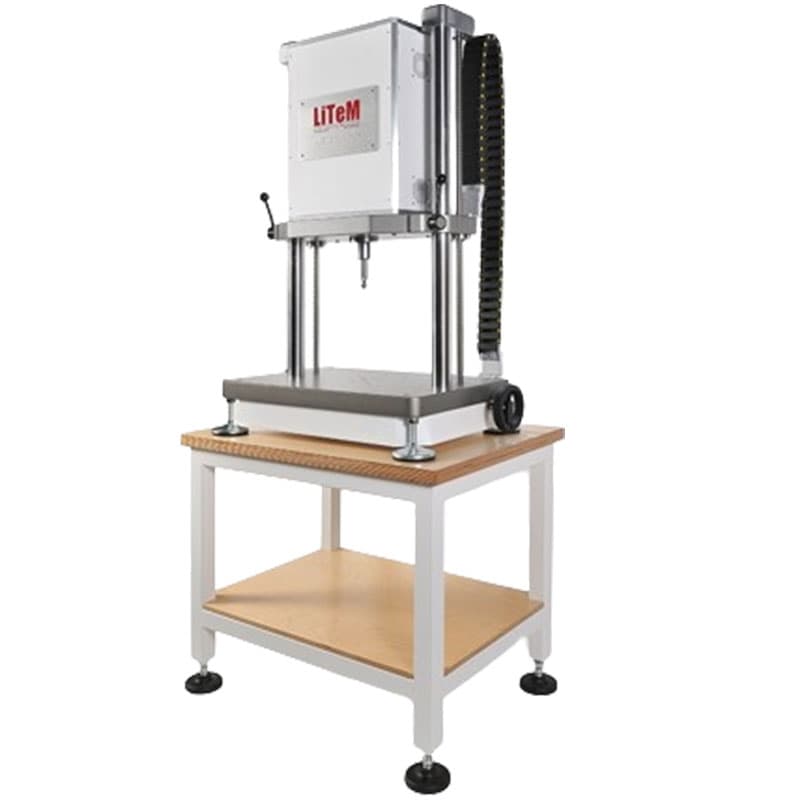

ELDY 10 Fatigue Testing Machine
Manufactured by Life Testing Machines
The ELDY 10 electrodynamic fatigue testing system is designed to conduct static, semi-static, dynamic, and fatigue assessments of materials such as composites, fabrics, plastics, and rubber.
Its motors are equipped with low-noise, voice coil technology and powered by a single-phase supply, with a maximum force capacity of 10 N.
The RTC 9001 Controller, RTC 9000 command software, and a force transducer are included as standard. This combination ensures exceptional test frequency capabilities and micrometric precision in displacement measurement.
Price on quotation
Benefits
- Can be installed in test laboratories, research and development divisions, and product/process control centres.
- No need for oil or compressed air, helping lower operating costs, ensuring minimal maintenance, and keeping your working environment clean.
- Simple and intuitive software interface.

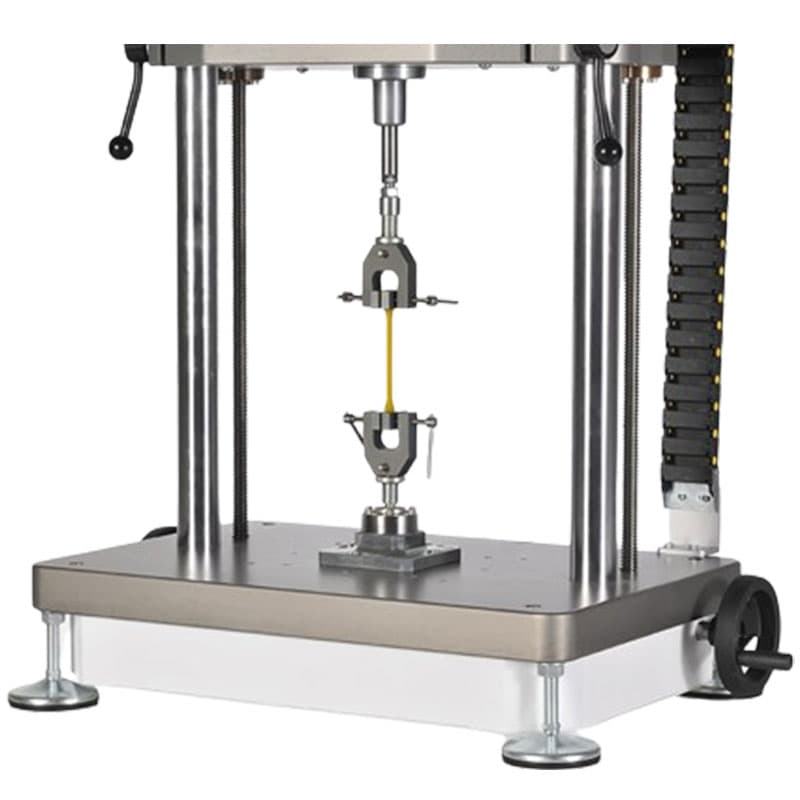

- Movable cross strut and a spacious work surface facilitate the secure attachment and handling of even the most intricate samples.
- Allow various types of configurations to be achieved in terms of actuator strokes.
- Temperature control with air cooling precisely and safely controls thermal cycles.
- Test frame with double column and electric intermediate plane for convenient sample approach.
- Stroke from 1 to 30 mm.
- High number of compatible accessories.
- 3D Printing (Plastics and Metals): Assessing the structural integrity and performance of 3D-printed materials.
- Biological Materials: Assessing the properties and resilience of biological materials under various conditions.
- Biomedical: For precise testing of medical devices and materials.
- Composite Materials: Testing composite materials for durability and strength.
- Electronic Components and Hardware: Determining the reliability of electronic components and hardware through rigorous testing.
- Fabrics and Tissues: Evaluating fabrics and tissues’ tensile strength and flexibility.
- Plastics and Rubber: Evaluating the physical properties of plastic and rubber under stress.
- R&D: Supporting wide-ranging research and development initiatives with versatile testing capabilities.
| TECHNICAL SPECIFICATIONS |
eu |
Electrodynamic ELDY 100N – ELDY 10N |
||||
|
S-2 |
S-5 | S-10 | S-20 |
S-30 |
||
| Dynamic force |
N |
100N (ELDY 100) – 10N (ELDY 10) |
||||
| Static force |
N |
150N <30 seconds (ELDY 100) – 15N <30 seconds (ELDY 10) |
||||
| Continual static force |
|
100N indefinite time (ELDY 100) – 10N indefinite time (ELDY 10) |
||||
| Test frequency |
Hz |
0.01 – 50 |
||||
| Actuator stroke |
mm |
+/- 1 | +/- 2.5 | +/- 5 | +/- 10 |
+/- 15 |
|
Force transducer |
N |
Available versions from 250N to 500N (ELDY 100) – 50N to 100N (ELDY 10) |
||||
| Sensor accuracy |
|
1/1000 F.S. |
||||
| Actuator |
Electrodynamic with voice coil technology – oil free |
|||||
| Operating temperature |
°C |
10 – 40 °C |
||||
|
Dimensions |
mm |
[A] 668 x [B] 474 x [C] 1493 |
||||
| Work area dimensions |
mm |
[WW] 440 x [WH] 710 |
||||
| Weight |
Kg |
150 |
||||
| Power supply |
|
AC 110-240V 50-60Hz |
||||
Components included in the kit
- ELDY frame with LVC actuator.
- RTC 9001 controller.
- Software RTC 9000.
- PC, monitor 27″, mouse, keyboard.
- Force transducer with top mounting plate.
- Base interface plate.
- Sensor, power supply, connection cables.
- User manual, calibration reports.
- One day of distance training or at the LiTeM site.
Available accessories
|
Code |
Component |
|
A-TS-300 |
Base with T-Slot grooves 300×250 |
|
A-CP-10 |
Compression test plates |
|
A-AV-10 |
Quick connection couplings |
|
A-MG |

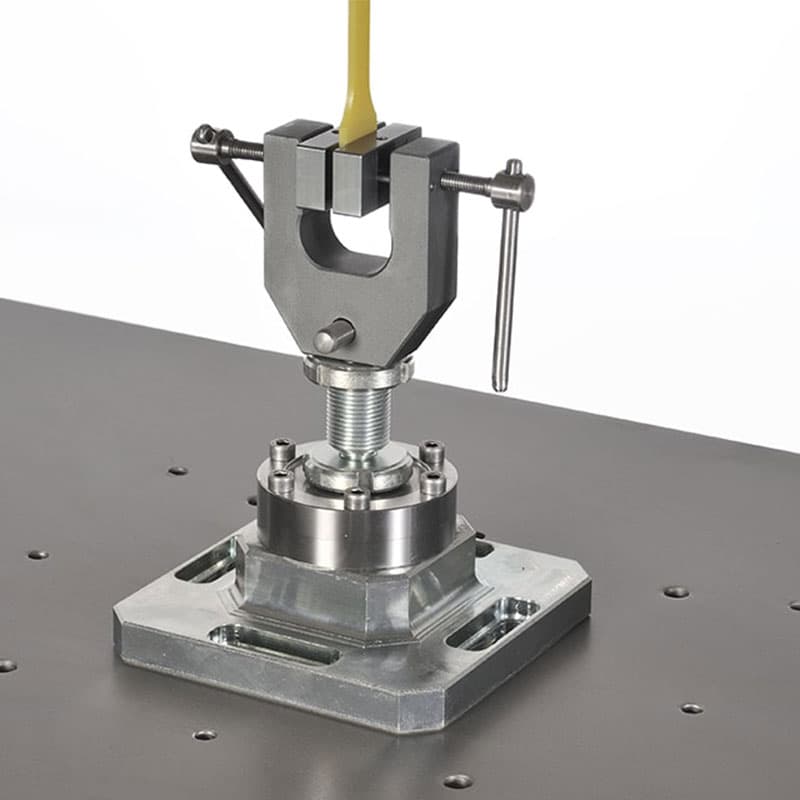

Manual clamps |
| A-SC-100 |
Safety cage type A-SC-100 |
