Cooling Incubators With Extended Temperature Range Series KB PRO

Cooling Incubators With Extended Temperature Range Series KB PRO

Manufactured by BINDER

Suitable for a wide range of applications beyond incubation, including battery testing and freeze-thaw stability testing, the KB PRO series of BINDER cooling incubators offers comprehensive programming options.

It has an expanded temperature range of -20°C to +100°C and low energy consumption thanks to modern inverter cooling technology, helping reduce your operating costs over time.

Available in six different capacities, this powerful refrigerated incubator benefits from proven compressor technology and a stainless steel inner chamber to ensure long-term failsafe operation.

Benefits

  • Reliable and powerful thanks to innovative temperature control technology.
  • Smart: signal triangle with light-up status display and an ergonomic control terminal with touchscreen program controller.
  • Proven APT.line™ preheating chamber technology.
  • Energy-efficient cooling with modern inverter cooling unit.
  • Cooling with climate-neutral R-290 refrigerant.
  • Door heating to prevent condensation.
  • Adjustable fan speed.
  • Robust housing design with HIT sandwich technology.
  • Durable stainless steel inner chamber.
  • Inner doors made of metal oxide-coated safety glass.

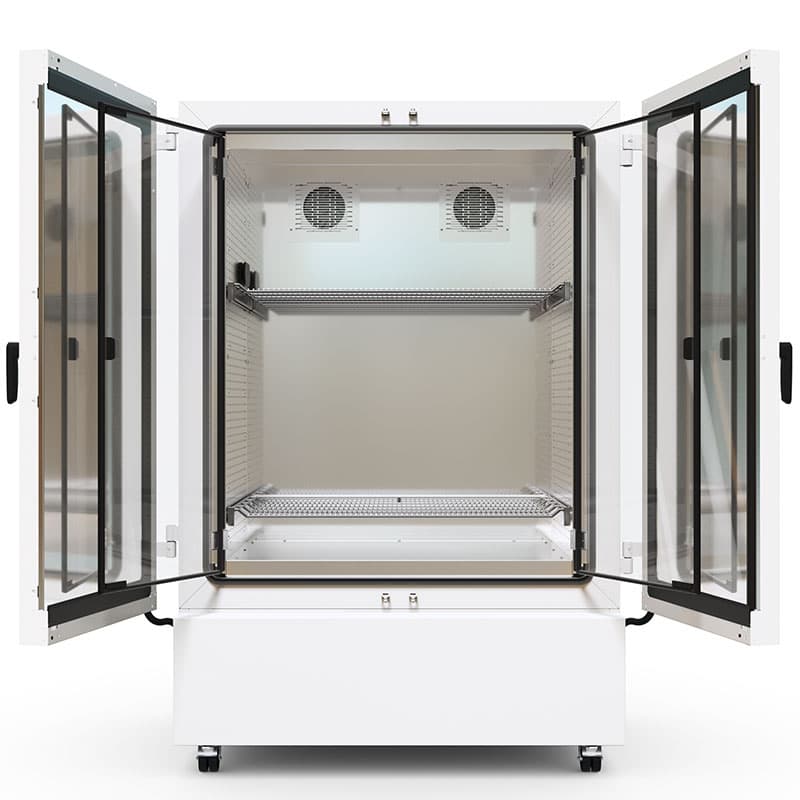

  • Two racks made of stainless steel (for models from 260 with telescopic rails).
  • Large access port with silicone plug.

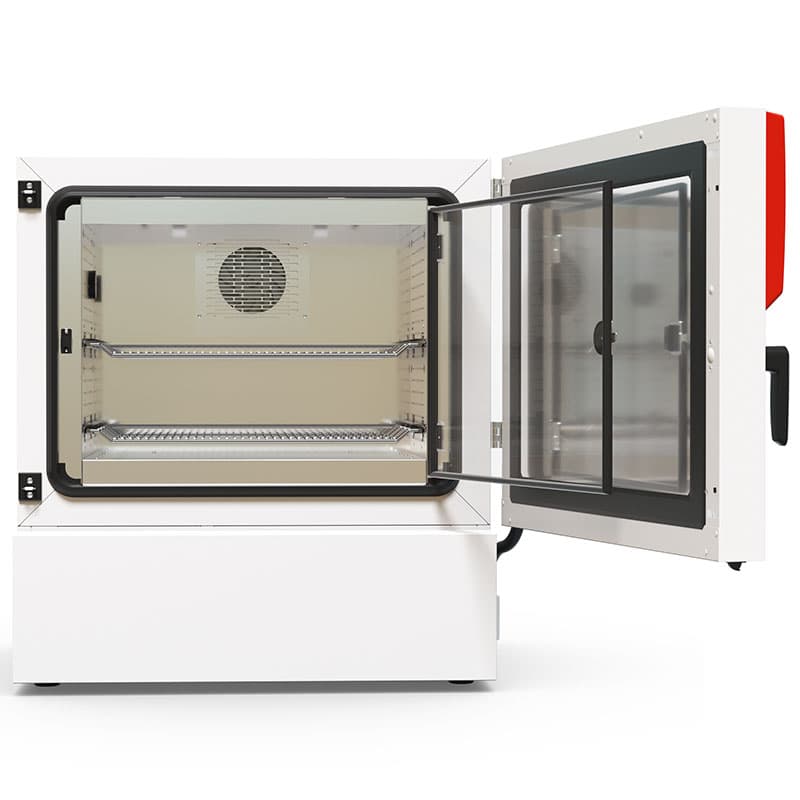

  • Tabletop units (up to model 130) are stackable with stacking adapter.

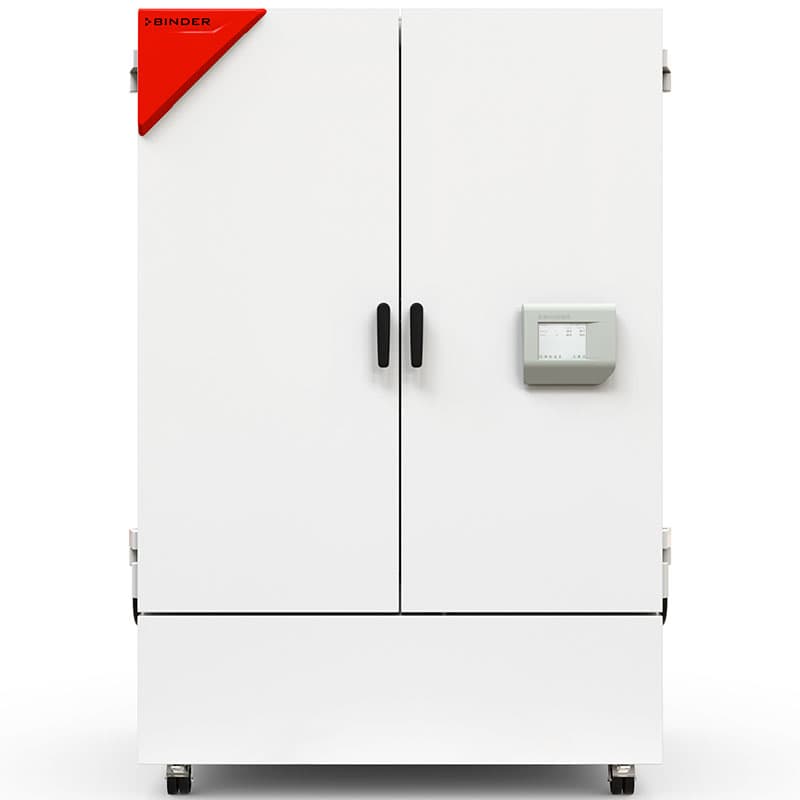

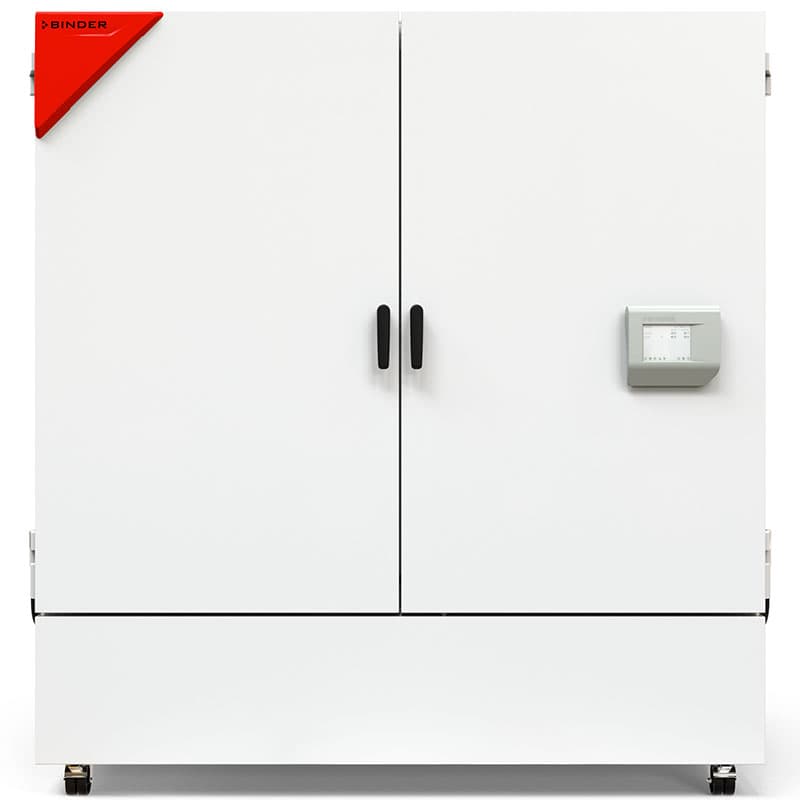

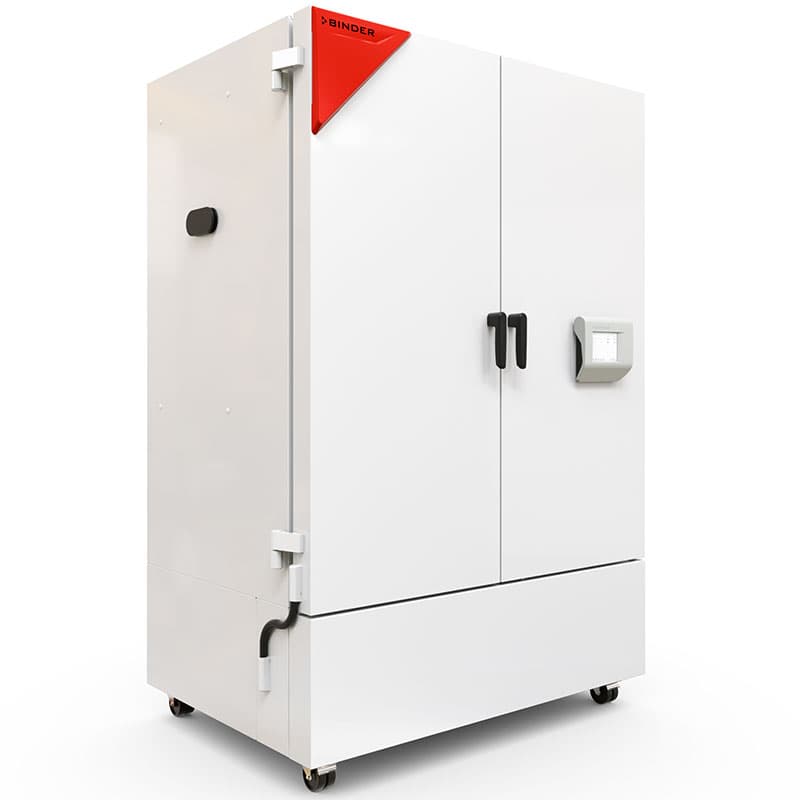

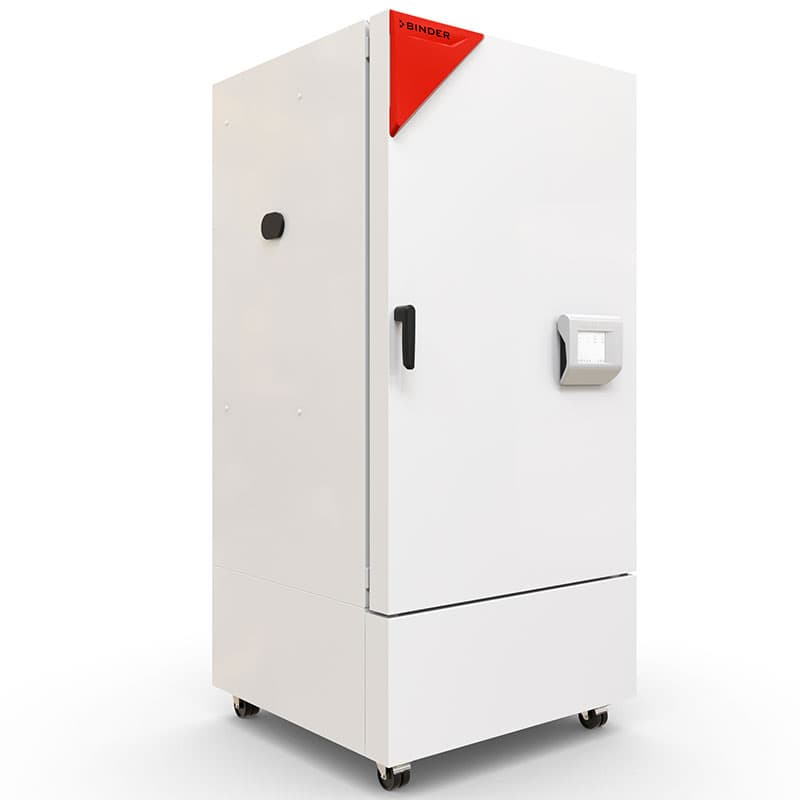

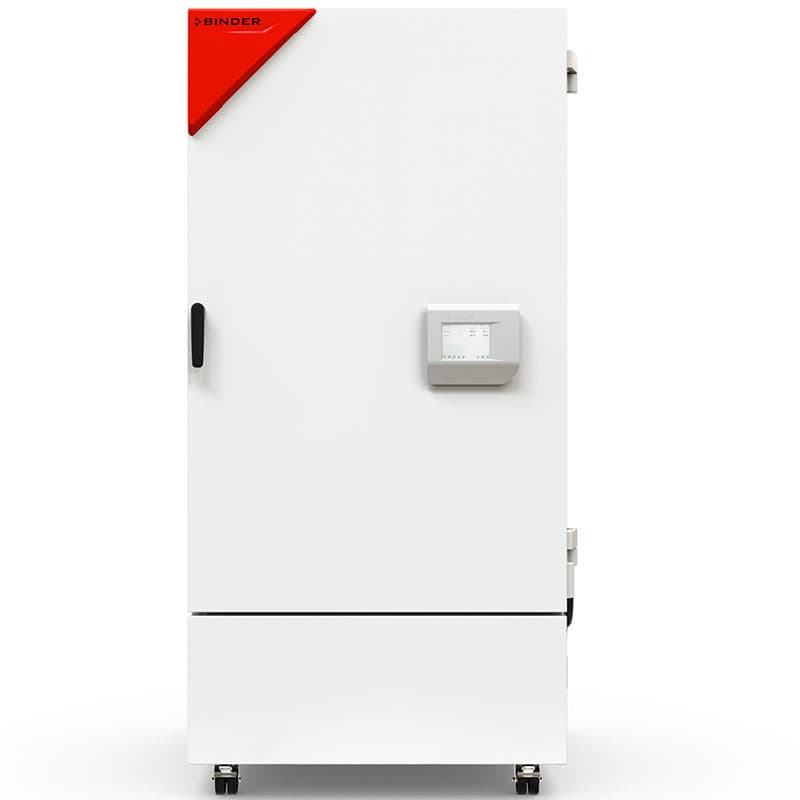

  • Floor-standing units (from model 260) feature robust twin casters, with brakes at the front.
  • Intuitive touchscreen controller with time-segment and real-time programming.
  • Internal data logger, measured values can be read out in open format via USB.
  • Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms.
  • Unit self-test for comprehensive status analysis.
  • Data interfaces: Ethernet, USB,
  • BINDER Multi Management Software APT-COM™ basic edition.
  • Ergonomically adjustable control terminal (from model 470).
  • Signal triangle with light-up status display (from model 470).
  • Optional light modules for ICH photostability testing (for models 260, 470, 720).
  • Optional LED light modules for plant growth (for models from 260).
Model Interior Volume (L) Temperature Range Internal Dimensions (mm) Housing Dimensions (mm) (Not including fittings and connections)
KBPRO130-230V 127 -20°C to +100°C 656 (W) x 500 (H) x 386 (D) 900 (W) x 1005 (H) x 710 (D)
KBPRO260-230V 262 -20°C to +100°C 656 (W) x 695 (H) x 575 (D) 930 (W) x 1396 (H) x 900 (D)
KBPRO470-230V 472 -20°C to +100°C 656 (W) x 1250 (H) x 575 (D) 930 (W) x 1951 (H) x 900 (D)
KBPRO720-230V 727 -20°C to +100°C 1011 (W) x 1250 (H) x 575 (D) 1285 (W) x 1951 (H) x 900 (D)
KBPRO1060-1070 1070 -20°C to +100°C 1011 (W) x 1250 (H) x 847 (D) 1285 (W) x 1951 (H) x 1175 (D)
KBPRO1600-230V 1610 -20°C to +100°C 1521 (W) x 1250 (H) x 847 (D) 1795 (W) x 1951 (H) x 1175 (D)
