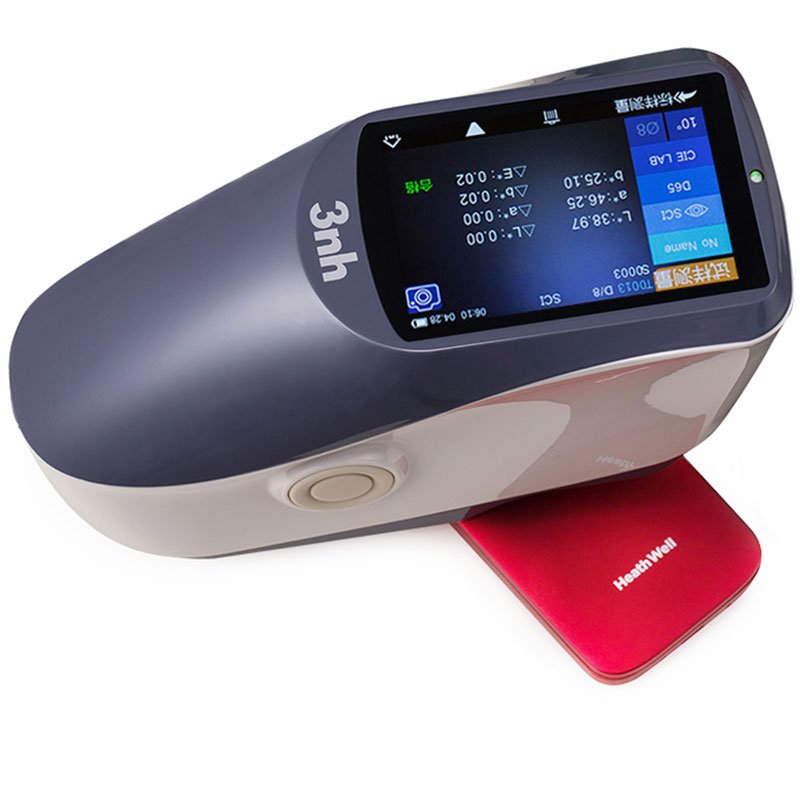

Handheld spectrophotometer showing colour measurement data on a touchscreen.

YS4560 45/0 Portable Grating Advanced Spectrophotometer

Name: YS4560 45/0 Portable Grating Advanced Spectrophotometer
Brand: 3nh
Price: 2076.00 GBP
Availability: InStock

Manufactured by 3nh

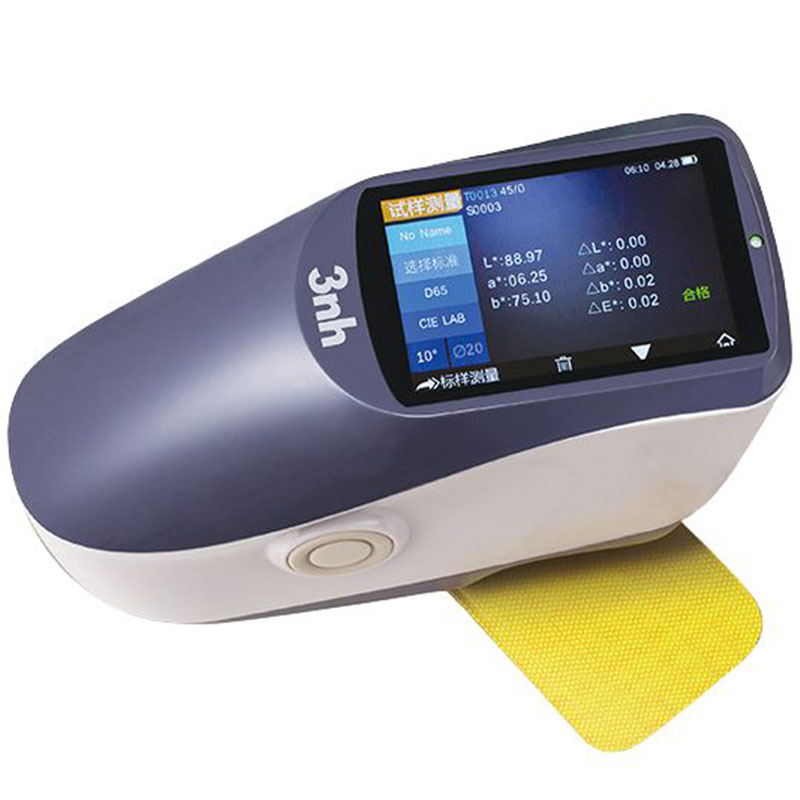

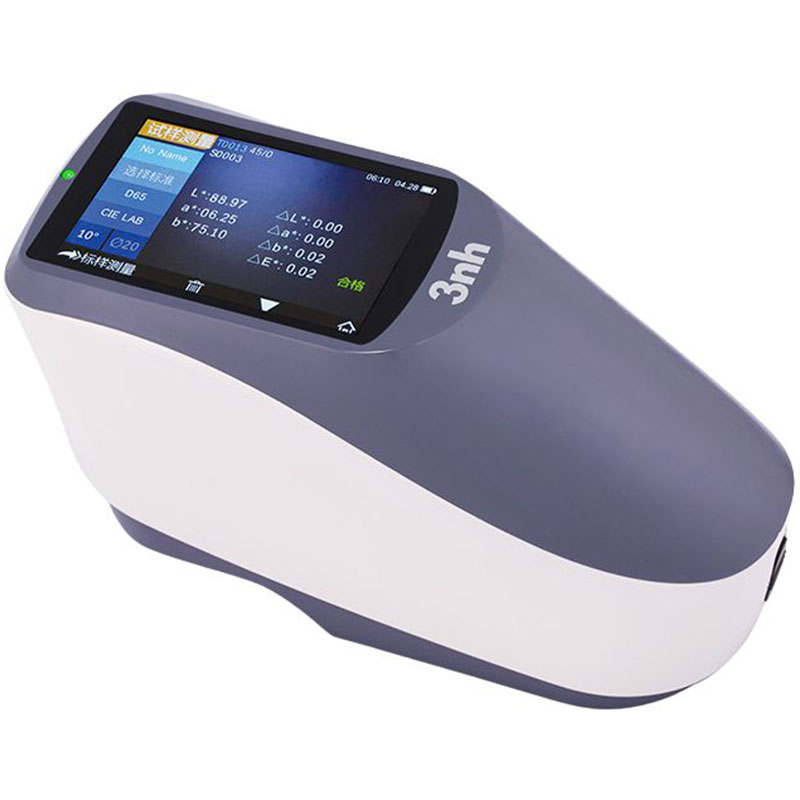

The YS4560 handheld advanced spectrophotometer adopts concave grating spectrometry to accurately measure sample reflectance and various colorimetric data.

It’s equipped with a Φ8mm, Φ4mm double measuring aperture, leading to more precise readings and enhanced adaptability to diverse samples.

Other benefits include two standard observer angles, a variety of illuminant and colour indexes, as well as conforming with a variety of standard colorimetric data to meet a variety of customer demands for accurate colour measurement and quality control.

Quantity

Data sheets

Benefits

45/0 geometrical optics, conforms with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, GB 2893, and GB/T 18833.
Separate UV source for fluorescence sample measurements.
Large data storage space enables you to store up to 30,000 samples measurement records at any one time.
Super stain-resistant and stable standard white calibration plate.
PC software has a powerful function extension.
Built-in standard polygon tolerance setting and specific traffic sign gamut. It takes just one button to realise the measurement of traffic road signs, marking lines, reflective film brightness factor, and chromaticity coordinates.
USB port modernises data handling and increases operational flexibility.
Adopts a high-life and low-power combined LED light source, including UV/excluding UV to provide significant energy savings and a longer product lifespan.
High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, and 256 Iimage Element Double Arrays CMOS Image Sensor.
Spectrophotometer calibration service available.

Illumination/Observation system	45/0(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15, GB/T 3978,GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833
Integrating Sphere Size	Φ48mm
Light Source	Combined LED Light, UV Light
Spectral separation device	Concave Grating
Detector	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400-700nm
Wavelength Pitch	10nm
Half bandwidth	10nm
Reflectance Range	0-200%
Measuring Aperture	MAV: Φ8mm/Φ10mm；SAV: Φ4mm/Φ5mm
Colour Space	CIE LAB, XYZ, Yxy, LCh, CIE LUV,s-RGB, HunterLab, βxy, DIN Lab99 Munsell(C/2)
Colour Difference Formula	ΔEab, ΔEuv, ΔE94,ΔEcmc(2:1), ΔEcmc(1:1), ΔE00, DINΔE99, ΔE(Hunter)
Other Colorimetric Index	Spectrum Reflectance Rate, WI(ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, TaubeBergerStensby), YI(ASTM D1925, ASTM E313-00, ASTM E313-73) Metamerism Index Mt, Staining Fastness, Colour Fastness, Strength (dye strength, tinting strength), Opacity 8-degree Gloss, 555 Index, Blackness (My,dM), Colour Density CMYK(A,T,E,M), Tint(ASTM E313-00), Munsell (Some functions are realised through the computer)
Observer Angle	2°/10°
Illuminant	D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), B, U35, NBF, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-C2, LED-C3, LED-C5, Light source can be customised (a total of 41 kinds of light sources, some of which are realised through the host computer/APP)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Colour Difference Values/Graph, PASS/FAIL Result, Colour Offset
Measuring Time	About 1.5s
Repeatability	Spectral reflectance: MAV,Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	Within ΔE*ab 0.15 (Average for 12 BCRA Series II colour tiles)
Measurement Mode	Single Measurement, Average Measurement (2-99)
*Size(LWH)*	184mm X 77mm X 105mm
Battery	Li-ion battery. 5000 measurements within 8 hours
Dimension	LWH = 184mm X 77mm X 105mm
Weight	About 600g
Power source	Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span	5 years, more than 3 million times measurements
Display	3.5-inch TFT colour LCD, Capacitive Touch Screen
Data Port	USB, Bluetooth 5.0
Data Storage	Standard 1000 Pcs, Sample 30000 Pcs
Language	Chinese Simplified, Chinese Traditional, English, French, Portuguese, Russian, Spanish, Italian, German
Working Environment	Temperature: 0~40℃; Humidity: 0~85% (No Condensation) ;altitude: less than 2000 m
Storage Environment	Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessories	Power Adaptor, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional Accessories	Micro Printer, Powder Test Box, Universal test components, Locating Plate.
