WT-205 Wire Crimp Pull Tester

£2,321.00

Manufactured by Mark-10

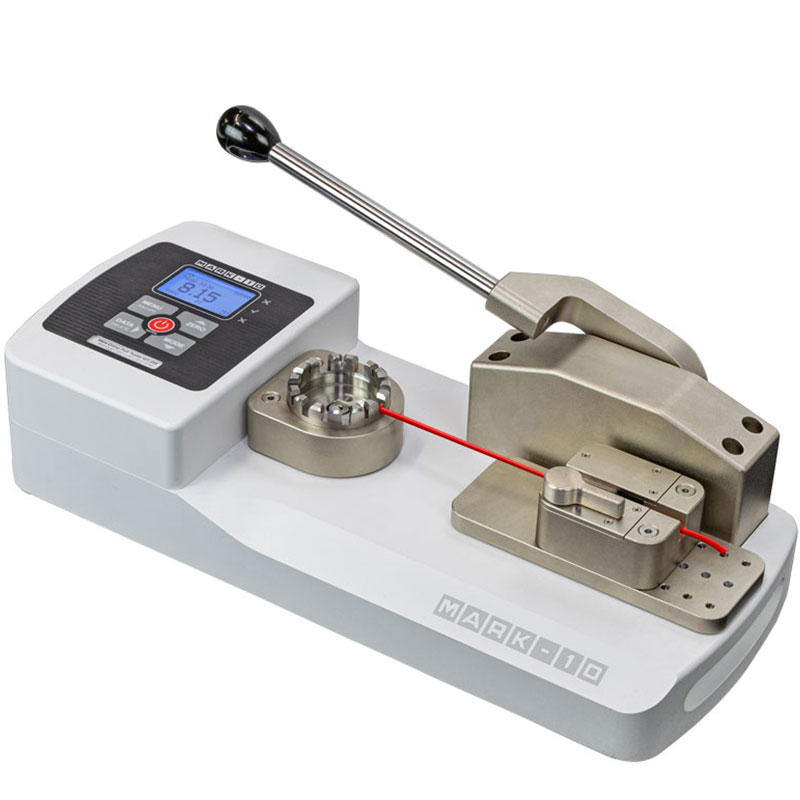

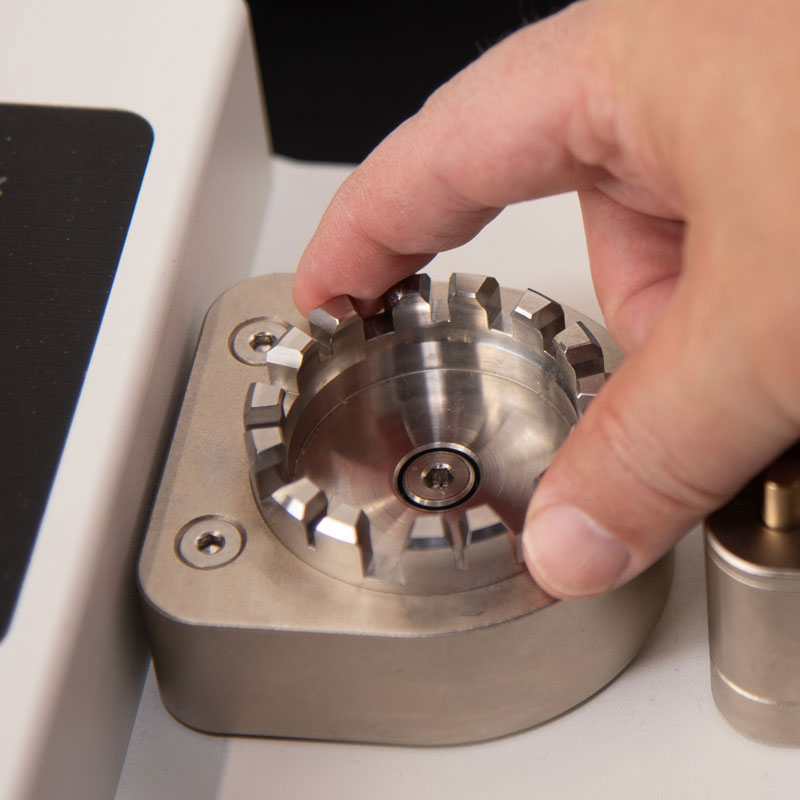

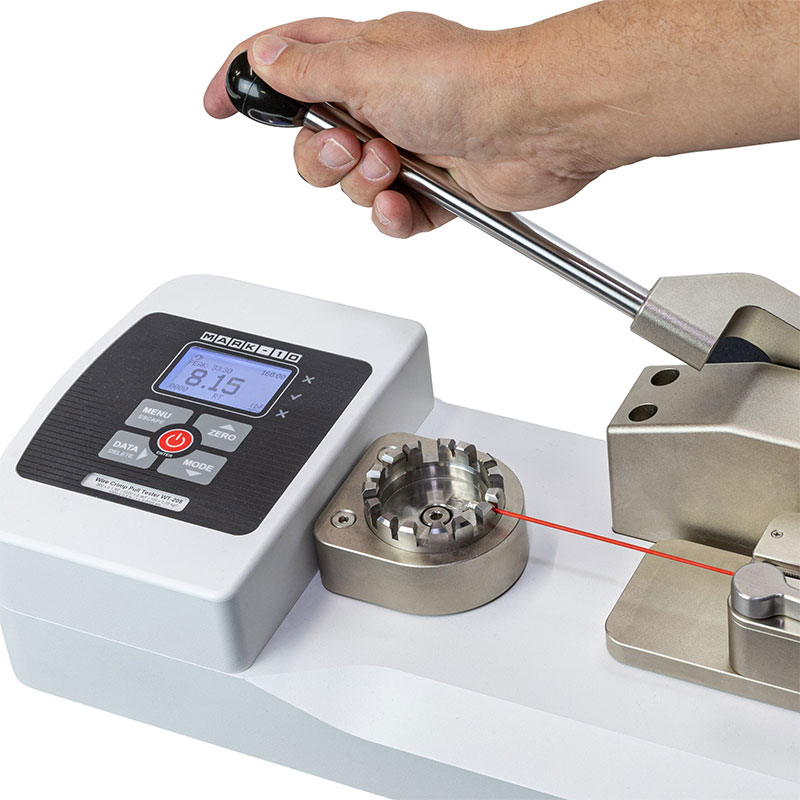

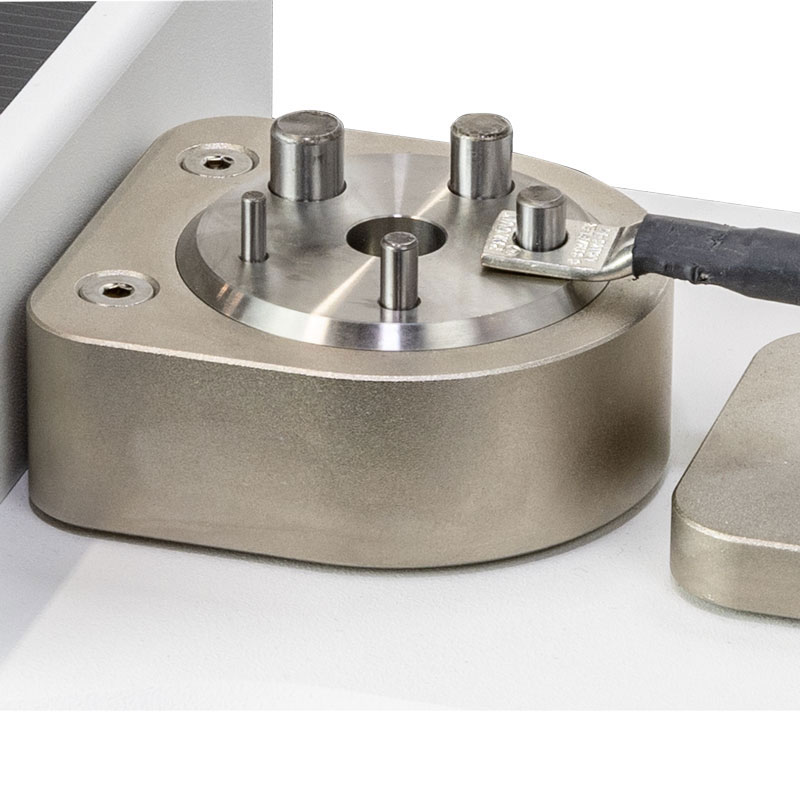

Carry out wire crimp pull tests accurately and efficiently with the portable and customisable WT-205 Wire Crimp Pull Tester. You can apply up to 200 lbF (1,000 N) of force via an ergonomic lever, with the tester’s standard adjustable terminal fixture containing multiple slots for diameters up to AWG 3 (0.25 in [6.3 mm]).

The WT-205 stores up to 1,000 readings and calculates statistics. Upon sample break, the tester can automatically save and output the peak force and auto-zero in preparation for the next test, increasing testing consistency and efficiency.

Qty:
Request a Quote Ask a Question Data Sheet

Benefits

  • Portable and customisable design.

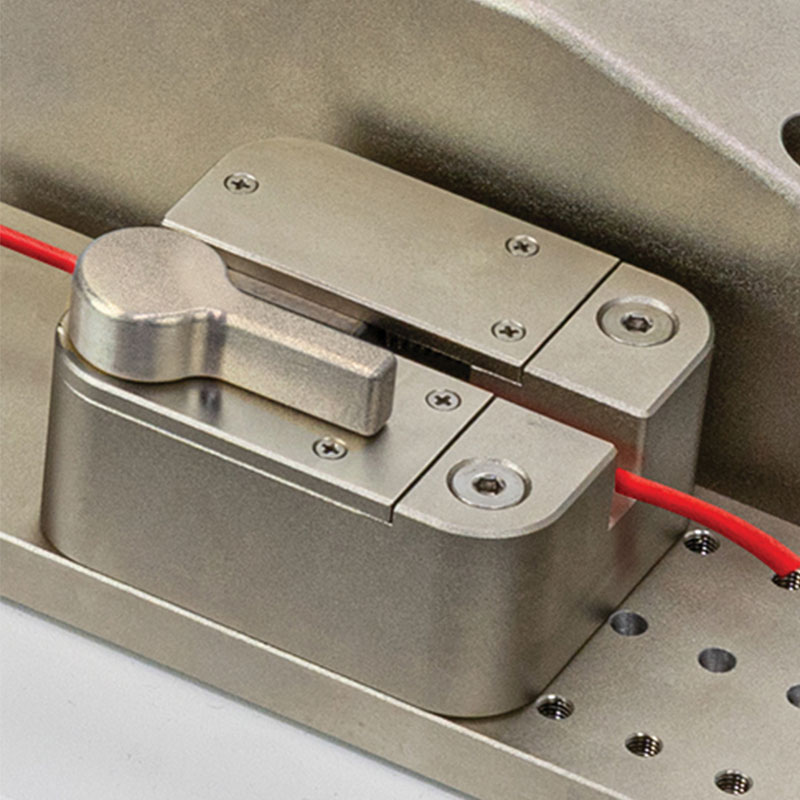

  • Self-tightening wedge grip securely clamps the free end of the cable

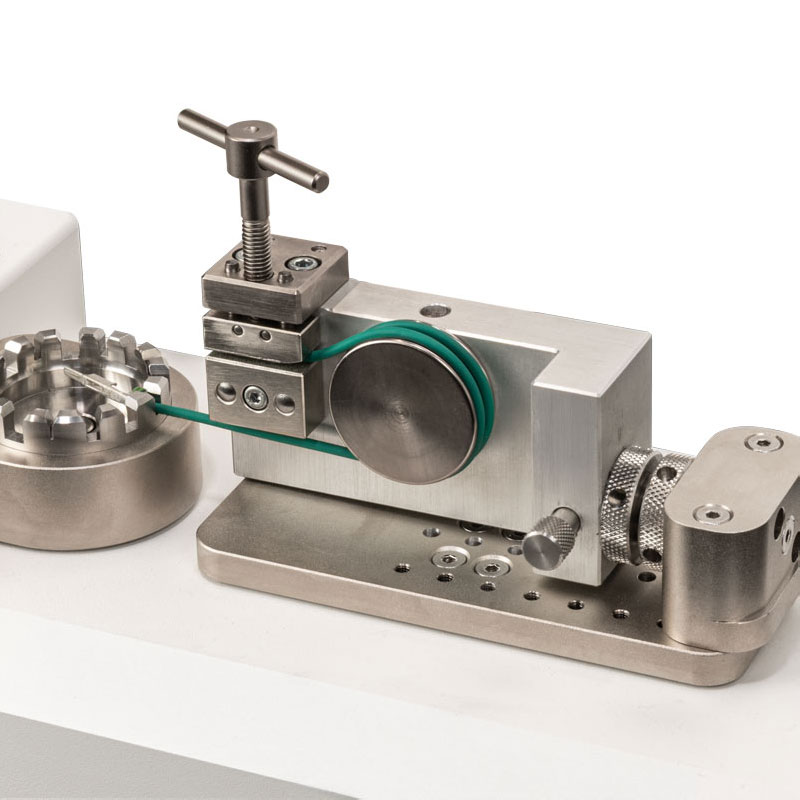

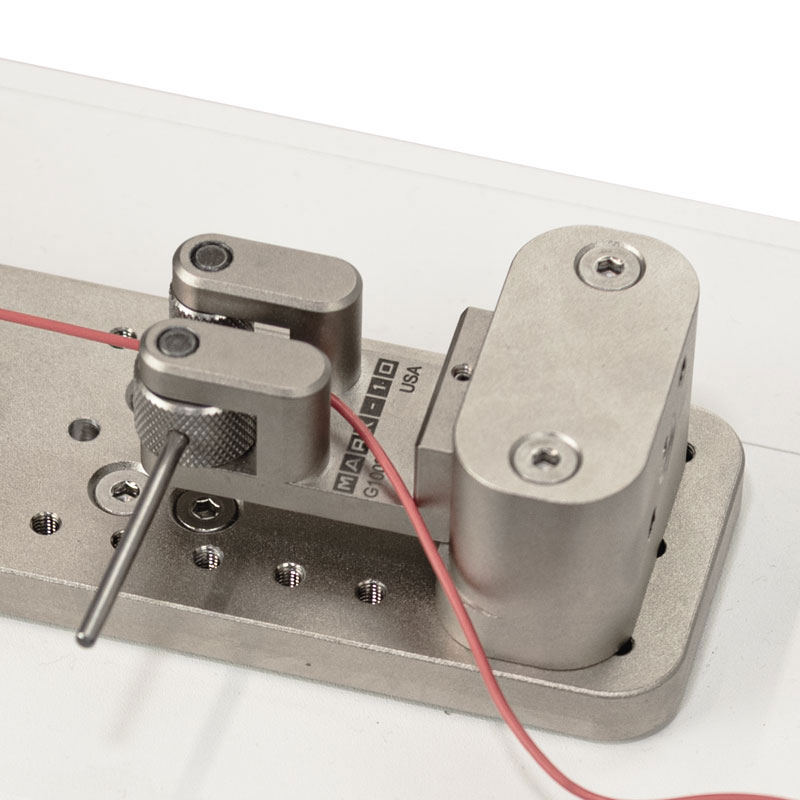

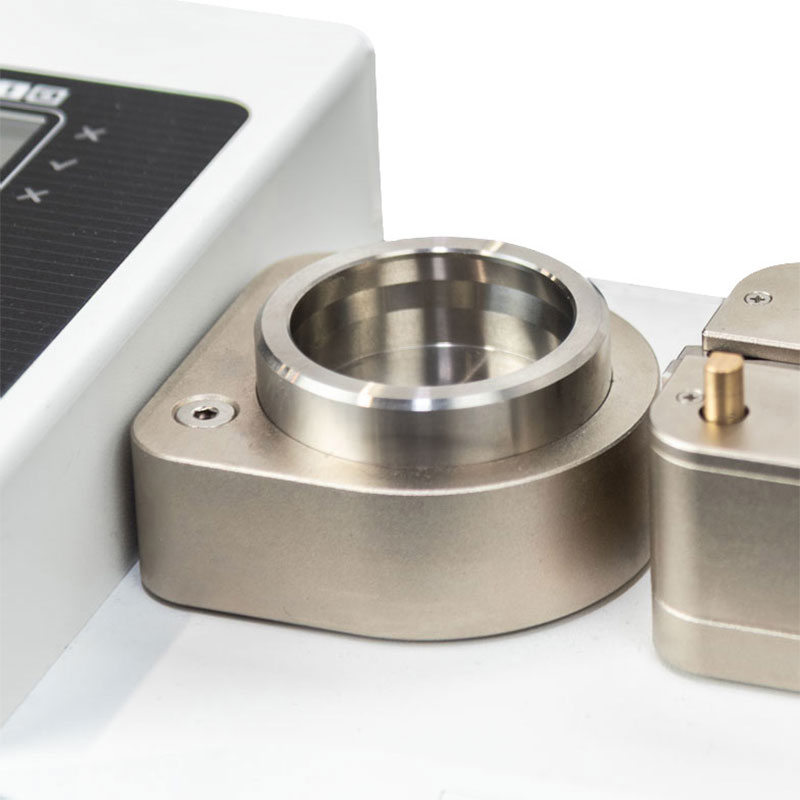

  • Accommodates virtually any wire insulation type via standard and optional grips.

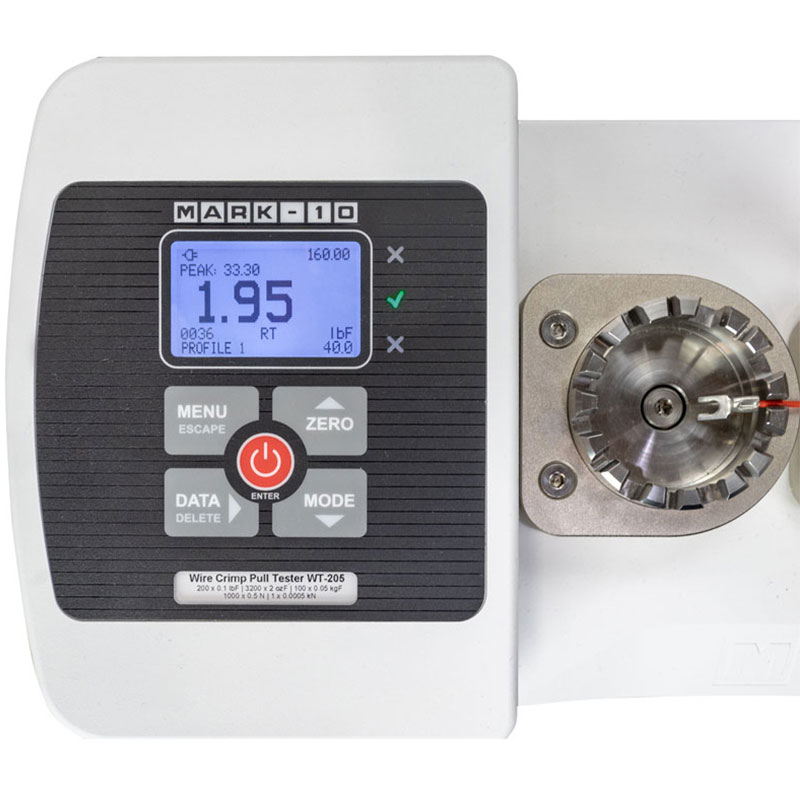

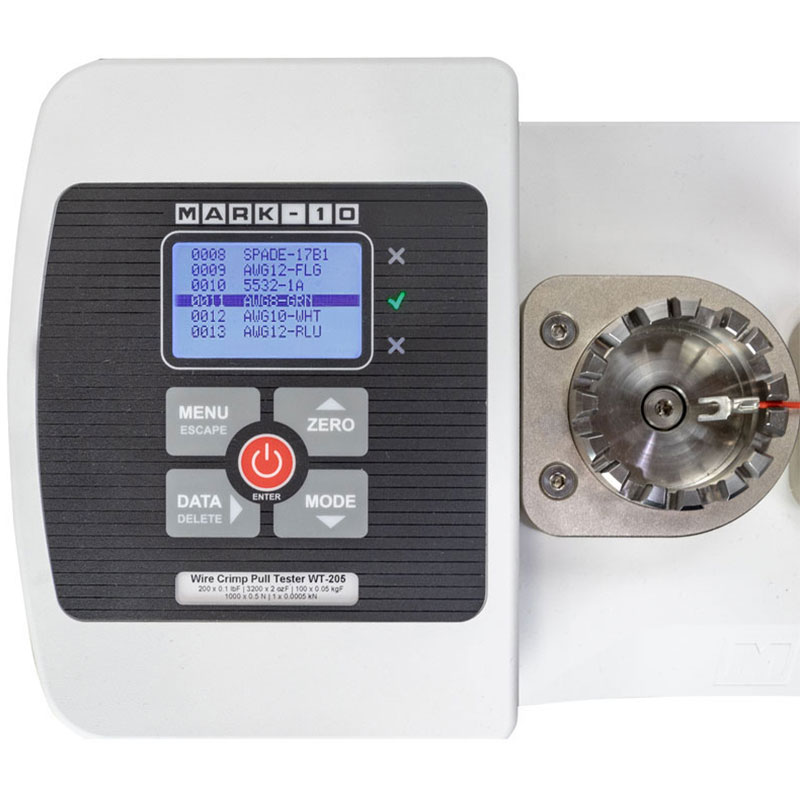

  • Backlit graphic LCD displays real-time force, peak force, unit of measurement, and pass/fail indicators. Green and red pass/fail indicators may also be used.
  • A load bar on the display shows when an overload is approaching.
  • Measures real-time and peak force values.
  • High-speed 7,000 Hz sampling rate accurately captures peak force values.

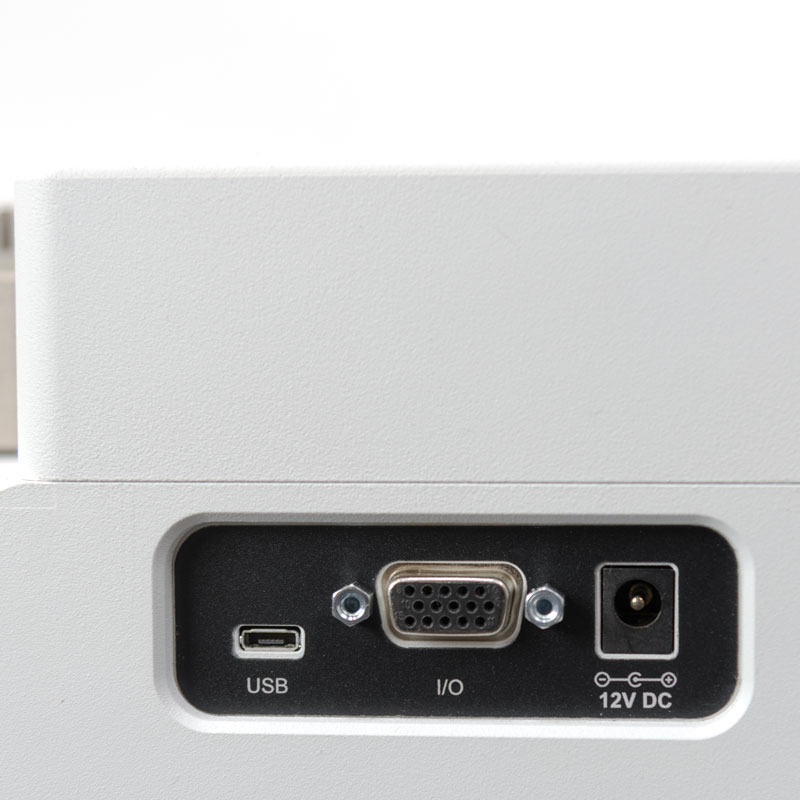

  • Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analogue outputs.
  • Enhances wire quality assurance and helps sectors like aerospace and telecommunications maintain compliance with industry standards.

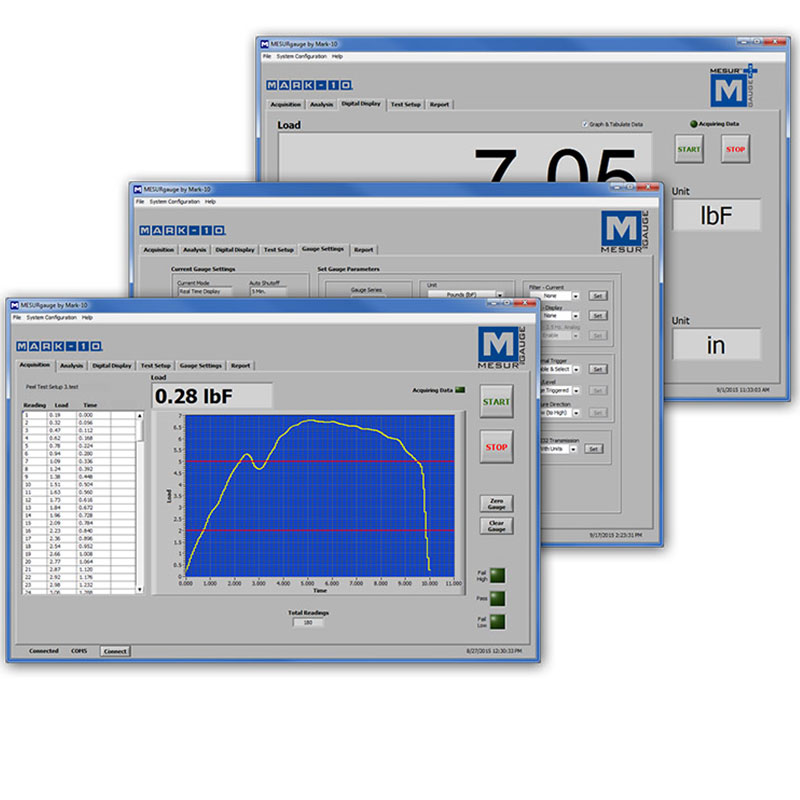

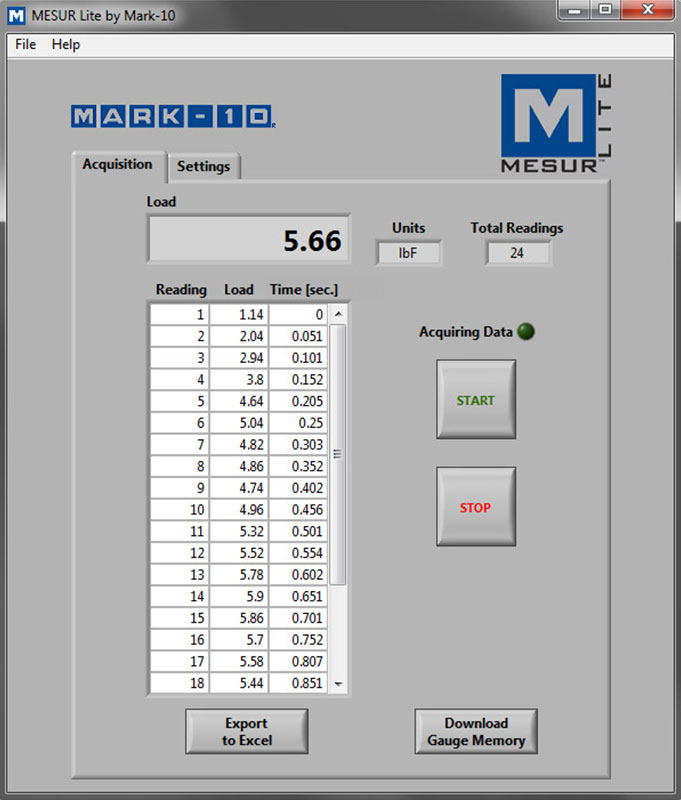

  • MESUR®Lite data acquisition software tabulates continuous or single point data.
  • One-click export to Excel allows for further data manipulation.
  • Password protection protects unauthorised changes.
  • Configurable audio alarms and key tones.

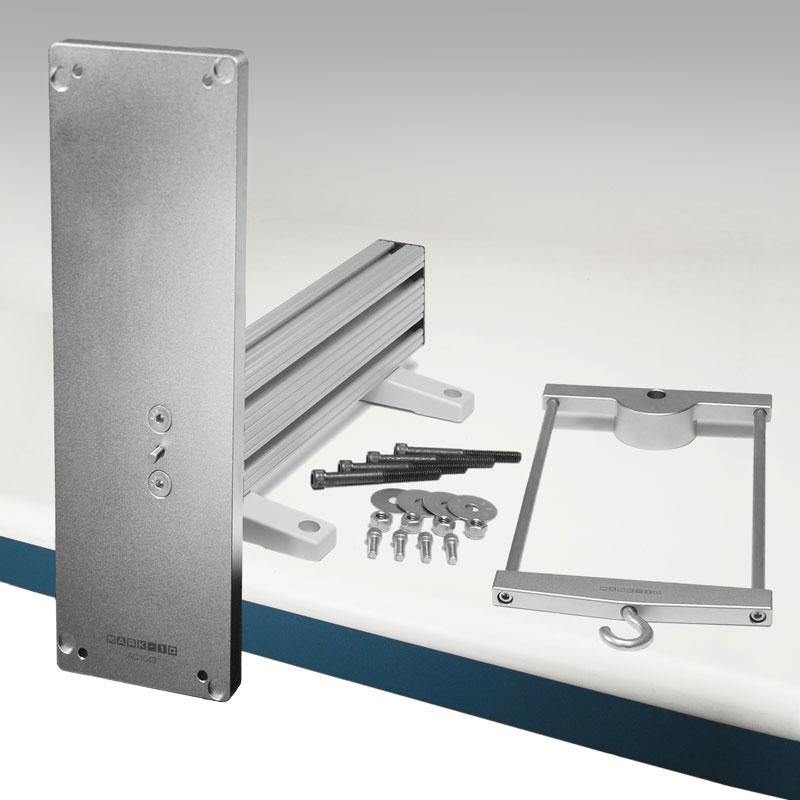

  • Mounting holes for bench mounting.
  • Three year warranty.
  • Supported by AML in the UK.
  • WT205M Wire Crimp Tester also available, which measures live and peak wire crimp force pull values up to 1 kN.

The WT-205 pull tester for crimped wires includes the following accessories:

  • 1 x AC Adapter
  • 1 x Battery
  • 1 x Certificate of calibration without data
  • 1 x Removable lever
  • 1 x USB cable.

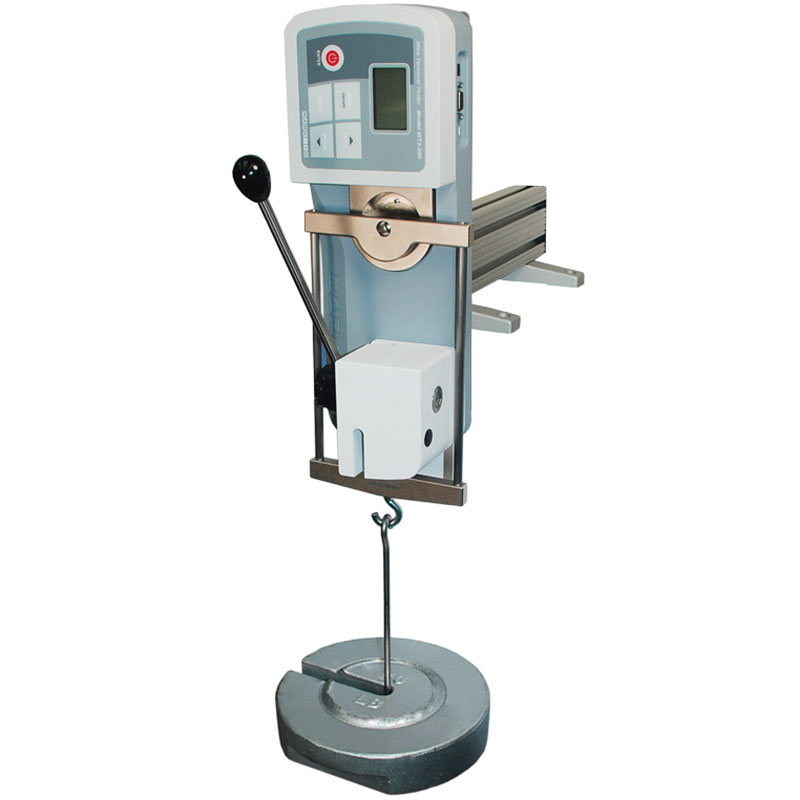

Important: Mark-10 equipment (other than the gauges) features open-access calibration. This means calibration adjustments are not locked out, giving you the freedom to use any standard-compliant calibration laboratory of your choice, saving you time and reducing lifetime ownership costs.

Reviews

There are no reviews yet.

Be the first to review “WT-205 Wire Crimp Pull Tester”

Your email address will not be published. Required fields are marked *

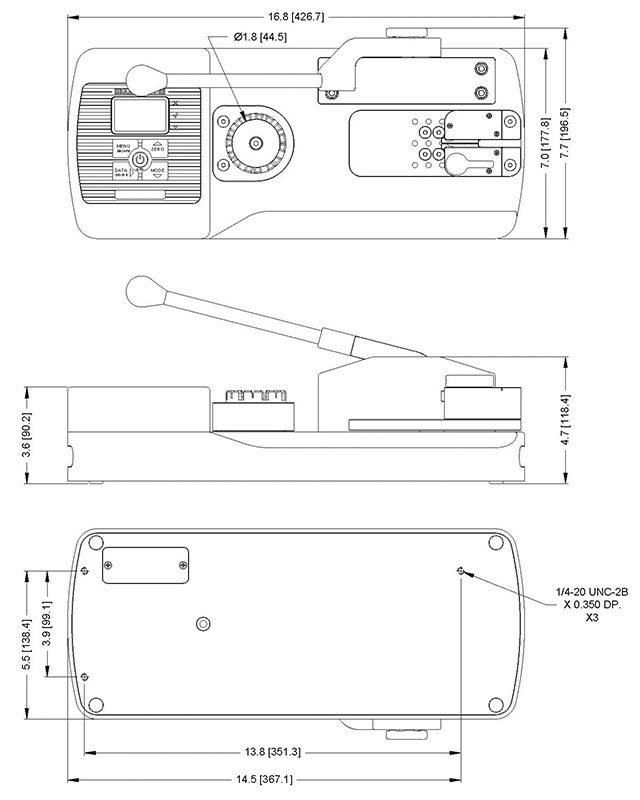

Dimensions

Technical Data

Capacity x Resolution:  200 x 0.1 lbF, 3200 x 2 ozF, 100 x 0.05 kgF, 1000 x 0.5 N, 1 x 0.0005 kN
Accuracy:  ±0.2% of full scale
Wire gauge range*: AWG30 – AWG3*
Wire diameter range: 0.01 – 0.25 in [0.3 – 6.3 mm]
Minimum sample length: 2.1 in [53.3 mm], excluding termination
Maximum sample elongation: 1.70 in [43.2 mm]
Power: AC adapter: 100-240VAC, 50-60 Hz, 0.3A, Battery: Rechargeable 8.4V NiMH Low battery indicator appears when battery level is low, and tester powers off automatically when power reaches critical stage.
Battery Life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Sampling rate: 7,000 Hz
Outputs: USB / RS-232: Configurable up to 115,200 baud. .
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices.
Analogue: ±1 VDC, ±0.25% of full scale at capacity.
Set points: Three open drain lines, 40 VDC max., 100 mA DC max.
Safe overload: 150% of full scale (display shows “OVER” at 110% and above)
Weight: 16.1 lb [7.3 kg]
Shipping weight: 24.5 lb [11 kg]
Warranty: 3 years (see individual statement for further details)
HS code: Model no. HS code:
WT-205 9024100000
CERT
15-1004
WT3002
WT3003
WT3004
AC1049
AC1109
AC1111
AC1118
AC1030
AC1031
AC1032
AC1035		 9024800000
ECCN: EAR99
Country of origin: USA

*Including insulation. To ensure the wire sample will fit into the WT-205, measure the overall outside diameter of the insulated wire and check against the specified diameter range. Account for sample compressibility in making this determination.
