WT-205M Wire Crimp Pull Tester

£3,814.00

Manufactured by Mark-10

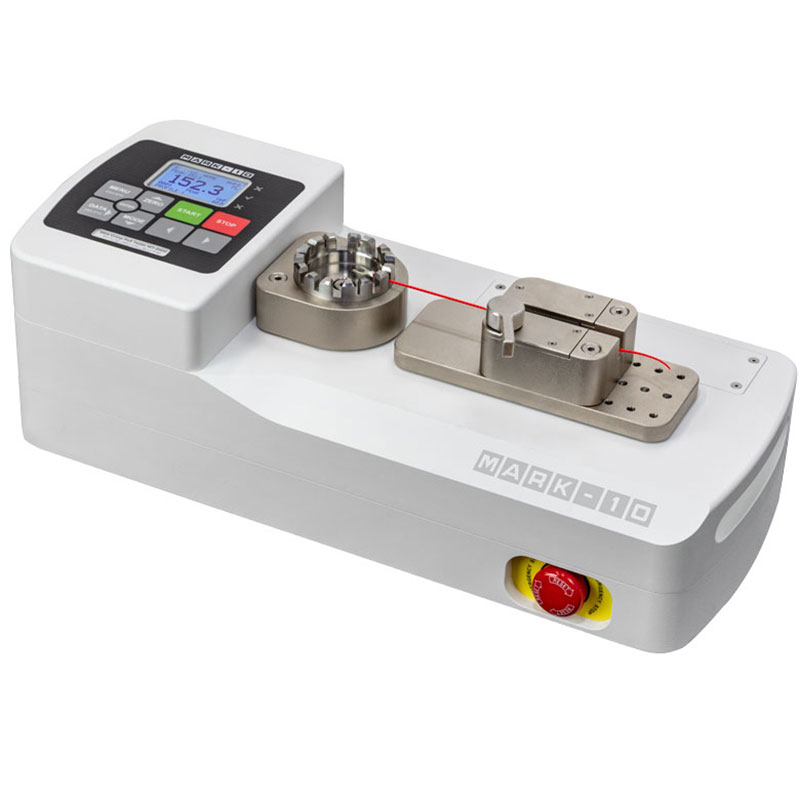

The WT-205M conforms to numerous wire crimp pull test standards, including ASTM, ISO, MIL, SAE, and UL requirements for destructive and non-destructive testing. It can accurately and efficiently measure live and peak wire crimp force pull values up to 1 kN.

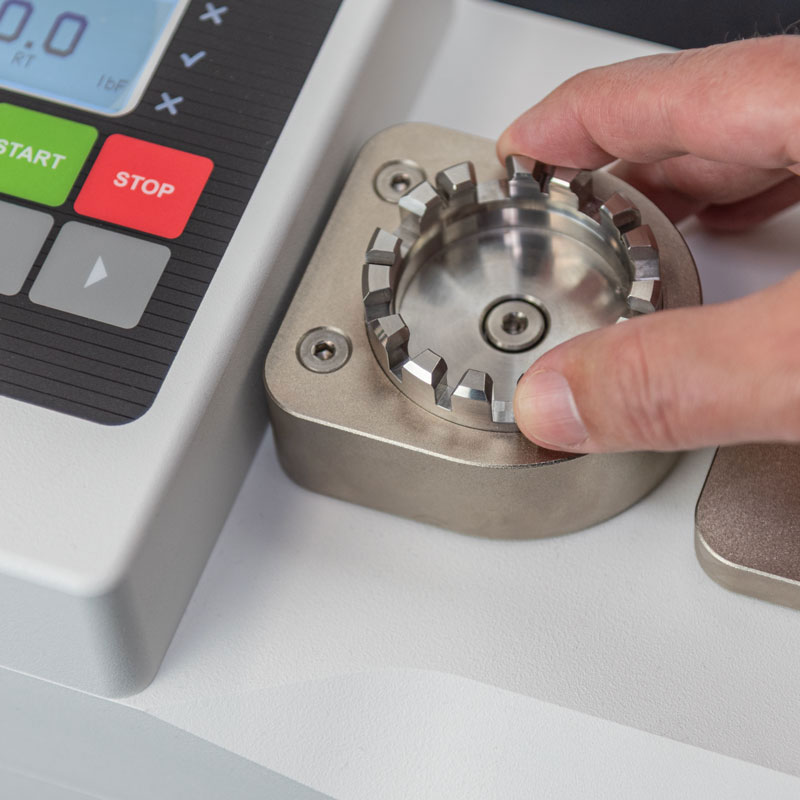

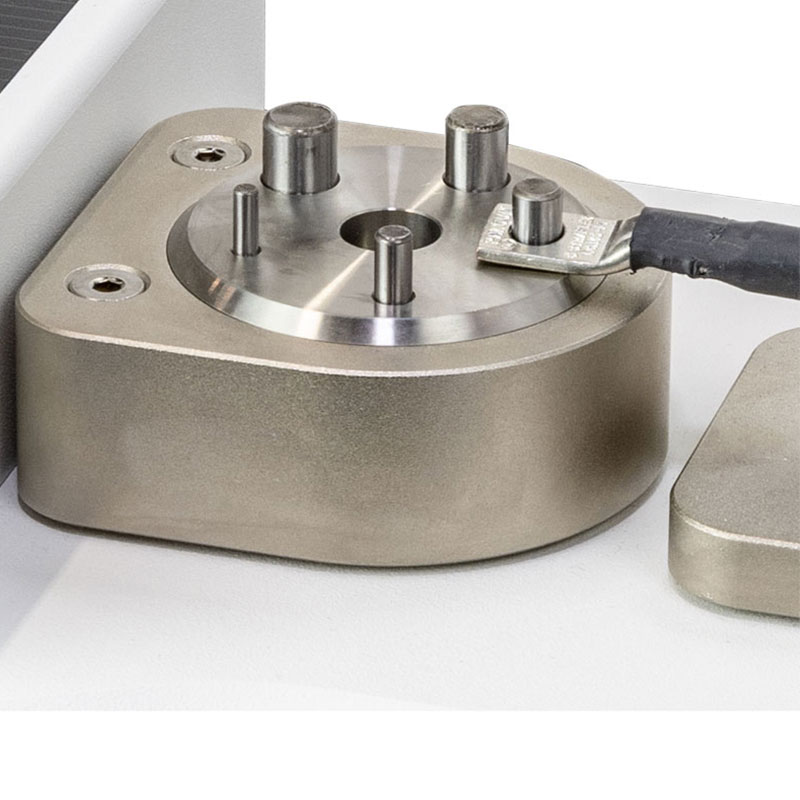

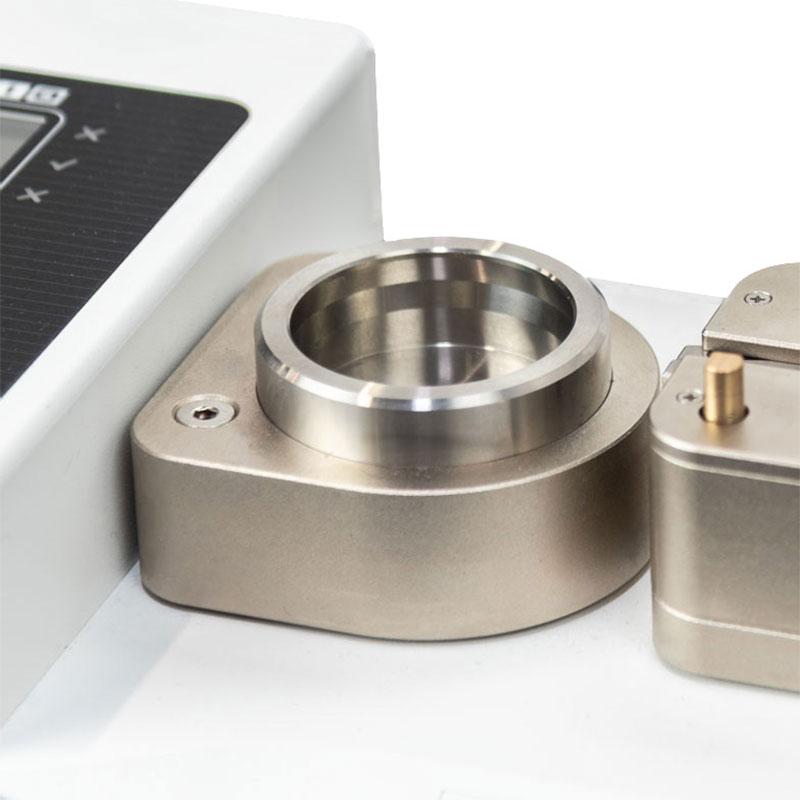

Critical in industries like aerospace and consumer electronics for quality testing wire terminal strength, the tester’s standard adjustable terminal fixture contains multiple slots for diameters up to AWG 3 (0.25 in [6.3 mm]).

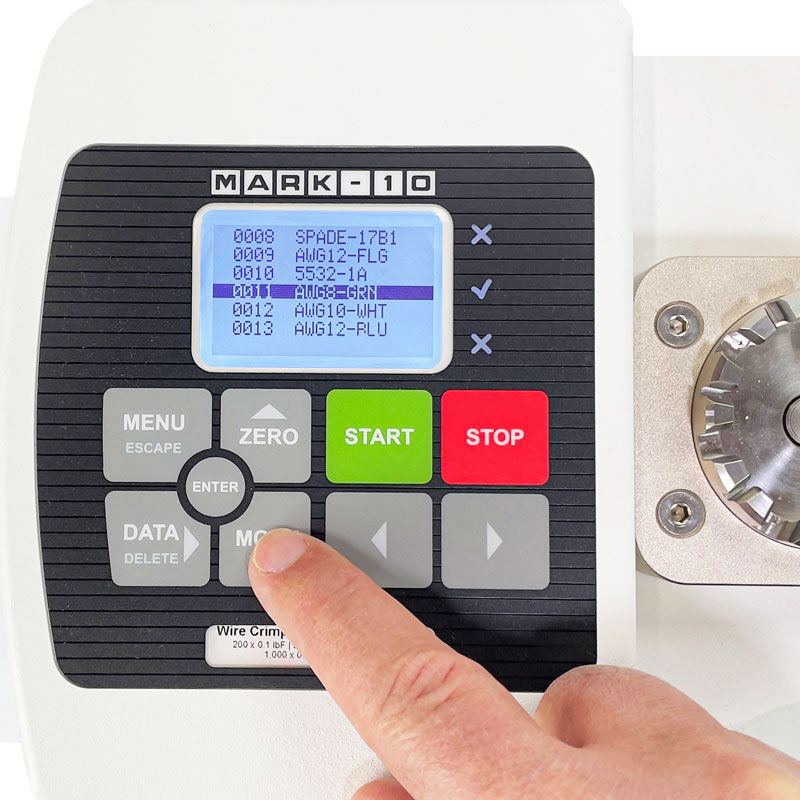

Programmable pass/fail limits with red and green indicators and audio alerts help identify non-conforming samples. Upon sample break, the tester can auto-reverse, save and output the peak force, and auto-zero in preparation for the next test, increasing testing efficiency.

Qty:
Request a Quote Ask a Question Data Sheet

Benefits

  • Portable and customisable design.
  • Pull to break, pull to load, or maintain a load for a specified period of time (optional functions), as per the requirements of UL 486A/B.

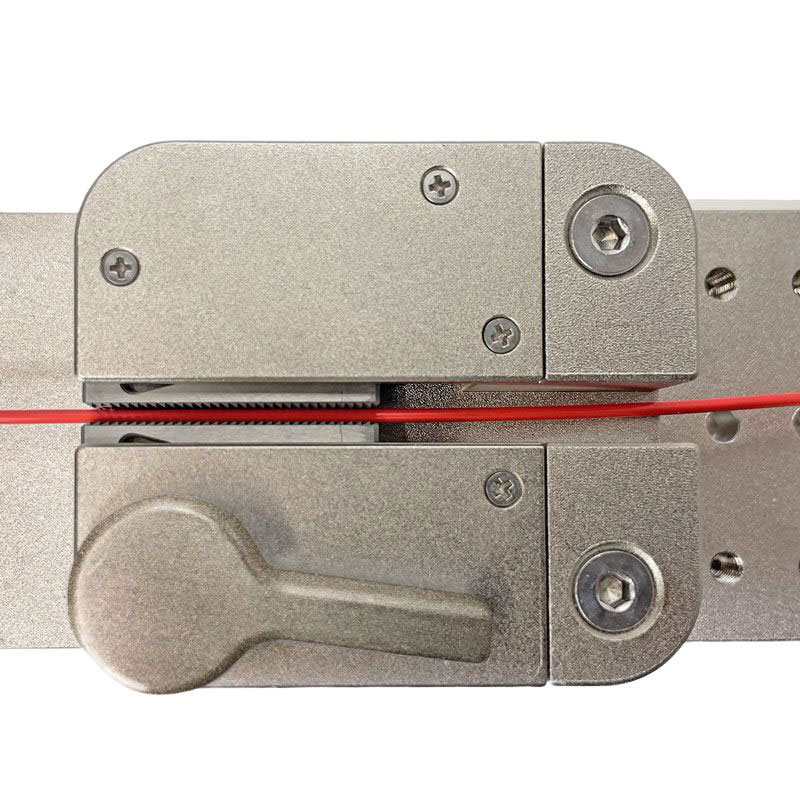

  • Self-tightening wedge grip securely clamps the free end of the cable.
  • Stores and calculates statistics for up to 2,000 readings, with available date and time stamps for each saved data point.
  • Measures real-time and peak force values.
  • Selectable test speed, w/high speed approach and reverse.

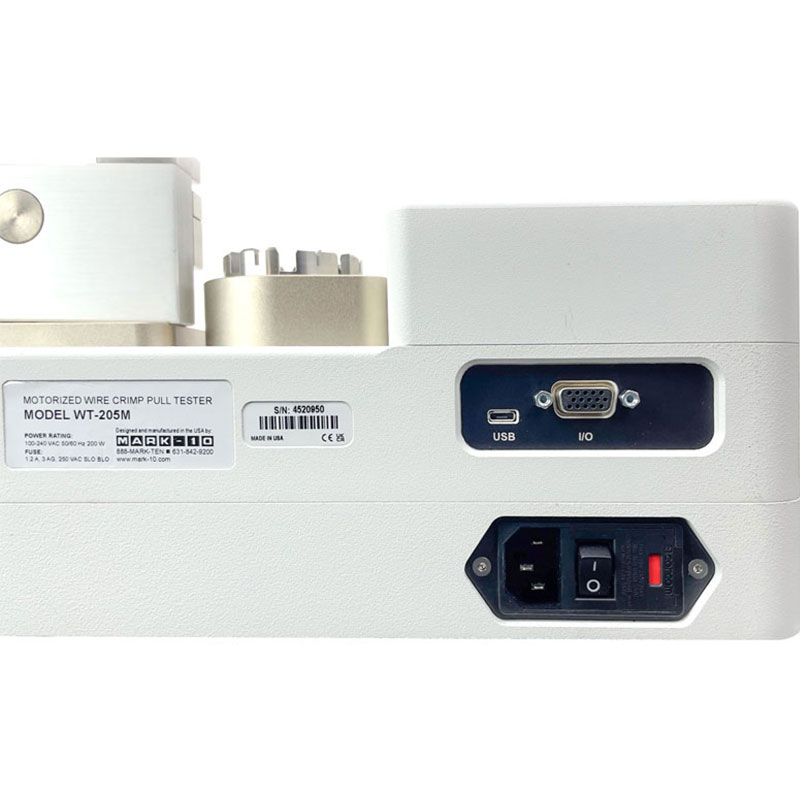

  • Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analogue outputs.
  • Available Profiles function allows the user to create and save test setups for quick recall.

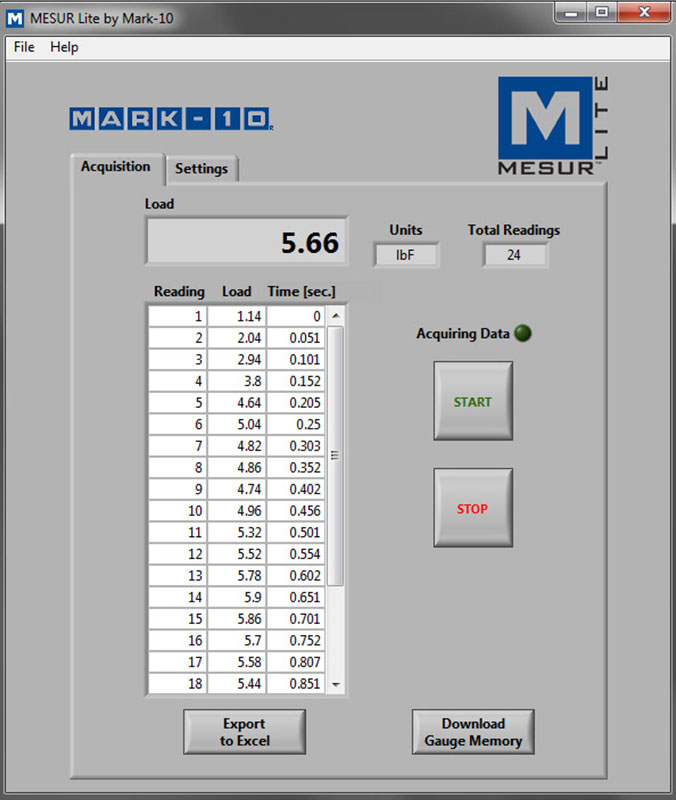

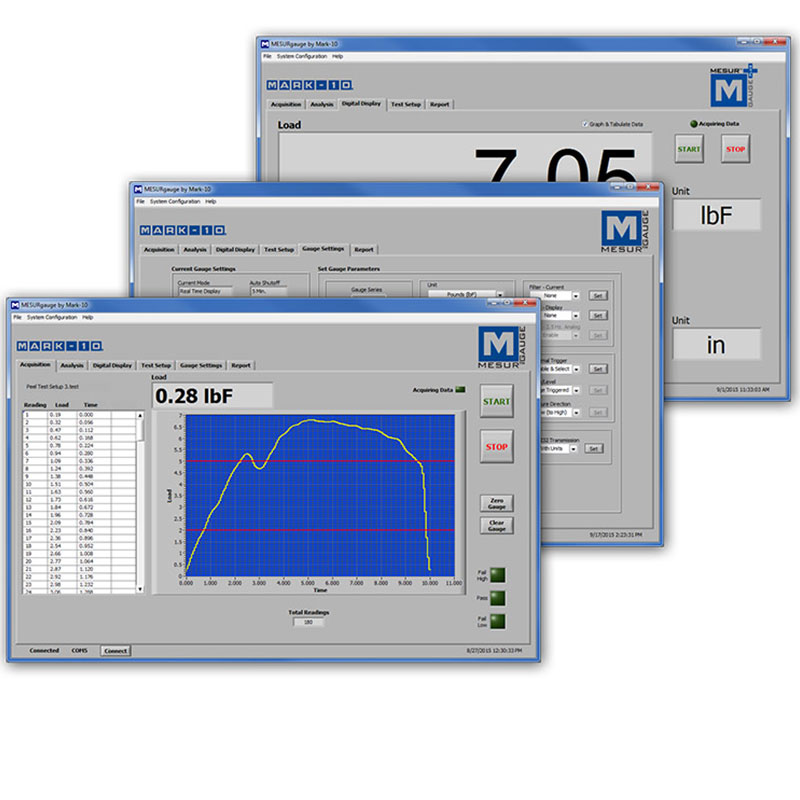

  • MESUR®Lite data acquisition software tabulates continuous or single point data.
  • One-click export to Excel allows for further data manipulation.
  • Password protection protects unauthorised changes.

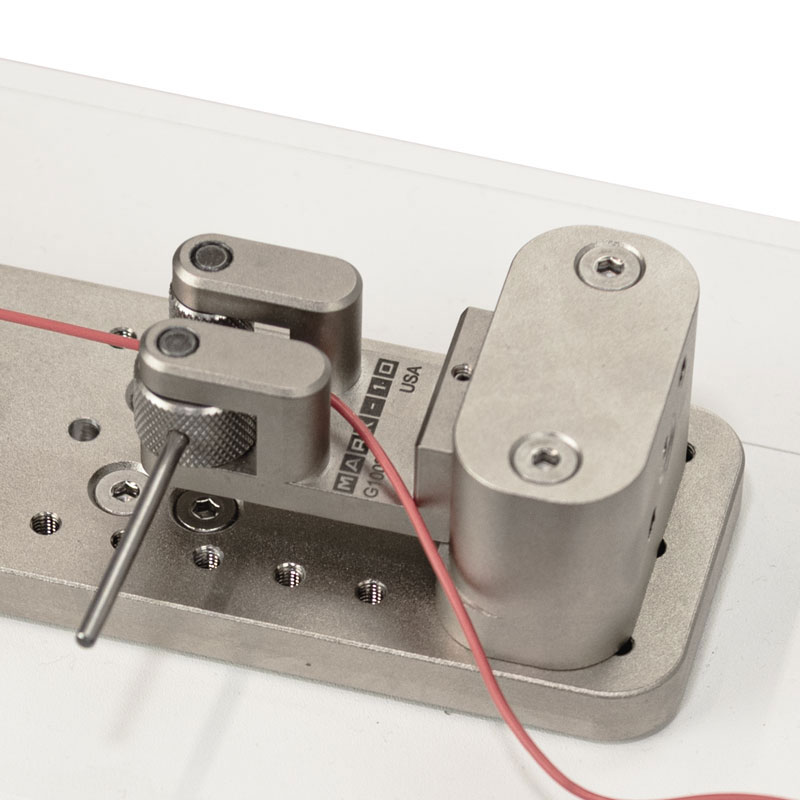

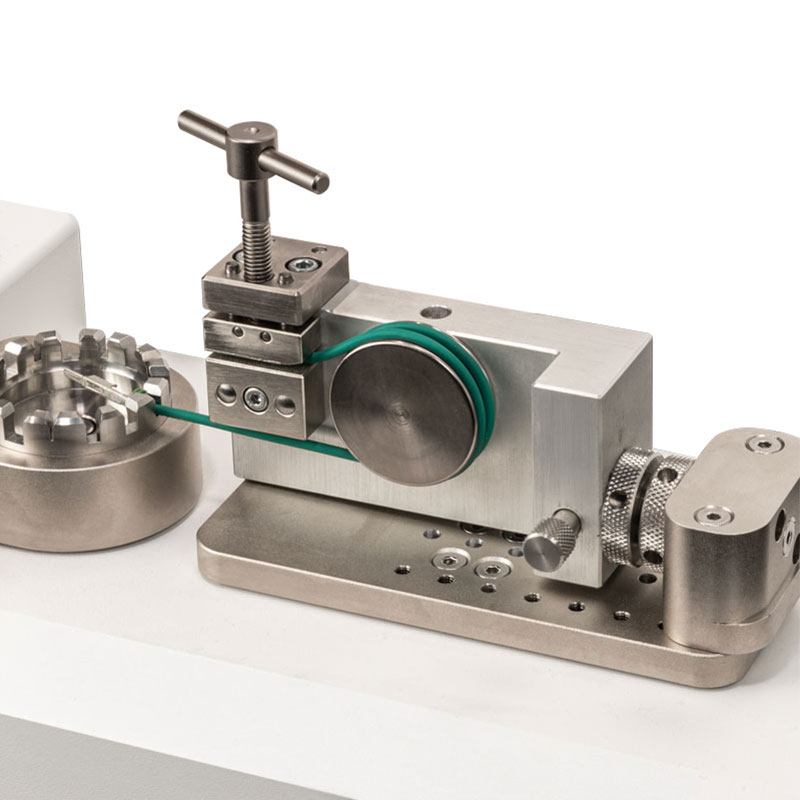

  • To accommodate a wide range of materials, optional and interchangeable alternative grips are available.
  • Save and recall up to 500 profiles for various test requirements (optional function).
  • Pull to a specified load or maintain load for a specified period of time, as per UL 486A/B (optional functions).
  • Date / time stamp for all saved data (optional function).
  • Three year warranty.
  • Supported by AML in the UK.

The WWT-205M pull tester for crimped wires includes the following accessories:

  • 1 x Power cord
  • 1 x USB cable
  • 1 x Certificate of calibration without data.

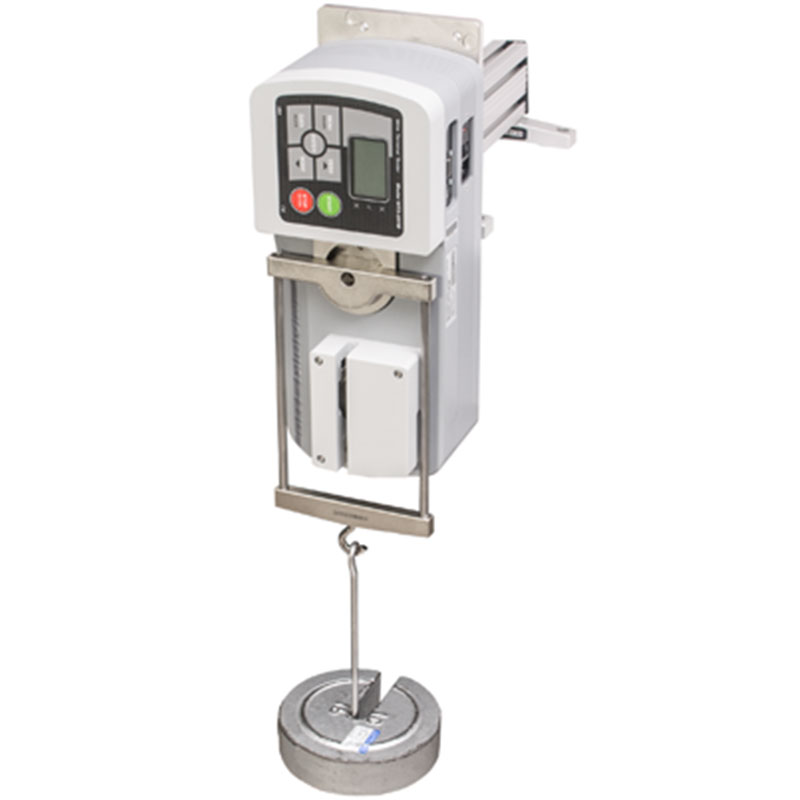

Important: Mark-10 equipment (other than the gauges) features open-access calibration. This means calibration adjustments are not locked out, giving you the freedom to use any standard-compliant calibration laboratory of your choice, saving you time and reducing lifetime ownership costs.

Reviews

There are no reviews yet.

Be the first to review “WT-205M Wire Crimp Pull Tester”

Your email address will not be published. Required fields are marked *

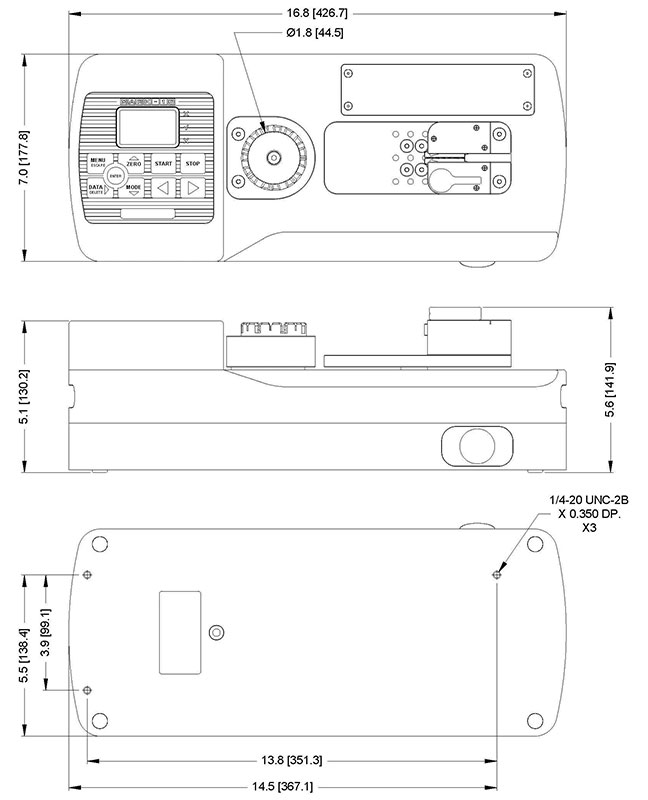

Dimensions



Technical Data

Capacity x Resolution:  200 x 0.1 lbF | 3200 x 2 ozF | 100 x 0.05 kgF | 1,000 x 0.5 N | 1 x 0.0005 kN
Accuracy:  ±0.2% of full scale
Wire gauge range*: AWG30 – AWG 3* [0.01 – 0.25 in (0.3 – 6.3 mm) dia.]
Sample length range: 2.1 in [53.3 mm], excluding termination
Max. elongation: 2.3 in [58.4 mm]
Speed range: Test/Pull Speed: 0.4 – 12.0 in/min [10 – 300 mm/min]
Approach/Preload Speed: 12.0 – 20.0 in/min [300 – 500 mm/min]
Return Speed: 12.0 – 45.0 in/min [300 – 1,125 mm/min]
Speed setting accuracy: ±0.2%
Speed variation with load: ±0% [Stepper motor driven]
Power: Universal input 80-240 VAC, 50/60 Hz
Sampling rate: 7,000 Hz
Outputs: USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog:±1 VDC at capacity, ±0.25% of full scale.
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines, 40 VDC max., 100 mA DC max.
Overload protection: Motor stops at 120% of full scale of the force sensor (display shows “OVER” at 110% and above)
Weight: 28 lb [12.7 kg]
Shipping weight: 33 lb [15.0 kg]
Environmental requirements: 40 – 100°F, max. 96% humidity, non-condensing
Warranty: 3 years (see individual statement for further details)
HS code: Model no. HS code:
WT-205M
All optional functions		 9024100000
CERT
15-1004
WT3004
WT3002
WT3003
AC1049
AC1109
AC1111		 9024800000
ECCN: EAR99
Country of origin: USA

*Including insulation. To ensure the wire sample will fit into the WT-205M, measure the overall outside diameter of the insulated wire and check against the specified diameter range. Account for sample compressibility in making this determination.
