testo 174T – Mini Temperature Data Logger

£54.00

Manufactured by testo

Measurement data memory for 16 000 temperature readings, approx. 500 days of battery life
High data integrity, even with an empty battery
Waterproof according to IP 65, HACCP-compliant and certified according to EN 12830
Data analysis: three possible software versions to choose from, basic software available as a free download

The testo 174T mini temperature data logger is ideal for continuous monitoring of storage temperature, for example of food or pharmaceutical products. It is also suitable for temperature control in refrigerators or cold stores. You need a testo USB interface for programming and reading the mini temperature data logger (0572 0500)

If your professional work involves food or pharmaceutical products, you know that the storage temperature of your goods should not exceed specific limit values under any circumstances. The testo 174T mini temperature data logger helps you comply with the specified temperature ranges. It records the temperature values reliably and thus ensures uninterrupted measurement data recording and documentation.

This is what the testo 174T mini temperature data logger offers

You can save up to 16 000 readings with the testo 174T temperature data logger securely. Because measurement data you have saved will not be lost even when the battery is empty or being replaced. This means a high level of data security is guaranteed. You can easily and quickly read the current temperature measuring value on its large display, along with any possible violations of limit values. The integrated NTC sensor stands for a high level of accuracy. Its large measuring range, from -30 to +70 °C, and its compact design make the testo 174T temperature data logger a competent support for virtually every kind of temperature recording.

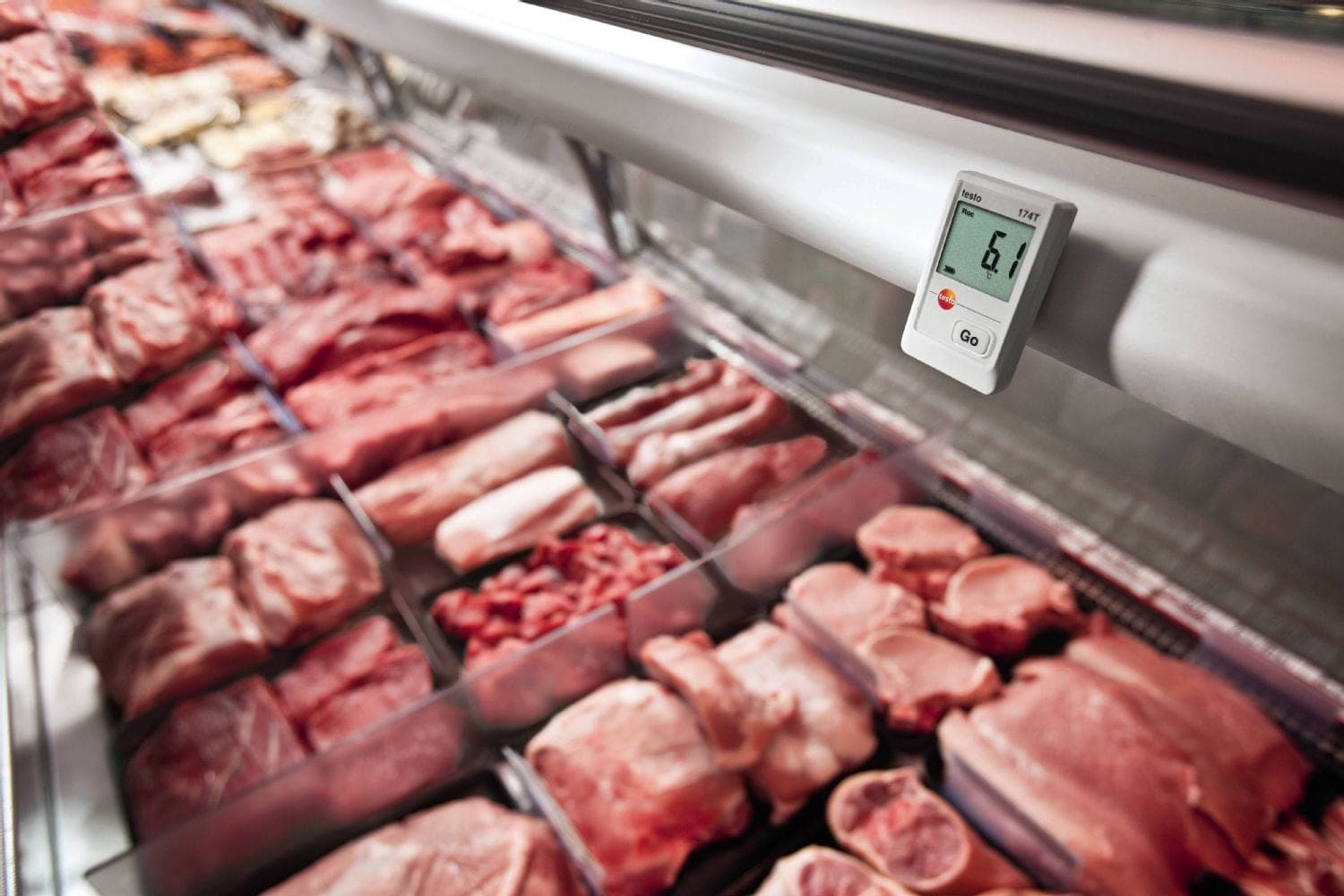

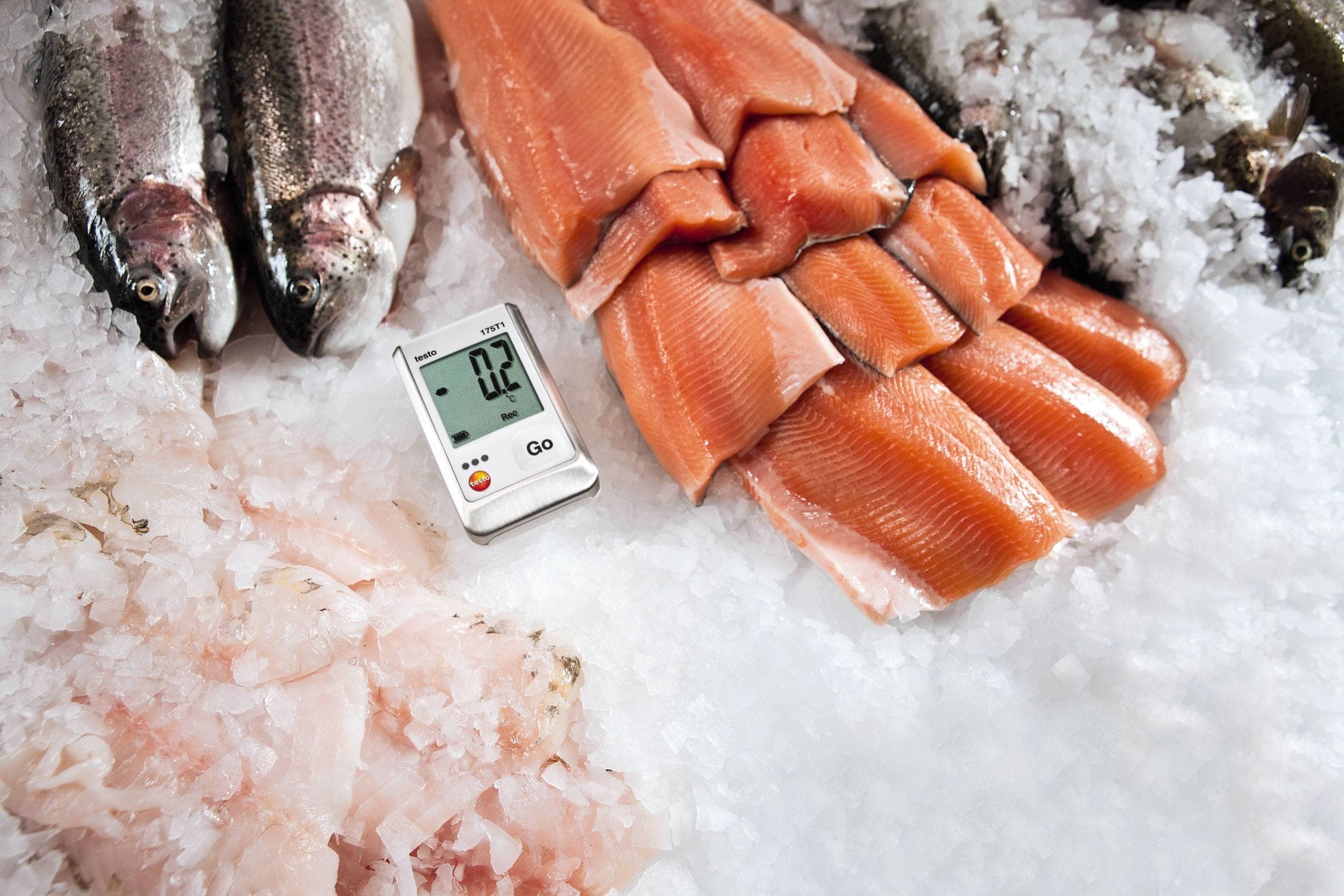

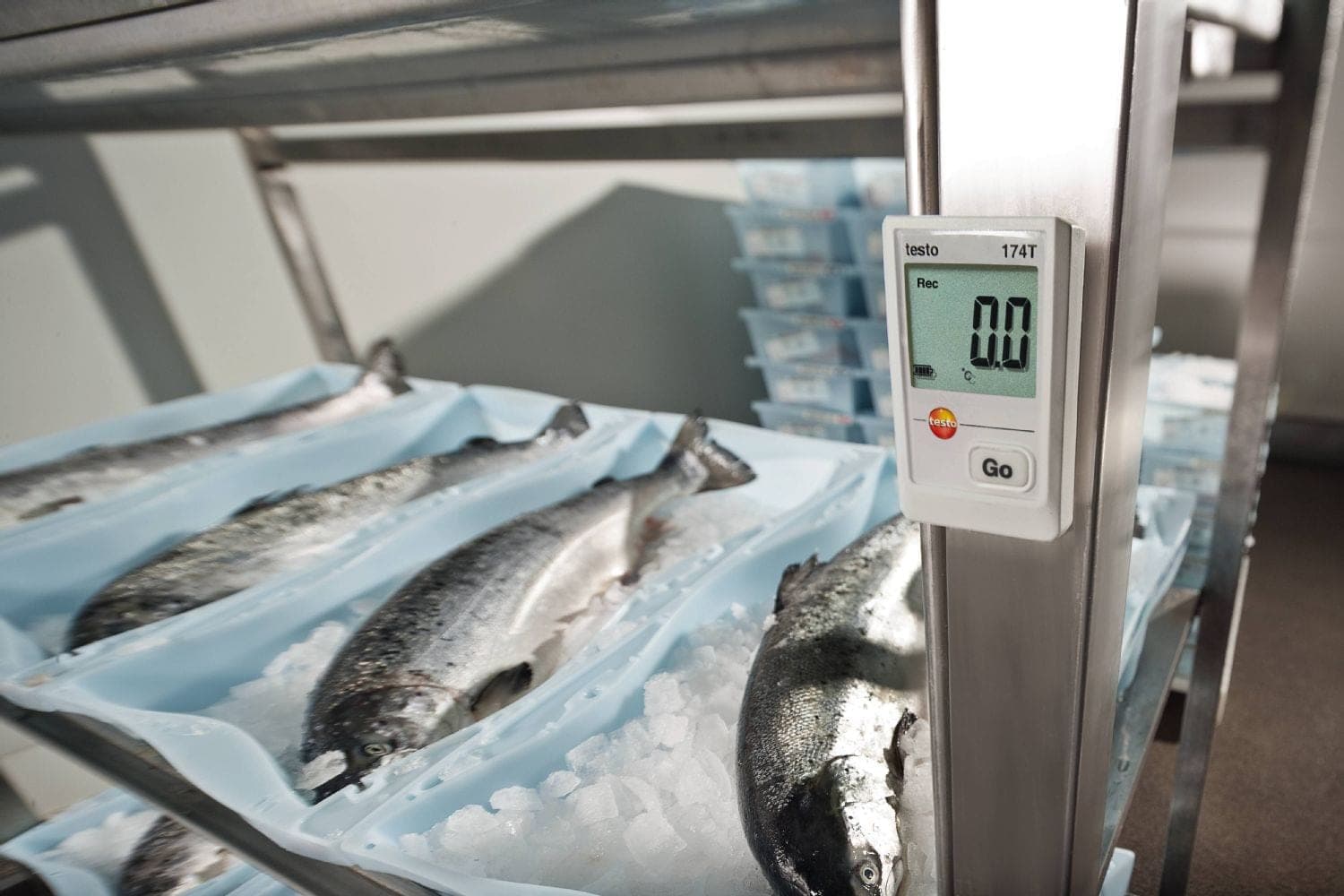

The testo 174T mini temperature data logger meets the requirements of EN 12830 and is HACCP-compliant, as well as having international HACCP certification, which means it is ideally suited for measurements in the food industry (e.g. for storage temperature measurement). Particularly practical: the data logger has water spray and jet protection according to IP 65. This enables it to be left in the measuring location even when warehouses are being cleaned. The temperature data logger is also suitable for temperature control in refrigerators or cold stores, because it can be used at temperatures down to -30 °C.

Programming and analysis with the mini temperature data logger

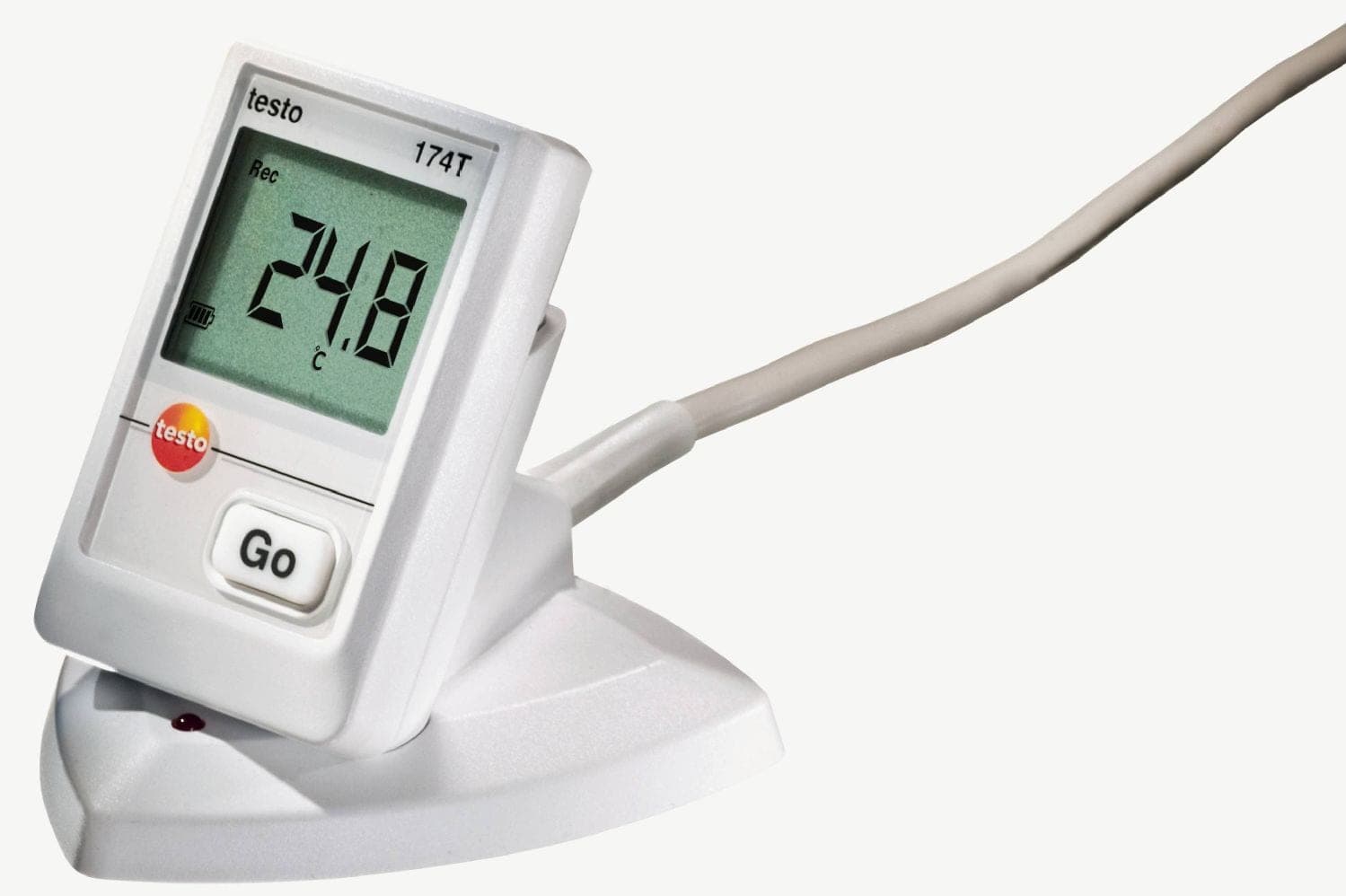

You need a testo USB interface for programming and reading the mini temperature data logger 0572 0500

You can choose between three software versions for programming and reading your data logger and for analysing the measurement data on the PC:

ComSoft Basic software – available as a free download – for fast programming of the temperature data logger and easy data analysis
ComSoft Professional software – can also be ordered as an option – offers a variety of possibilities for detailed analysis of temperature readings
ComSoft CFR 21 Part 11 software – can also be ordered as an option – the best solution for special requirements according to CFR 21 Part 11 in the pharmaceutical sector

Delivery Scope

Testo 174T mini temperature data logger, including wall bracket, batteries (2 x CR 2032 lithium) and calibration protocol.

Temperature – NTC

Measuring range

-30 to +70 °C

Accuracy

±0.5 °C (-30 to +70 °C)

Resolution

0.1 °C

General technical data

Weight

35 g

Dimensions

60 x 38 x 18.5 mm

Operating temperature

-30 to 70 °C

Product-/housing material

Plastic

Protection class

IP65

Channels

1 internal

Product colour

white

Standards

EU-guideline 2014/30/EU; 2011/65/EU

Measuring rate

1 min – 24 h

Battery type

2 x 3V button cell (CR 2032)

Battery life

500 days (15 min measuring cycle, +25 °C)

Memory

16,000 measuring values

Storage temperature

-40 to +70 °C
