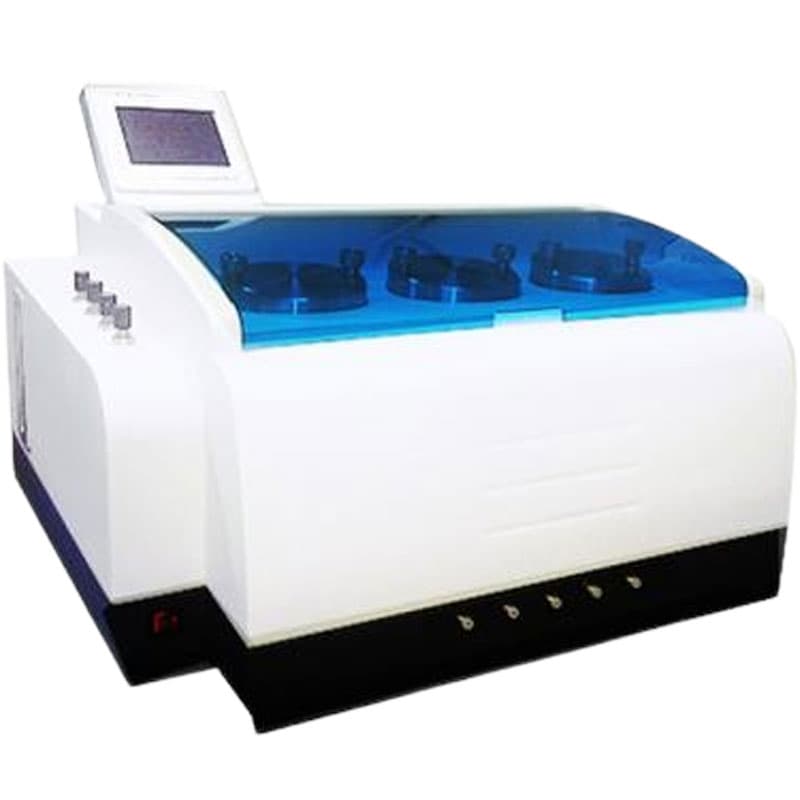

Y310 Oxygen Transmission Rate Tester For PE Films
Manufactured by GBPI Testing Instruments
The coulometric sensor method utilised in this state-of-the-art oxygen permeability tester allows for wide-ranging and high-efficiency analysis. This makes it the preferred choice for quality assurance in various industries, including electronics, food, medical devices, and pharmaceuticals.
It has a robust design and conforms to ASTM D3985 standards, making it an indispensable tool for manufacturers and researchers alike.
Price on quotation
Benefits
- Automatic temperature monitor, programme controlled temperature increase and decrease, precision: 0.1°C.
- Humidity control: dual gas method, stable, precision 1%RH; gas flow auto compensation.
- Test range can extend to 260000 cm3/(m2 ·24h) by installing extra fittings.
- Three chambers can do an independent test and independent report for two different samples; supporting cross testing of two chambers.
- Built-in computer has a touch screen and can work without an external computer.
- Real-time display and auto record of curves and data of transmission rate, oxygen density, humidity and temperature.
- Will not change the properties of test sample during testing, supporting continuous testing in certain temperature and humidity.
- Standard gas calibration and standard film calibration.
The Y310 Oxygen Transmission Rate (OTR) Tester can be applied to:
- Plastic film, composite film, aluminium foil, aluminised film, etc.
- Sheet, panel, rubber, ceramics, etc.
- Packaging containers, such as: glass, bottle, cans, boxes, etc.
- Expanding application: solar panel, LCD film, medical patch, etc.
Standards
GB/T19789-2005, YBB00082003-2015, ASTM D3985, ASTM F2622, ASTM F1927, ASTM F1307, ISO 15105-2, JIS K-7126-B, DIN 53380-3
Technical Data
Test range: 0.01~16,500 cm3 /(m2·24h·0.1MPa) (film) max possibility by adding veil: 260000 cm3/(m2 ·24h)
Test accuracy: 0.001cm3
Temperature range: 15~45°C (5~50°C Optional)
Temperature accuracy: ±0.1°C
Humidity range: 30~90%RH, 100%RH
Humidity accuracy: ±1% RH
Number of test sample: 1~3 pieces
Test area: 50.24 cm2
Sample size: Φ 100mm
Sample thickness: ≤3 mm
Carrier gas pressure: 99.999% N2 (user provide)
Gas supply pressure: 0.1~0.2 Mpa
Carrier gas port: 1/8 inch metal port
Power supply: 220V 50Hz
Power: 750W
Dimensions: 700mm x 560mm x 370mm
Weight: 100kg
