Benefits
- Capable of measuring strain, rotation and extension in any orientation and providing outputs to a UTM load frame for further analysis such as tensile and compressive modulus, Poisson’s ratio, and R-value.
- Precise measurement of material properties, including shear strain, rotation, buckling, and strain over multiple points to match individual users specific needs.
- Produces a detailed video archive of specimen tests, enriching the understanding of material properties without physically touching the specimen.
- Using stereoscopic technology, the UVX3D offers a flexible and tolerant working distance for a variety of machine, setup and specimen shapes, sizes, and geometries.
- Eliminates errors due to out of plane movement or bending.
- Ideal for determining low strain material properties (from 0.01%).
- Alternative solution to contacting sensors, extensometers, LVDTs, and strain gauges.
- Factory verified, ready to measure out of the box.

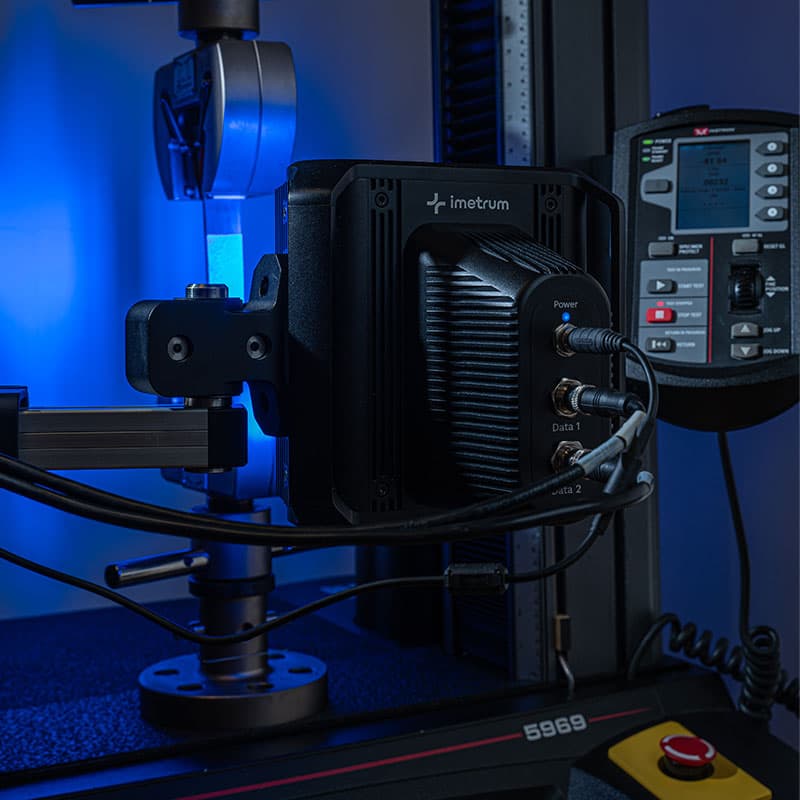

- Mounts and interfaces directly to UTMs.
- 1000 Hz measurement speed.
- Suitable for ambient and non-ambient testing.
- Calibration to ASTM E83 and ISO 9513.

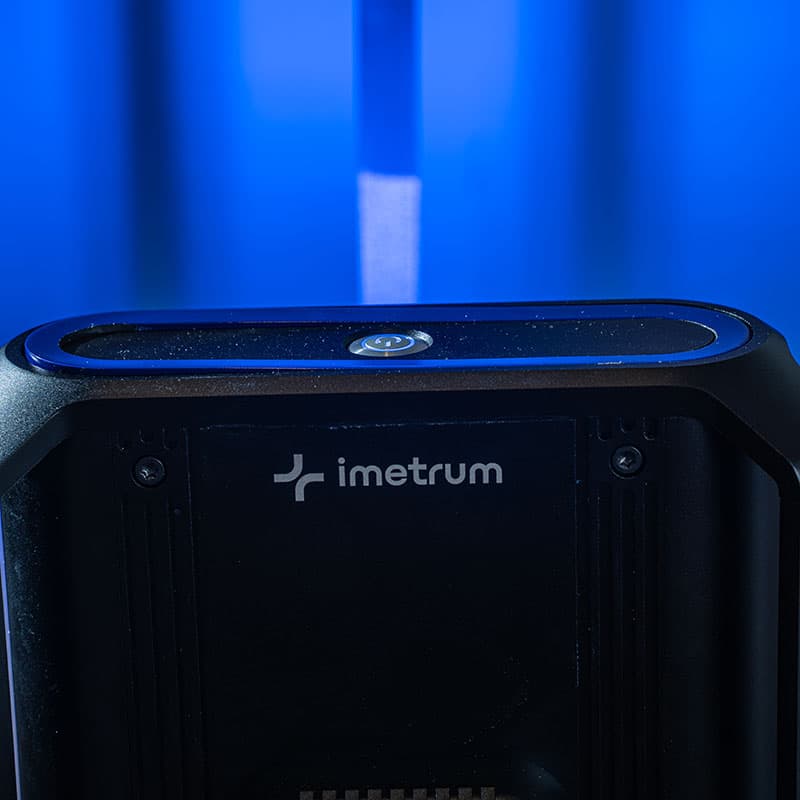

- Inbuilt lighting negates both environmental effects and emitted radiation from specimens tested at high temperature.
- A marking kit is included with stamps, pens, and inks for a range of different specimens.
- Digital Image Correlation strain and displacement maps available as an option.
- Post processing available on all systems to reanalyse and reconfigure tests.
Suitable measurement applications

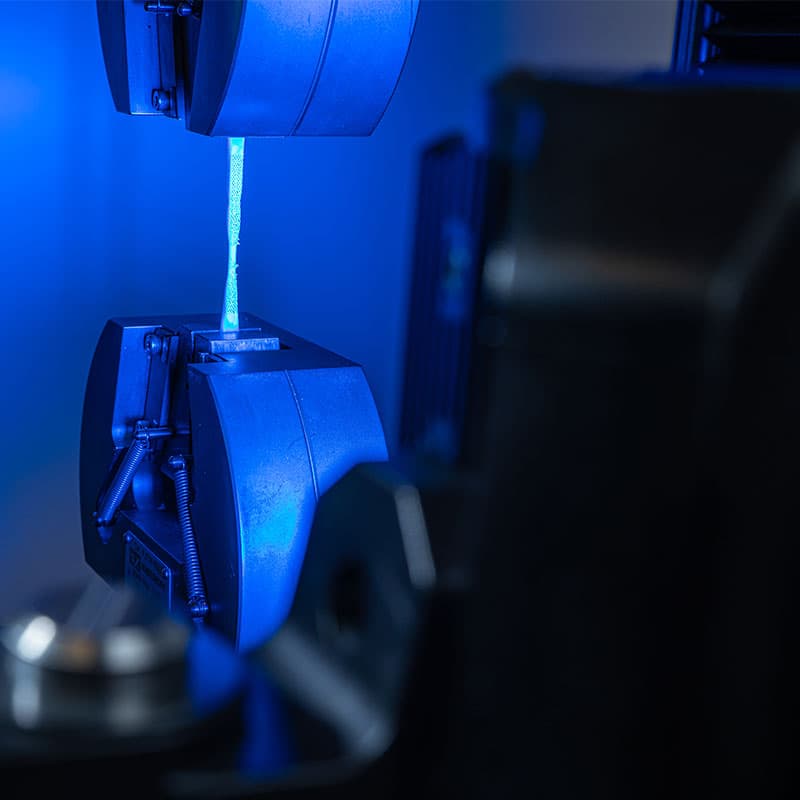

- Uniaxial; Tensile, Compressive, Flexural or Shear.
- Biaxial; Transverse, Dual-Average.
