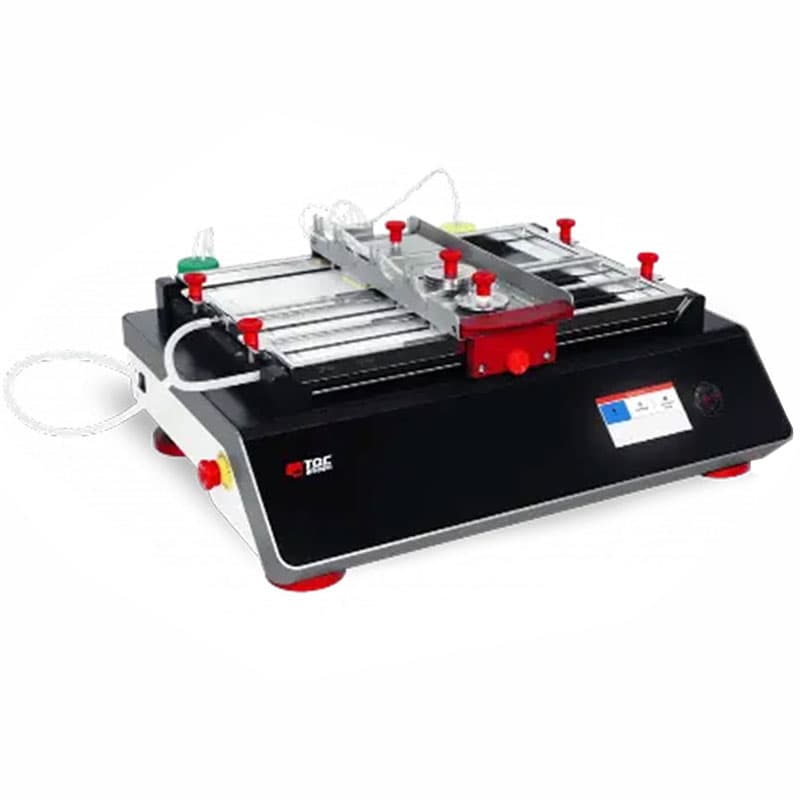

TQC Sheen Scrub Abrasion & Washability Tester
Manufactured by TQC Sheen
Our robust abrasion tester is suitable for a wide range of scrub, abrasion, and washability tests. Depending on the model you choose, it measures scratch, wear, and colour resistance loss caused by dry and/or wet abrasion.
This abrasion scrub tester is driven by a micro-step controlled electro motor to deliver precise and steady speed and sinus waveform control.
Price on quotation
Benefits
- Preset range — you can decide to set a ‘pass or fail’ test to a specified number of strokes, or you can define the minimum number of strokes at which a coating will fail by checking at regular intervals.
- By simulating everyday wear from cleaning actions or general use, it ensures your paints, varnishes, and coatings are up to scratch.
- Flexible adaptation to many tests.
- Intuitive operation kicks in with the flick of a jog-dial switch.
- Multi-lingual operating menu on a large illuminated display makes for easy operation.
- Unique ‘triple i’ operating interface guides you through the interface of TQC Sheen lab-machines.
- Operating menu detects which buttons are active and illuminates them. This intuitive system is further enhanced with information on the machine’s display.
- Modular system helps you to vary your approach to match different testing standards, cutting laboratory costs.
- Meets international standard requirements of ASTM, ISO and DIN (See Specifications for full Standards list).
- Easy to update software.
- Manual movement.
- Compatible with a large range of accessories (See Models & Accessories).

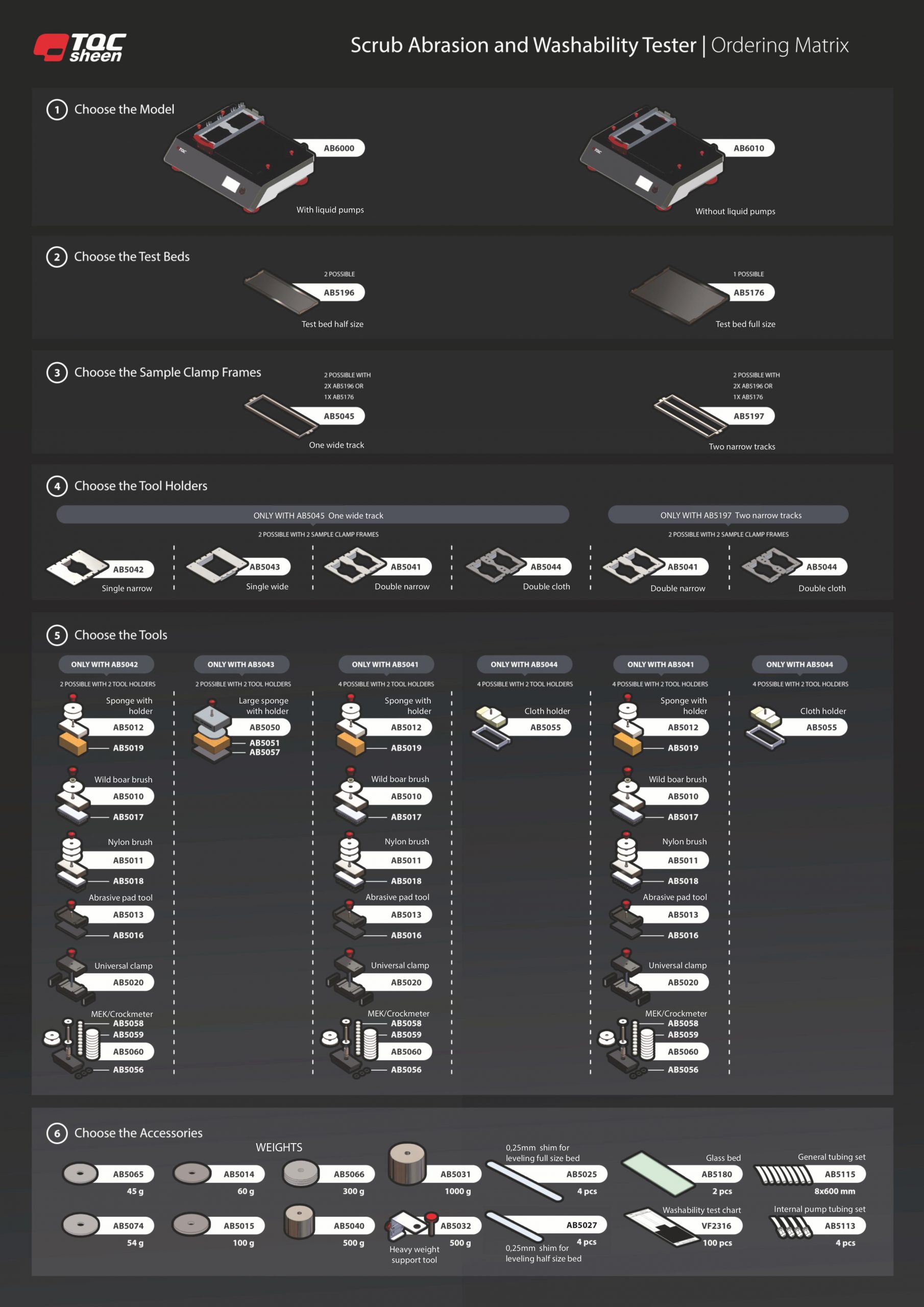

Choice of Models
First the base apparatus has to be selected from two models. If you only need dry testing, then our basic abrasion tester (Art. Nr. AB6010) does the job. Prefer to have both dry and wet testing options? Our pump-kitted standard model (Art. Nr. AB6000) gives you that extra capability.
Each base unit is completely flexible and allows for easy exchange of the tools used for testing.
Suitable Applications & Materials
Applications: Abrasion testing, washability testing.
Materials: Aluminium, glass, metals, paper, steel, textiles.
Standards
DIN 53778, ASTM D2486, ASTM D4213, ASTM D4828, ASTM D3450, ISO 11998, ASTM F1319, ISO 105X12, Renault
D431010, GME 60269, ECCA T11, EN 13523-11, EN 60730-1, EN 13300.
Technical Data
Dimensions: 490x640x235 mm / 19.3×25.2×9.24 in
Controls: 5-key Navigation Switch, Mouse and Keyboard Optional
Display: 480 x 272 pixel TFT panel
Energy consumption: Max. 50 Watt
Height with Pumps: 530 mm / 20.87 in
Mass: 33 kg
Max. panel width: 70 mm / 2.76 in
Max. panel thickness: 35 mm / 1.38 in
Max. panel length: 350 mm / 13.78 in
Pump Flow Rate: 0.0 – 3.0 ml per minute / 0.0 – 0.79 GPH
Stroke length: 20 – 300 mm / 0.39 – 11.81 in
Stroke length accuracy: +/- 0.01 mm
Traverse Speed Accuracy: +/- 1% of set speed
Traverse speed: 1 – 60 cycles per minute
Power supply: 100 – 240VAC / 50 – 60Hz
Depth: 490mm . 19.3in
Depth with pumps: 530mm / 20.87in
Width: 640mm / 25.2in
Height: 235mm / 9.24in
Mass: 30-35kg / 66.14 – 77.16 lbs
Power supply: 24 VOC / 100-240 V / 50-60 Hz
Power consumption: max. 90 Watt
Menu languages: English, Spanish, Chinese, Polish, German, French, Italian, Japanese, Russian, Turkish
