TQC Sheen Multi Spindle Viscometer

TQC Sheen Multi Spindle Viscometer

Manufactured by TQC Sheen

This innovative, digital multi spindle Viscometer conforms to the Brookfield viscosity testing approach, and is ideal for a wide range of viscosity testing applications, including biochemicals, paints, food, cosmetics, inks, latexes, starches, and solvent-based adhesives.

The Brookfield viscometer principle is based on a laboratory method that inspects the viscosity of a fluid by measuring the force needed to turn a spindle through it at a specific speed.

It supports variable viscosity measurements between 0,3 and 100 rpm, and is integrated with high-tech touch-screen technology to measure viscosity accurately, conveniently, quickly, and reliably.



Benefits

  • Stable rotation speed, strong anti-interference performance, and wide working voltage ensure accurate results test after test.
  • Intuitive reading and high measurement accuracy.

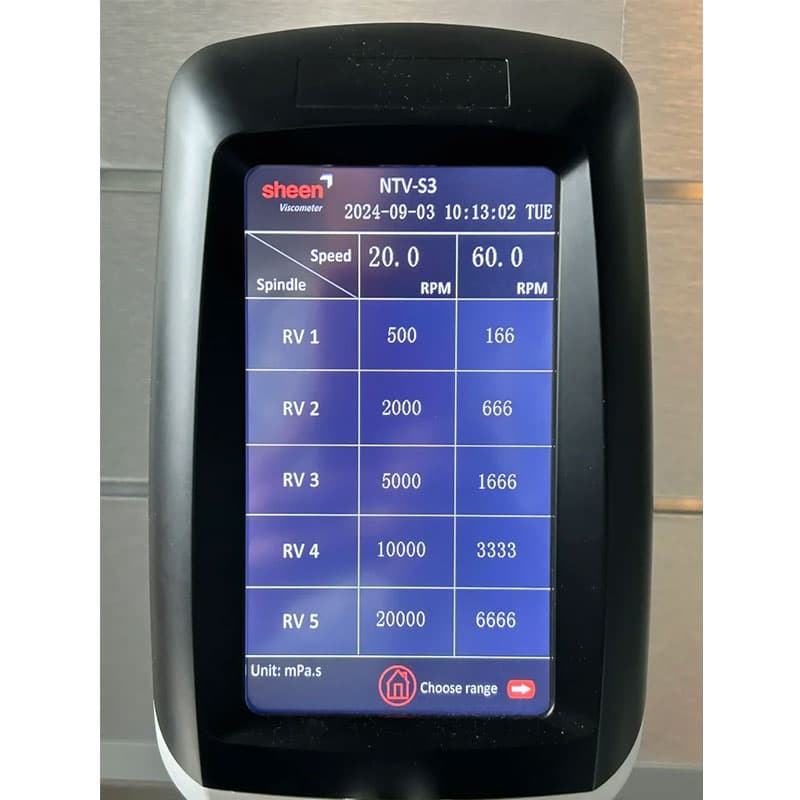

  • 7-inch colour touchscreen provides a comprehensive and visual display of various parameters and operating conditions.
  • Custom selectable spindle and speed combinations helps you quickly and accurately obtain sample viscosity and related data.
  • Comes supplied with a choice of six RV spindles in a protective case (See Specifications for spindle set details).

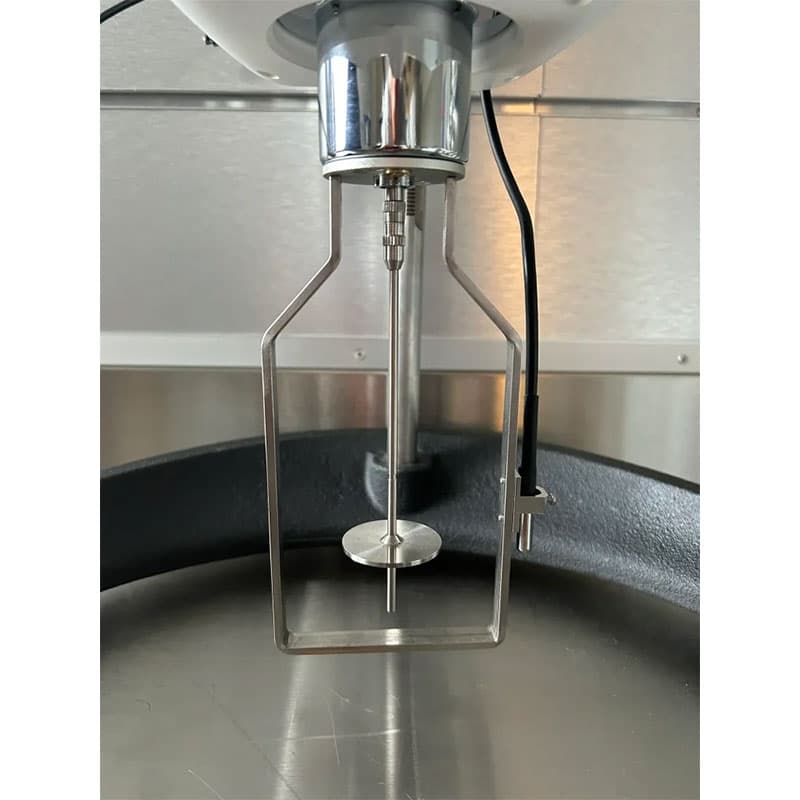

  • Spindle protection frame prevents the installed spindle from being damaged.
  • Choose from the following viscosity units of measurement: mPa.s, Pa.s, dPa.s, cP, P, and cPs.
  • Enjoy automatic conversion of dynamic viscosity and kinematic viscosity.
  • Continuous viscosity values shown.
  • Extensive help screens enable you to solve any issues promptly.
  • Full scale linear correction.
  • Temperature probe enables you to measure temperature and viscosity simultaneously.
  • Calibration oils available (have to be ordered separately).

Suitable Applications & Materials

Applications: Viscosity testing.

Materials: Inks and coatings.

Technical Data

Measurement range: 100 – 13M mPa.s / cP

Spindle speed: 0,3 to 100 rpm

Spindles: #2, #3, #4, #5, #6  and #7 included (#1 is optional)

Measurement accuracy: ±1.0% of full range

Repeatability: ± 0,2% of full range

Power supply: AC100-240V, 50Hz/60Hz

Power Output: DC12V 1.5A

What’s Included?

  • Multi Spindle Viscometer

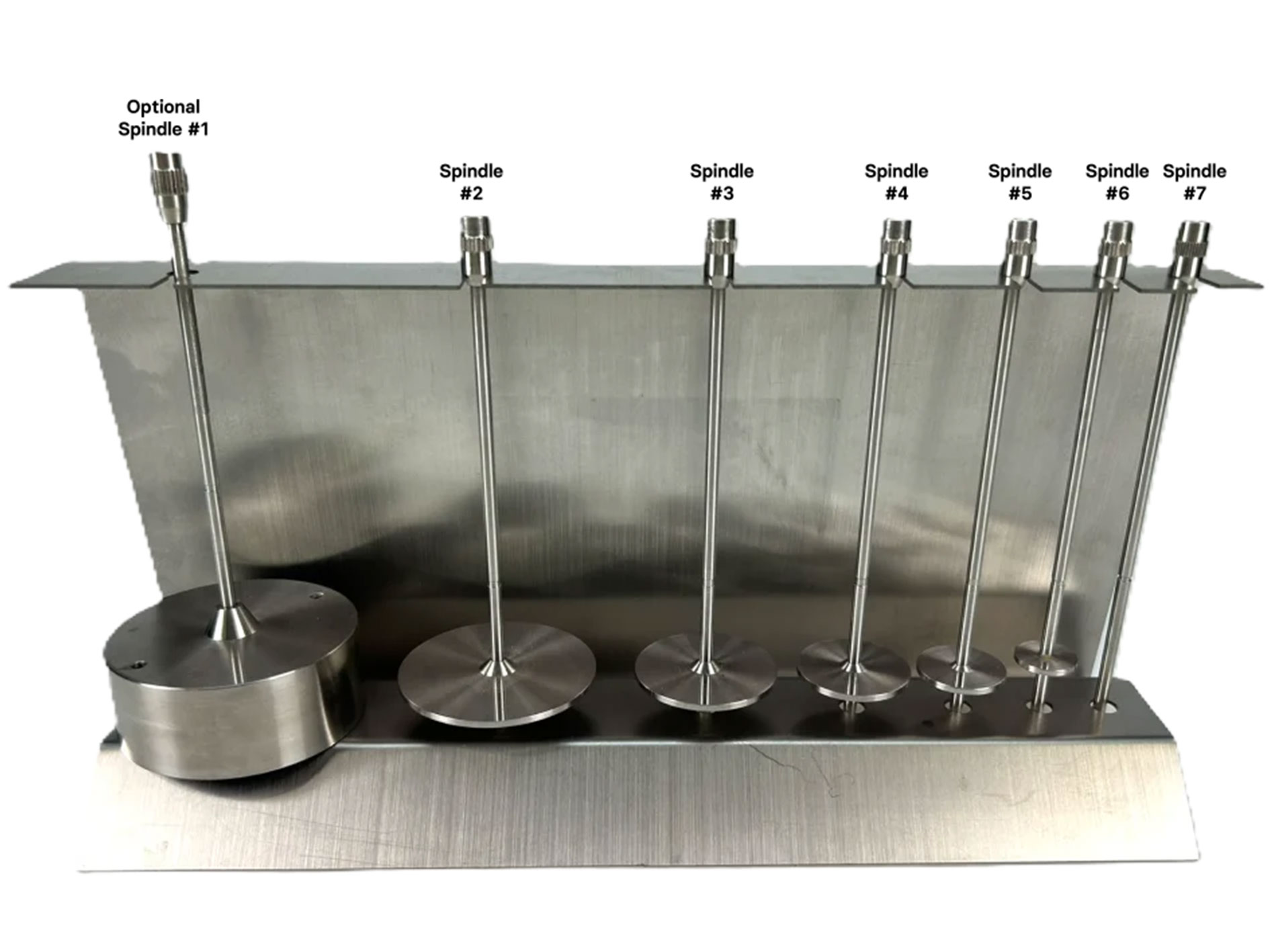

  • Spindle set: #2, #3, #4, #5, #6, #7 (#1 optional)

























  • Base and mounting rod
  • 100 – 240 VAC adapter
  • Manual
  • Certificate
