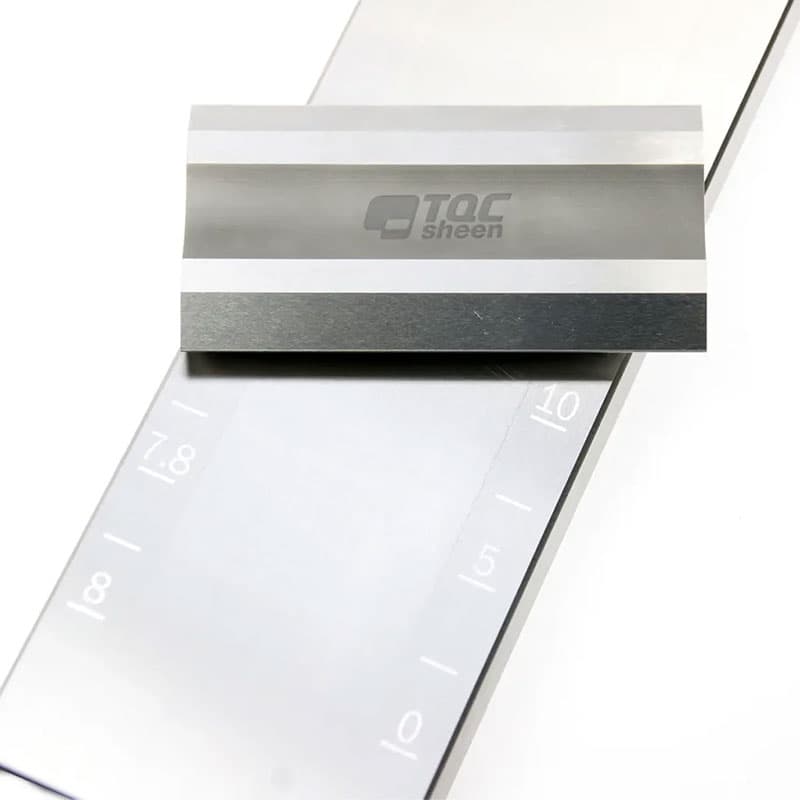

TQC Sheen Grindometer Fineness of Grind Gauge
Manufactured by TQC Sheen

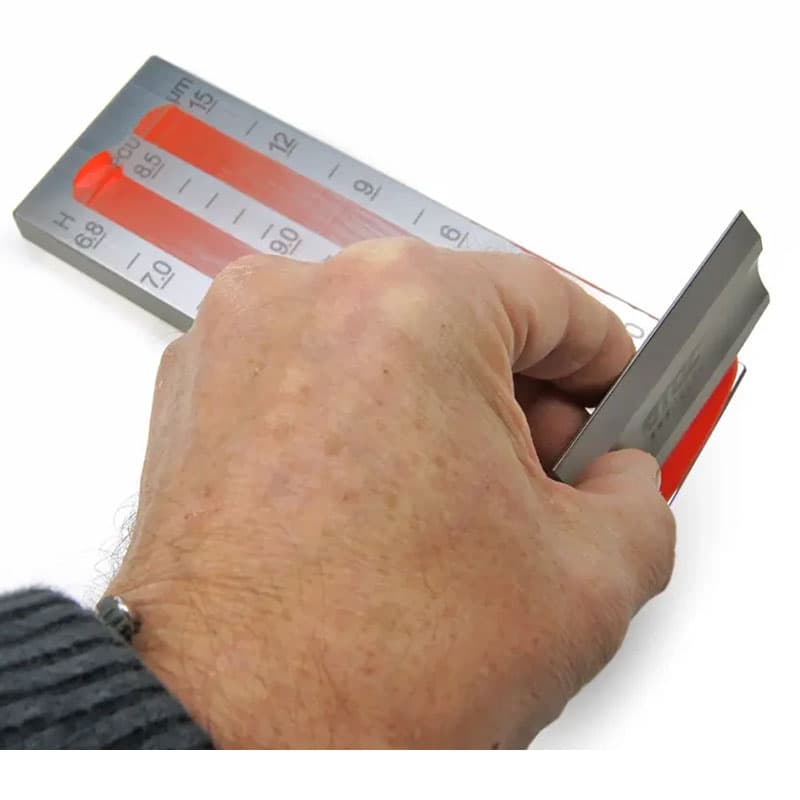

Available in three models (single, double, or wide groove), this ergonomically designed grindometer is used to determine the particle size and fineness of many materials, including fillers, food, paints, pigments, and lacquers.
It is made from hardened stainless steel with an accuracy of 2 µm, and corrosion-resistant for long-lasting use.
Price on quotation
Benefits
- Simple yet effective way to measure the uniformity of particles contained.
- Relied upon for all kinds of paint testing, smoothness testing, pigment testing and sample testing.
- Ideal for end users who inspect the content of their product ingredients during the production process.
- Comes with a carry pouch for easy and safe transportation.
- Multiple graduations available.
- Manual and calibration certificate.
- Depending on the selected model there are three different parameters: Microns (µm), Hegman (NS), and North (PCU).

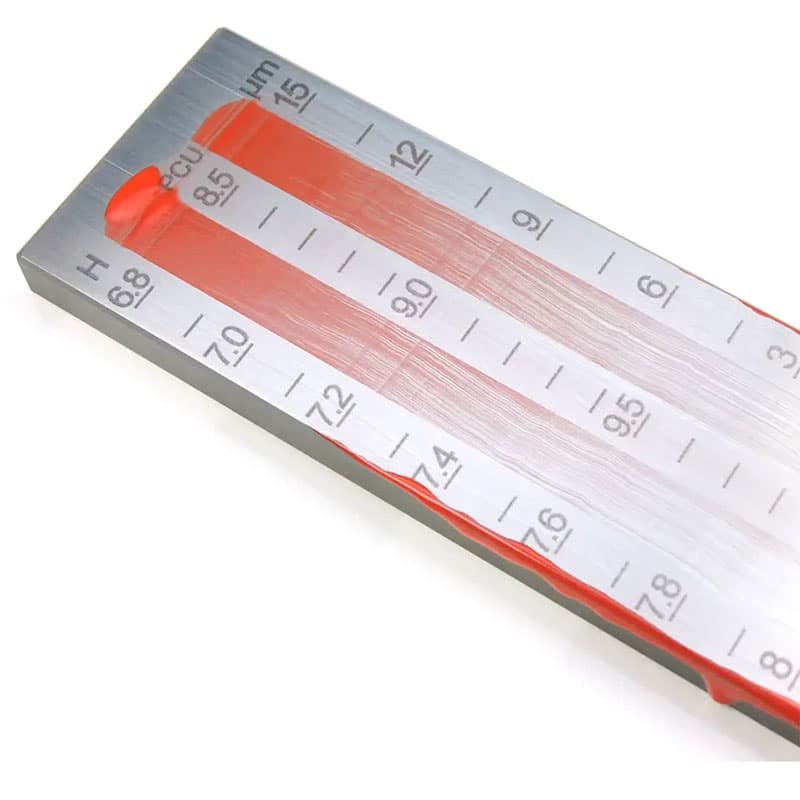

- Double grooves with graded slopes graduated in different parameters: Microns (µm) , Hegman (NS), and North (PCU)
- Single wide groove with the parameters: Microns (µm), Hegman (NS).
- Single groove with the parameter: Microns (µm).
Suitable Applications & Materials
Our grindometers are used for all sorts of applications across industries including: agriculture, automotive, beverage, construction and civil engineering, cosmetics, defence, education, food, industrial, inks and coatings, marine, medical devices, paper and pulp, and pharmaceutical.
Applications: Fineness of grind testing, paint testing, sample testing, smoothness testing.
Materials: Composites, concrete, elastomers, film, inks and coatings, liquids, pigments.
Base Dimensions: 175 x 60 x 12 mm with 120 mm groove length
Scraper Dimensions: 75 x 38 x 8 mm
Accuracy: ± 2 µm
| Groove Type | Scale | Article Number | µm | H | PCU |
|---|---|---|---|---|---|
| Double | 0 – 15 | VF2110 | X | X | X |
| Double | 0 – 25 | VF2111 | X | X | X |
| Double | 0 – 50 | VF2112 | X | X | X |
| Double | 0 – 100 | VF2113 | X | X | X |
| Double | 0 – 250 | VF2118 | X | X | X |
| Double | 0 – 500 | VF2124 | X | ||
| Single | 0 – 15 | VF2104 | X | ||
| Single | 0 – 25 | VF2105 | X | ||
| Single | 0 – 50 | VF2106 | X | ||
| Single | 0 – 100 | VF2107 | X | ||
| Single | 0 – 250 | VF2108 | X | ||
| Single | 0 – 500 | VF2109 | X | ||
| Wide | 0 –15 | VF2120 | X | X | |
| Wide | 0 –25 | VF2121 | X | X | |
| Wide | 0 – 50 | VF2122 | X | X | |
| Wide | 0 – 100 | VF2123 | X | X | |
| Wide | 0 – 250 | VF2125 | X | X |
Optional Accessories
- TQC Sheen Grindometer spare scraper.
- TQC Sheen Grindometer tool for TQC Sheen Automatic Film Applicator. This device allows you to clamp a TQC Grindometer scraper onto the TQC Automatic Film Applicator.
- TQC Sheen Pouch for Grindometer.
