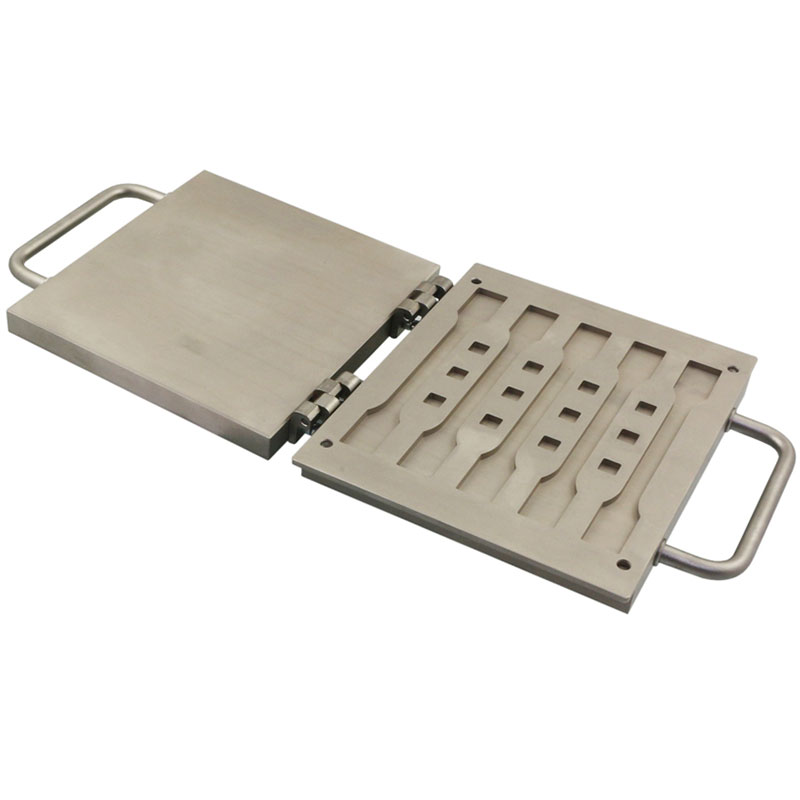

THS1390-MLD-10×80-ISO527-2-Type1A-ISO604-TypeB
Mould for plastic sample preparation for determining tensile properties and compressive properties, according to ISO527-2 Type 1A, ISO604 Type B.
Size: 10 x 80 mm.
THS1390-MLD-150x150x2.5-ASTM-D3182
Mould for rubber sample preparation.
According to ASTM-D3182.
Size: 150 x 150 x 2.5 mm.
THS1390-MLD-200×12.5-BISFA-E12-ASTM-D2229
Steel, nickel coated mould to test adhesion between steel tire cords and rubber according to BISFA-E12-ASTM-D2229.
Dimensions: 200 x 12.5 mm.
THS1390-MLD-212×12.5-GOST26366-Fig.4
Mould to test brass-plated steel wire for bead rings of tyres, according to GOST26366-Fig.4.
Size: 212 x 12.5 mm.

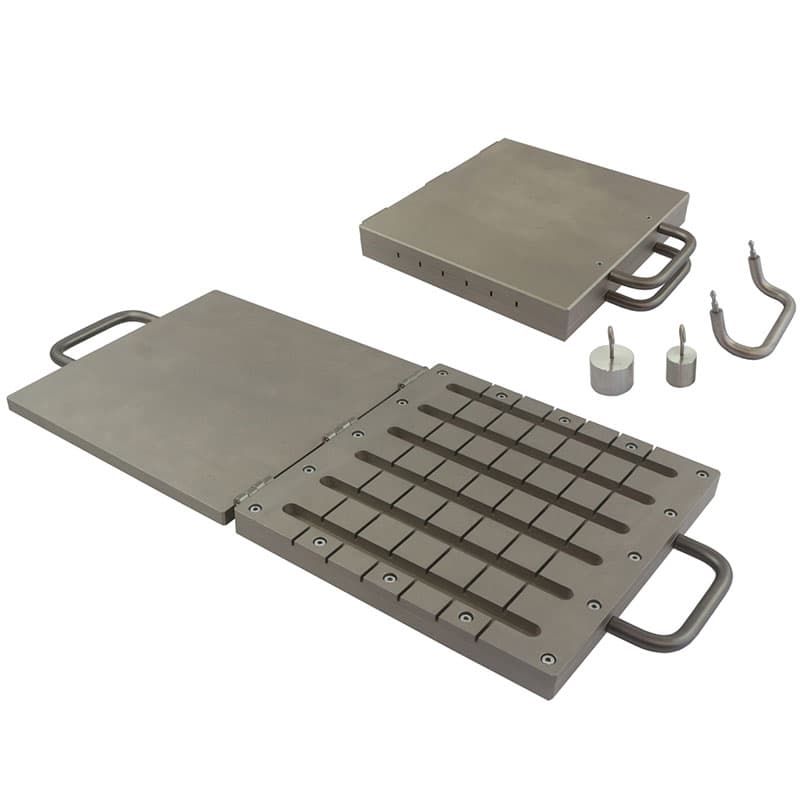

THS1390-MLD-2×25-GOST26366-Fig.2 + THS1390-MLD-100g+200g
Steel,nickel-plated mould to test brass-plated steel wire for bead rings of tyres, according to GOST26366-Fig.2.
Inc. 2 weights 100g and 200g.
Size: 220 x 220 x 8 mm (H x W x H).
Slit for cord: 2mm wide.
THS1390-MLD-2x150x150
Steel, nickel-plated mould for rubber sample preparation.
Size: 150 x 150 x 2mm.
THS1390-MLD-3x150x150
Special mould for sample preparation.
Size: 3 x 150 x 15 mm.
THS1390-MLD-12.7x127x127
Special mold for sample preparation
Size: 12.7 x 127 x 127 mm
Please see THS1390 Moulds For Sample Preparation – Datasheet for full standards and specifications.
