Novo-Curve 4 Gloss Meter

Name: Novo-Curve 4 Gloss Meter
Brand: Rhopoint Instruments
Availability: InStock

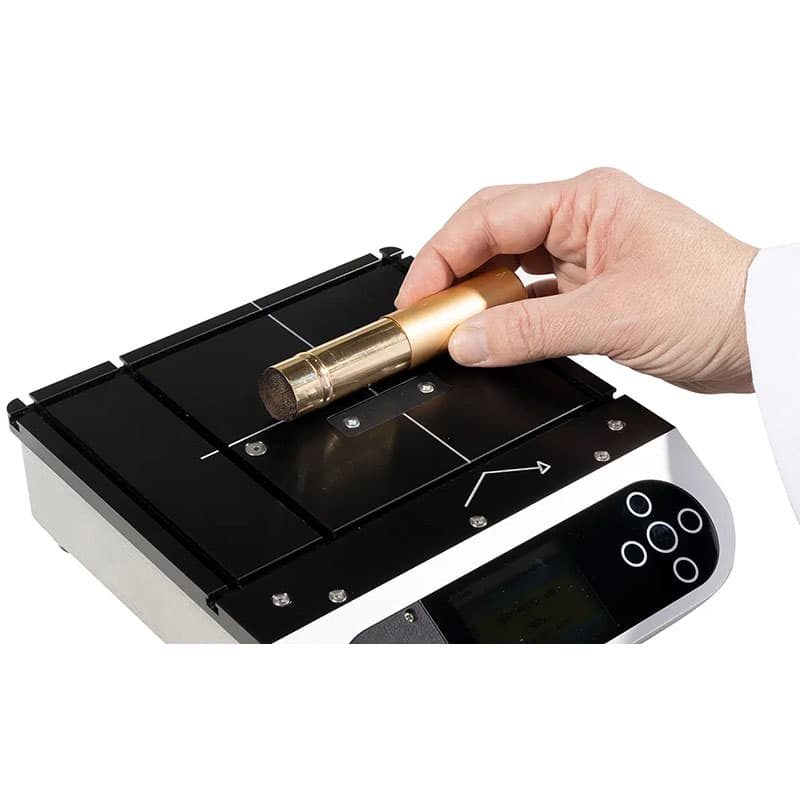

The Novo-Curve 4 benchtop glossmeter has been specially designed optics for accurately measuring the gloss at 60° of curved surfaces and small areas.

Multiple options exist to increase the repeatability of gloss measurement of irregular sample shape, while moveable jigging posts ensure cylindrical objects can be positioned correctly and measured in the same place each time.

Price on quotation

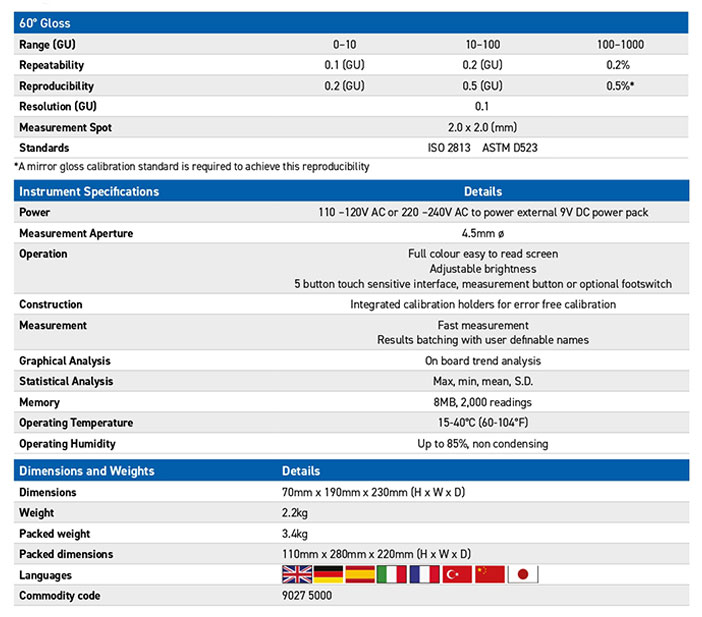

Data sheets

Benefits

Precisely measures small, curved or irregular surfaces.
On-board statistical analysis of batch readings (Max, Min, Mean, SD, and CV).
For curved systems, the correct gloss value is the peak value identified on the sample, with continuous read mode on the Novo-Curve greatly simplifying the process.
Simple jigging system.
Supplied with standards calibrated and certified according to ISO 17025 UKAS.

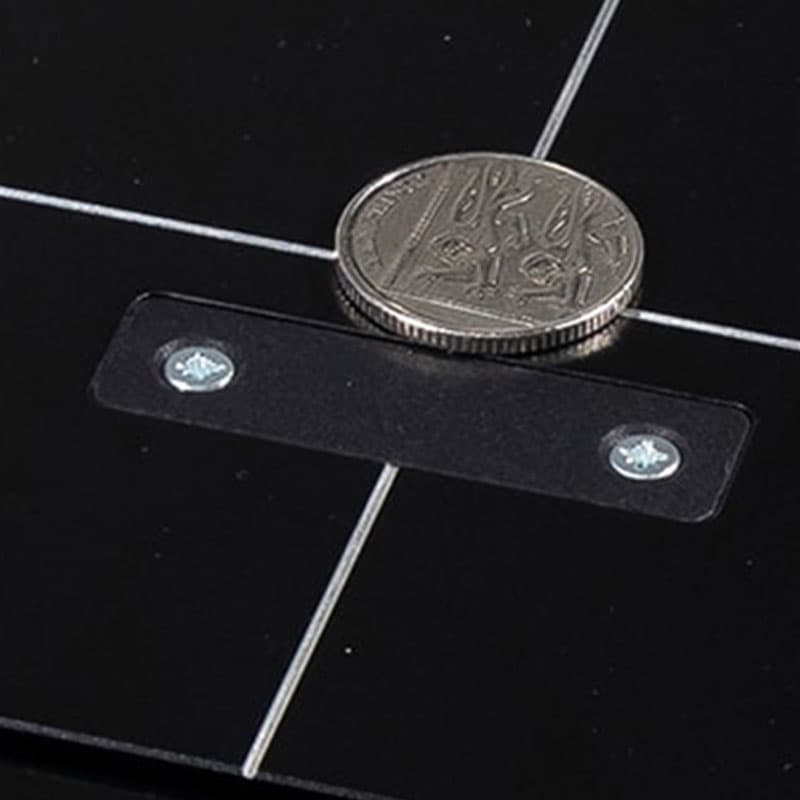

2mm x 2mm measurement spot.

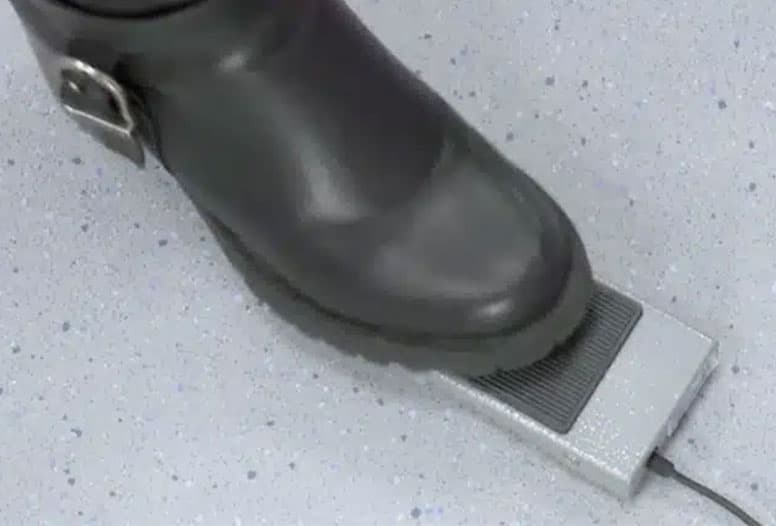

Hands-free operation enables you to easily manipulate the sample for measurement.
Full statistical analysis.

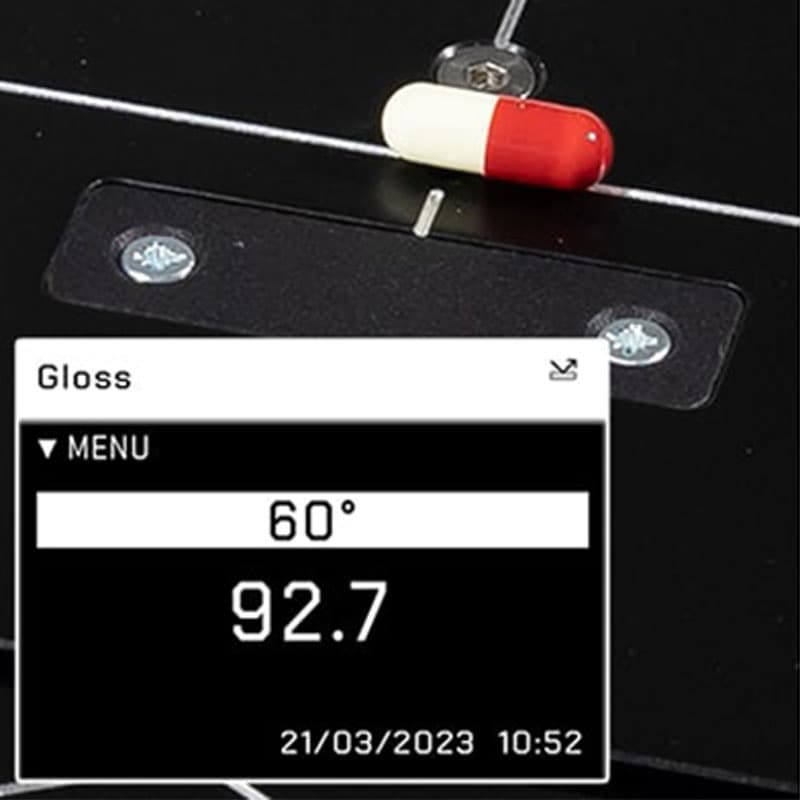

Constant read feature.
Measures matt to mirror finish.
Download, analyse, and store readings in Novo-Gloss Multi Gauge software.

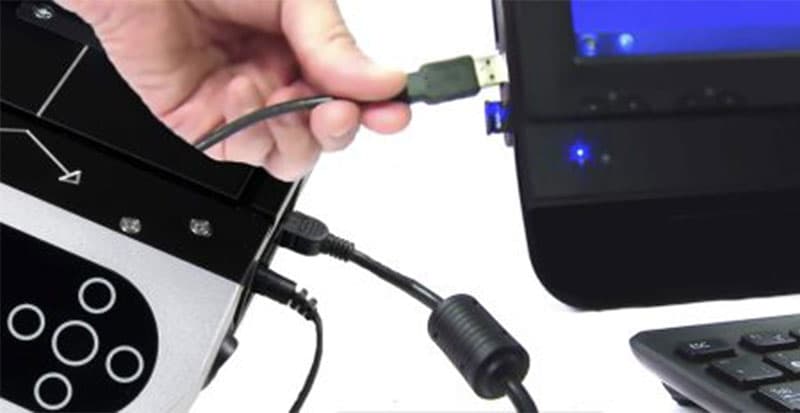

Direct transfer of reading to PC.

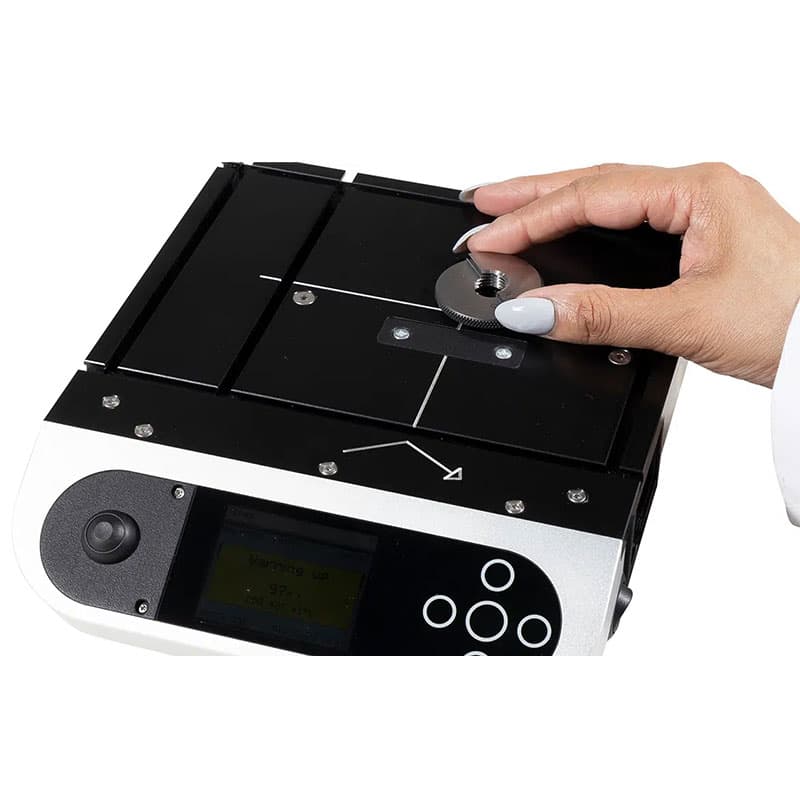

For faster gloss meter calibration, the instrument automatically detects when the calibration standard is attached.
Bespoke sample securing systems allow multiple samples to be measured in exactly the same place (requires additional accessory).
Custom adaptor jigs available.
Free extended 2 year warranty: Requires registration within 28 days of purchase. Without registration, 1 year standard warranty applies.
Free light source warranty — guaranteed for the life of the instrument.
