The angle reference is the angle between the incident and reflected light. The three common angles are 20°, 60°, and 85° these cover most of industries coatings applications.
| Gloss Range | 60° Value | Notes |
| High Gloss | >70 GU | If measurement exceeds 70 GU, measure at 20° |
| Medium Gloss | 10 – 70 GU | Measurements at 60° |
| Low Gloss | <10 GU | If measurement is less than 10 GU, measure at 85° |
AML can help you decide on the best Gloss meter for your application contact us today!
Or to read more about gloss measurement read our guide here

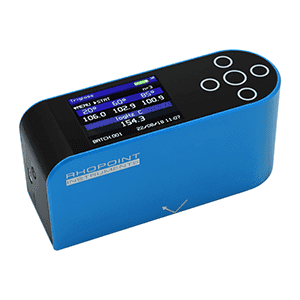

Novo-Gloss Trio 20/60/85˚ Features
- Onboard statistics & tread graphing
- Transfer readings to Excel or similar via Bluetooth without additional software and in real time
- Stores 2000 readings onboard
- Manufactured in the UK by Rhopoint Instruments
- Perfect for shop floor or laboratory use
- Easy to use
- Compliant to major international standards such as ASTM D523, ISO 2813, ASTM D2457
- Aluminium body
- 10,000+ readings per charge
- Supplied with calibration certificate as standard

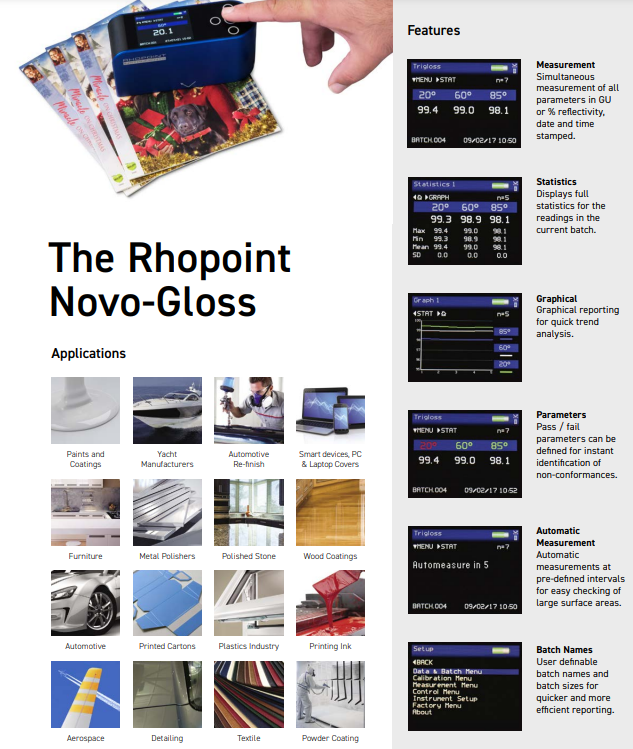

See data sheet for full range of features.
-
- Auto Calibration Tile Detection
-
- Results For All Angles Simultaneously
-
- Trend Analysis
-
- On Board Statistics
-
- User Set Pass / Fail Criteria
Do you need gloss meter calibration? AML’s engineers are highly trained and experienced at gloss meter calibration, service and repair for most manufacturers.
60°, 20/60°* and 20/60/85°* versions available
| 20° | Improved accuracy and resolution on high gloss & metallic samples (>70GU when measured at 60°) | |
| 60° | Universal angle – all gloss levels | |
| 85° | Improved resolution for matt finishes ( |
Resolution 0.1GU • Repeatability ±0.2GU • Reproducibility ±0.5GU (0-100GU)
Resolution 0.1GU • Repeatability ±0.2% • Reproducibility ±0.5%(100-2000GU)
Measurement range:
20º: 0-2000GU
60º: 0-1000GU
85º: 0-199GU
Standards:
ISO 2813, ISO 7668
ASTM D523, ASTM D2457
DIN 67530
JIS 8741, JIS K 5600-4-7
Instrument Specification
Operation
- Full colour easy to read screen
- Adjustable brightness
- 6 button touch sensitive interface
Construction
- Integrated calibration holder with in-position detector for
error free calibration
Measurement
- Single button push to measure all parameters
- Fast measurement
- Results batching with user definable names
Statistical Analysis
- Max, min, mean, S.D.
Graphical Analysis
- On board trend analysis
- Gloss values
Power
- Rechargeable lithium ion
- 17+ hours operation
- 10,000+ readings per charge
Memory
- 8MB= >2000 readings
- User defineable alphanumeric batching
Data Transfer
- Bluetooth
- PC compatible
- USB connection, no software install required
Measurement Area
- 20°: 6mm x 6.4mm
- 60°: 6mm x 12mm
- 85°: 4.4mm x 44mm
- Operating Temperature: 15 – 40 ° C (60 – 104 ° F)
- Humidity: Up to 85%, non condensing
Dimensions & Weight
- 65mm x 140mm x 50mm (H x W x D)
- 20/60/85º = 390g
- Packed weight: 1.6kg
- Packed dimensions: 110mm x 280mm x 220mm (H x W x D)
- Commodity code: 9027 5000
- ISO 2813 Paints and varnishes – Determination of specular gloss of non-metallic paint films at 20 degrees, 60 degrees and 85 degrees
- ASTM D2457 Standard Test Method for Specular Gloss of Plastic Films and Solid Plastics
- ASTM D523 Standard Test Method for Specular Gloss
- ISO 7668 Anodized aluminium and aluminium alloys — Measurement of specular reflectance and specular gloss at angles of 20°, 45°, 60° or 85°
- DIN 67530 Reflectometers a means for gloss assessment of plane surfaces of paint coatings and plastics
- JIS Z 8741 Specular glossiness – Method of measurement
