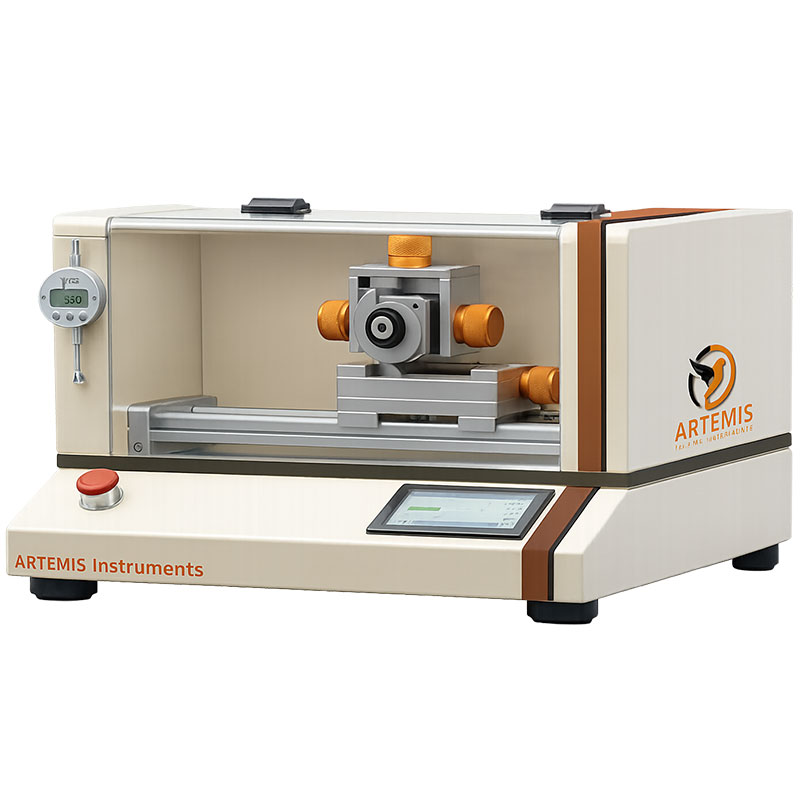

Motorised Notching Cutter

Name: Motorised Notching Cutter
Brand: Artemis Instruments
Availability: InStock

Raising the standard of what laboratories can expect from automated specimen preparation, this Motorised Notching Cutter is built firmly with efficiency in mind. It delivers consistent performance across routine plastics and more demanding engineering materials alike.

The anti-vibration guide rail system ensures exceptional profile accuracy, while the multi-sample vice holds up to 20 specimens (4mm thick), enabling a full batch to be notched in roughly 20 seconds.

Safety is also top priority. Fully polycarbonate guard encloses the cutting area and incorporates an electrical interlock, preventing operation when open and ensuring a safe, controlled workflow in busy lab environments.

Price on quotation

Data sheets

Benefits

Advanced adaptive microprocessor unit ensures feed and cutter speeds are always optimised for the material under test.
Clear, intuitive touchscreen interface.
All cutter parameters stored in onboard memory for rapid recall.
Cutter speeds ranging from 350 to 2350 rpm.
High-precision feed rates down to 0.05 mm/rev.
Auto return mechanism resets the vice for the next loading cycle.
Precision tools including micro height adjustment, a notch depth comparator, and a sample setting gauge guarantee uniform notch geometry across every specimen produced.
Tungsten carbide cutting wheels, each optically ground to minimise cutter load and maximise durability.
Meets stringent requirements of ISO 179, ISO 180, ASTM D256, and ASTM D6110.
UKCA/CE certified.
Fully traceable certificate of calibration and instrument user manual.
12 month warranty
Manufactured in the UK.
Multi-voltage from in 110-240 V – 50-60 Hz.
Full range of “V” and “U” notch profiles are available, alongside custom geometries for specialised applications.
