In-line Transparent Appearance Analysis, Haze, Sharpness, Clarity & Transmittance

In-line measurement of appearance properties of transparent materials

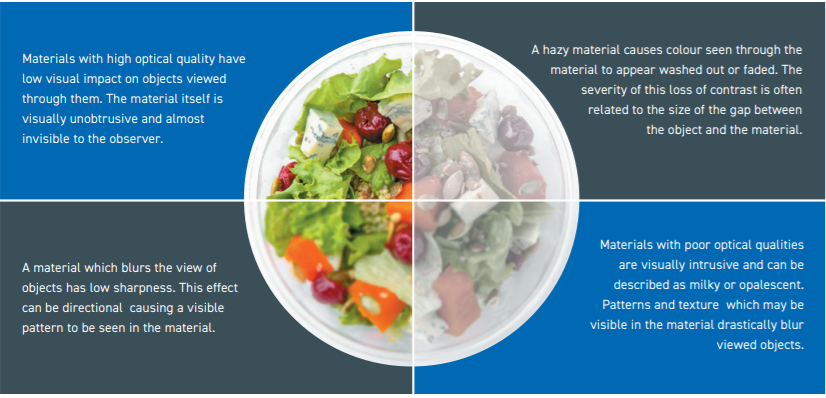

The visible optical properties of transparent product are key to both the perceived quality and the functionality of the material. For instance a shipping label requires good clarity to ensure it can be read on a high speed conveyor, while a salad try which is often has recycled content should have low haze so that the consumer can see the colours of the packed salad.

Until now these key optical properties could only be measured offline, The Rhopoint ID-Inline allows constant measurement of a number of key properties with instant feedback to allow the continuous process fine tuning and therefore better quality product with consistent optical properties from the start of the run to the very end.

Key Optical Properties Measured

Haze, measurement correlated with existing standards (ASTM D1003)
Sharpness
Clarity
Visible Transmittance

In-line Transparent Appearance Analysis, Haze, Sharpness, Clarity & Visible Transmittance

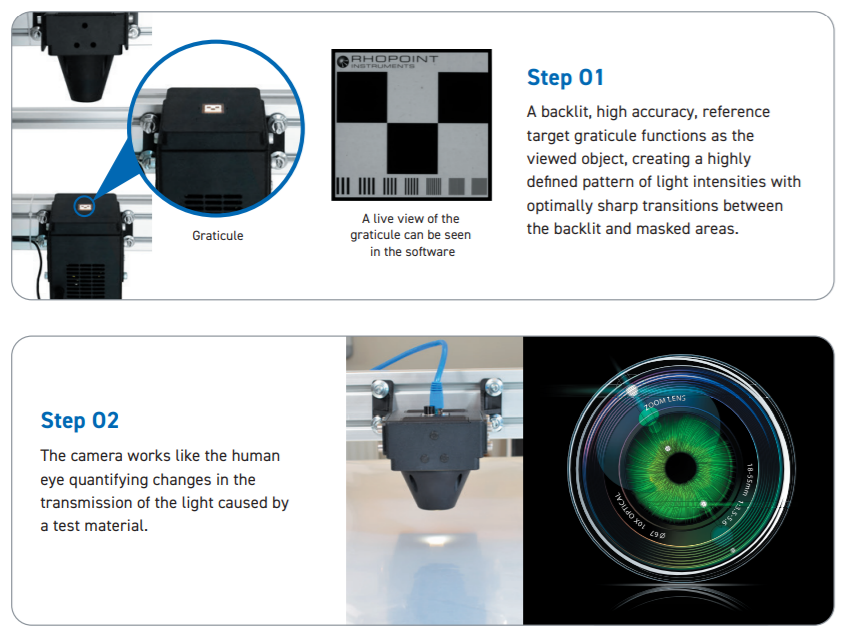

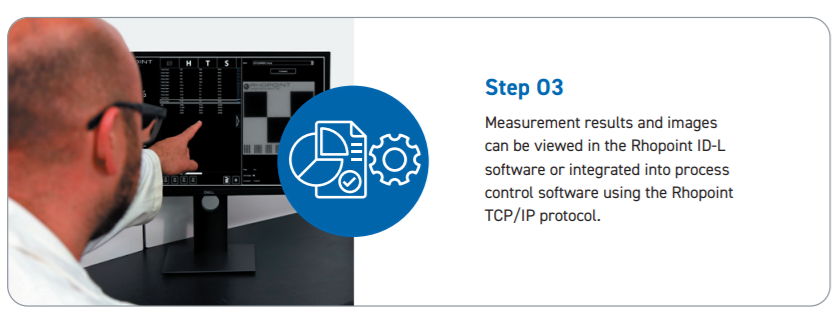

The Rhopoint ID-Inline is an advanced camera-based optical measurement system which fully quantifies product transparency
with parameters which are correlated to human perception.

Rhopoint ID-Inline Versions

Two versions of the Rhopoint ID-Inline are available.

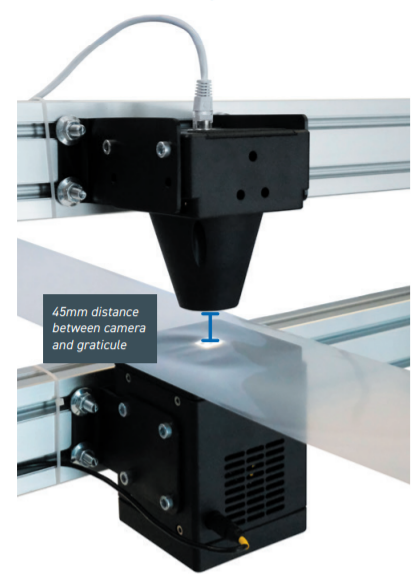

Short focal length, which has a 45 mm distance between the camera and graticule. This is best suited to measurement of films or glass in sheet form or inline measurement of glass and plastic tubes.

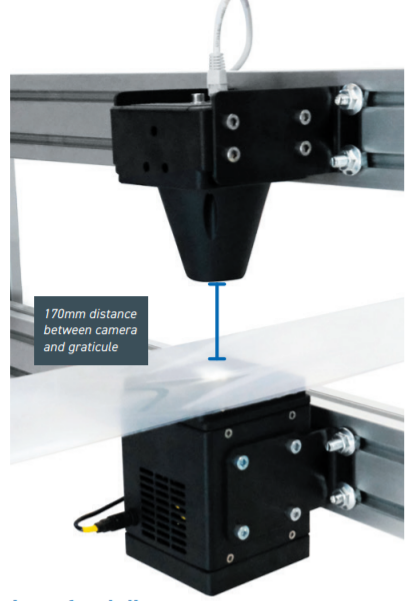

Long focal length which has a 170mm distance between the camera and graticule. This is best suited to for online systems where a longer focal length would be beneficial

Measurement Station

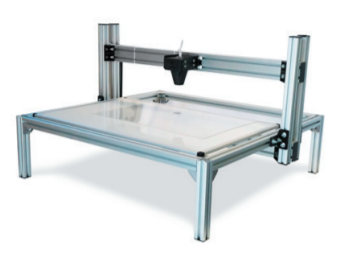

Either version can be incorporated into an inspection station for 3D parts or large sheets of plastic or glass.

Standard or extended clearance models are available to encompass a wide variety of parts and installation configurations.

See data sheet for detailed notes on this equipment
