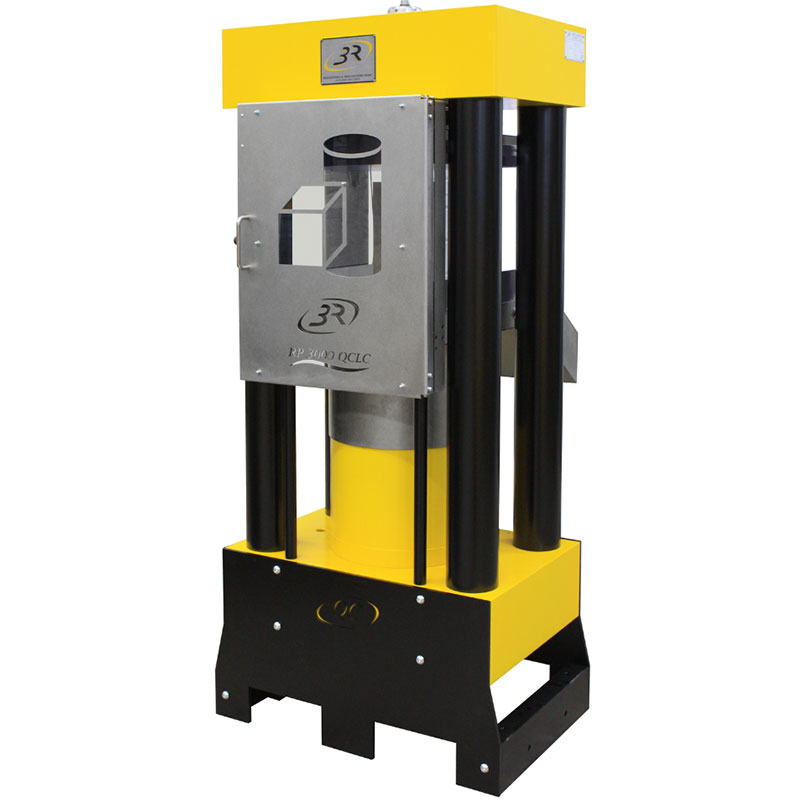

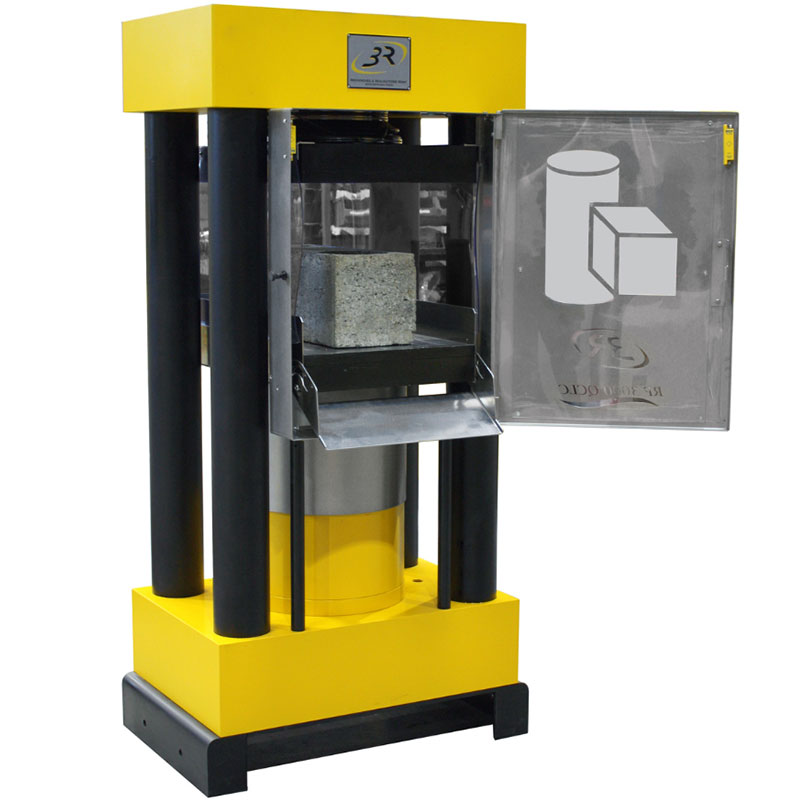

Four-Column Long Stroke Compression Testing Machine – 4000 kN
Manufactured by 3R Industries
This fully machined four-column frame is controlled with a foot meter and has a testing force of 4000 kN (2000 kN and 3000 kN models are also available).
It’s used in civil engineering testing labs for carrying out tests on both blocks and cylinders, with the QC/LC frame (Four Columns / Long Stroke) featuring a cylinder with 200mm strike, removing the need to use spacers, which are heavy and often difficult to centre.
The height of the lower platen (980 mm) provides the user with optimum working comfort, limiting back problems.
Price on quotation
Benefits
- Enables testing on large parts or blocks with excellent stability and load distribution.
- Doesn’t require the use of spacers, maximising both lab time and productivity.
- No adjustment required or time loss when switching from one test to another.
- Workstation ergonomics have been carefully designed by confining the test chamber with stainless steel protective cheeks.
- Transparent guarding enclosing the test area.
- Rotating chute to guide debris toward a bucket placed at the foot of the machine, again saving time.
- Designed in compliance with European standards.
- Spherical seat in treated steel coated with Teflon for optimal load distribution.
- Treated steel platens – Hardness ≥ 600 HV30.
- Test chamber height: 340 mm.
- Ergonomic 980 mm working height means fewer back problems.
- Cylinder: Low-friction composite seal and bronze guidance, stroke 200 mm.
- Mechanical centering device for quick and precise specimen positioning.
- Stainless steel protective grid with electrical safety detector.
- Base designed for easy handling with forklift, so you can easily move the compression test machine from A to B.
- Civil engineering testing labs.
| Force | 4,000 kN |
| Platens | 410 mm × 610 mm |
| Test chamber | 340 mm |
| Stroke | 200 mm |
| Height | 2,100 mm |
| Weight | 4,110 kg |
