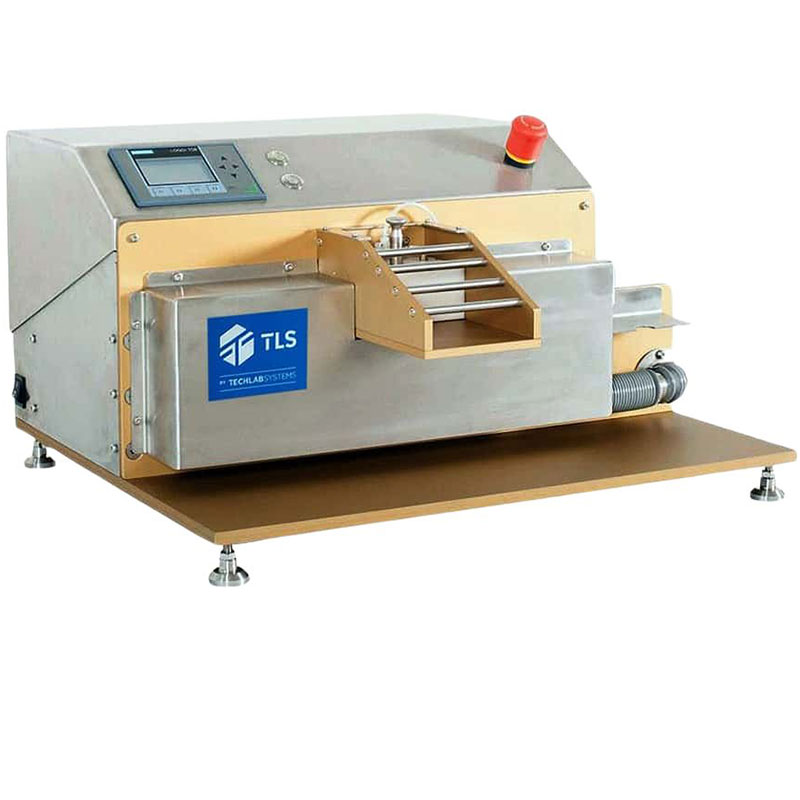

ECT Sample Saw Cutter SS-25

This ECT Sample Saw Cutter is fitted with a high speed motor for military precise cutting of corrugated board samples for ECT compression testing on the sample crush tester. It has a 25mm cutting width (length 100mnm) and can cut samples up to a maximum thickness of 22mm.

Compliant with ISO 3037 and TAPPI T 811 standards, it also has automatic sample ejection, allowing for faster processing, preventing sample damage, and improving personnel safety by eliminating manual handling.

Benefits

Rotational double saw cutter.
Easy to change the saw blades.
Counter for cuttings helps maintains test consistency and improves workflow efficiency by automatically how many samples have been cut.
Security mechanisms protect operators from sharp blades.
Connection for an industrial vacuum, enabling you to collect cutting debris and keep your working environment tidy.*
CE marked.

Applications

Board boxes.
Board packaging.
Corrugated board.

Test Description

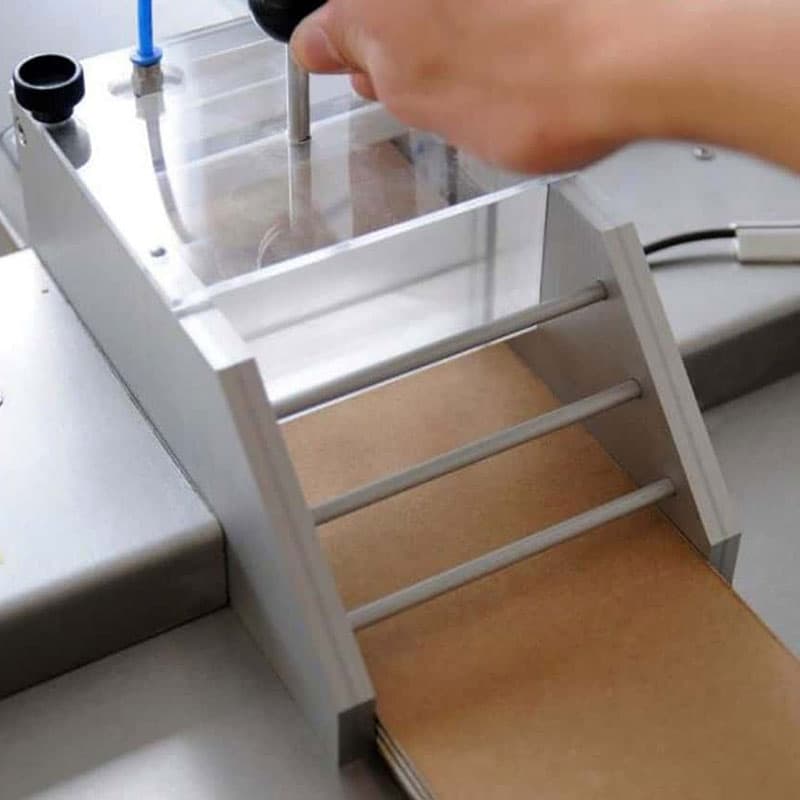

A sample stripe is put into the sample holder. The motor and the vacuum cleaner are started by pushing a button and the saw blades are moving and cut the sample with exact 25 mm width. The sample falls in a sample holder and can be taken out after cutting. Now the sample stripe is moved into the saw for cutting the next sample. The machine is so constructed, that a change of the saw blades is very easy.

*Optionally, we can supply an industrial vacuum cleaner to collect the cutting dust.

Standards

ISO 3037 and TAPPI T811.

Technical Data

Compressed Air Inlet: 4-6 Bar – 4-6 Kg/cm2
Cutter Dimensions: 600mm x 500mm x 350mm
Net Weight: 50kg
Transport Packaging Dimensions: 800mm x 600mm x 500mm (W x D X H)
Gross Weight: 80kg (Wooden packaging with phytosanitary treatment)
