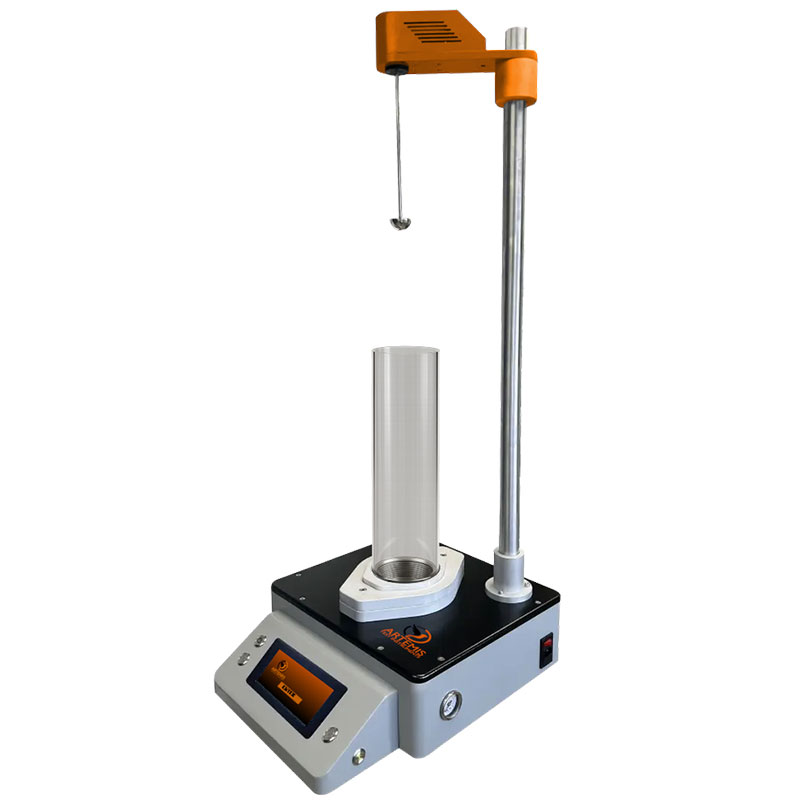

ART-DDi20 Falling Dart Drop Tester
Manufactured by Artemis Instruments

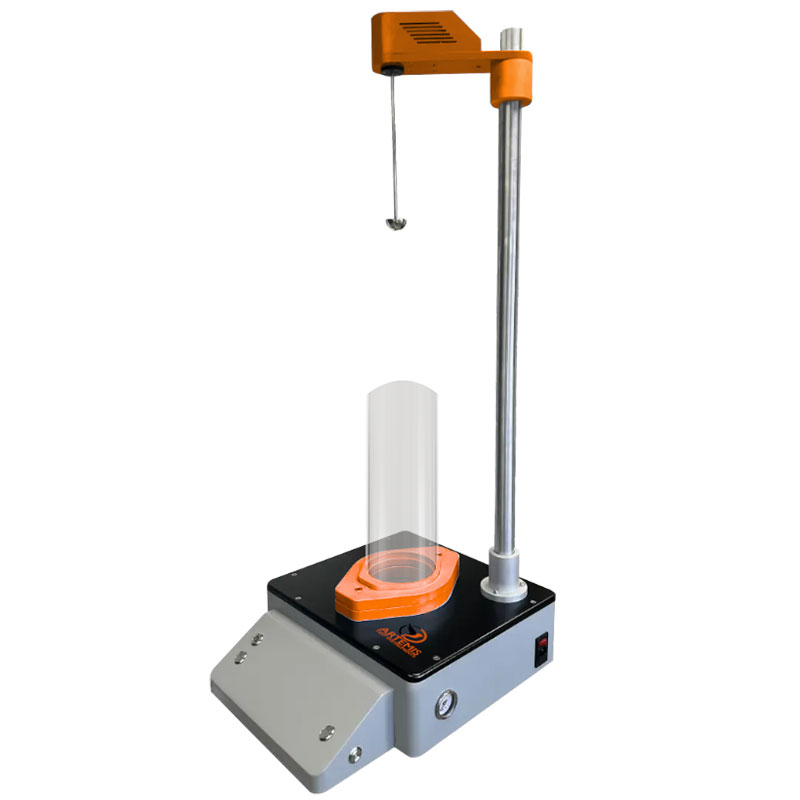

This dart drop impact tester provides an advanced method for testing impact resistance, over the DDi10 model. It’s integrated with a dedicated microprocessor and 7” touch screen interface, while test results and sample batches are simple to calculate and report.
Compliant with methods A & B of the ASTM D1709 and ISO 7765 testing standards, the dart drop tester is multi-voltage and designed to be bench mounted at a 660mm drop height. However, it can be easily placed on a floor if the 1.5m drop height test is required and you have limited ceiling height.
It’s supplied as standard with an aluminium dart with a 38.1mm (1 1/2″) spherical radius tup and a set of binary weights for testing up to 2kg in drop mass. Additional weights can be supplied if required.
Price on quotation
Benefits
- Test setup is entered and stored for future use.
- Test results are automatically displayed on the touch screen display which can be downloaded into the dedicated LABLogic+ software platform (supplied with the instrument).
- Test specimens are securely clamped in the two piece pneumatic clamp system, ensuring test repeatability without slippage of the sample.
- Standard dart drop heights of 660mm or 1500mm (optional extension kit required) fulfil the test requirement and can be easily set up.
- Two handed operation to ensure optimum operator safety.
- Electro magnet dart release.
- Dart rebound guard is supplied to ensure the operator safety from rebounding darts.
- UKCA/CE declaration.
- Warranty – 1 year return to base.
- 110v-240v AC, 50-60 Hz.
- Product user manual.
- Manufactured in the UK.
How does the ART-DDi20 Perform The Dart Drop Test?
Predominantly used in the flexible packaging industry, the ART-DDi20 provides a sophisticated method for determining the energy that causes plastic film or other flexible materials, usually no greater than 0.25mm, to fail under impact from a free falling dart. The energy required to tear or puncture the test specimen is expressed in terms of the darts weight (mass) which would result in the failure of 50% of specimens being tested.
- Dimensions: 44cm x 54cm x 120cm
- Weight: 35kg
Options
- Method B extension kit – includes 50.8mm (2.0″) dart & weight set.
- Addition test weights methods A & B.
