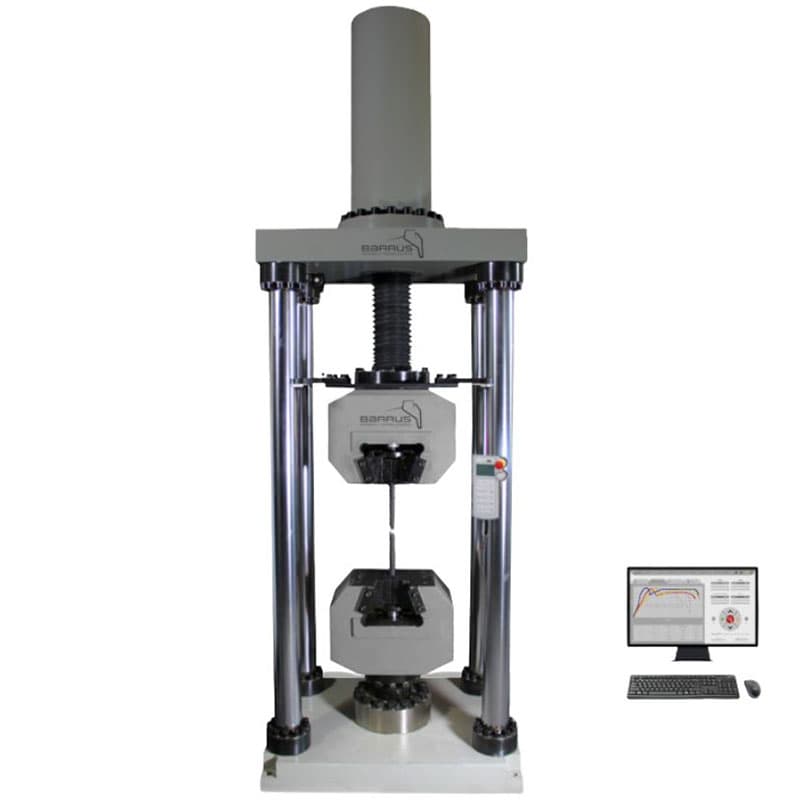

Barrus RED Servo-Hydraulic Universal Testing Machine - 1000 kN
Designed for dynamic and high-load testing applications, this Servo-Hydraulic Universal Testing Machine has a long range piston stroke without changing the crosshead adjustment.
This makes it suitable for testing long samples or the samples having high strain capacity.
It has a high precision load measurement (load measurement resolution is 20 bit) with sensitive load cell class 0.5, while the load cells can be replaced according to different load ranges to make much more accurate and sensitive measurements.
Price on quotation
Benefits
- Ideal system for testing common sized specimen with non-adjustable crosshead design.
- Convenient working height and ergonomic controls improve operator productivity and comfort.
- Anti-rotation systems prevents actuator from rotating during stroke.
- Long stroke, high speed actuator is well-suited for tension applications, requiring repetitive testing of similar-sized specimens.
- Independent serve-hydraulic unit connected to test actuator and hydraulic grips.
- Gear type low noise hydraulic pump with necessary equipment for safe operation.
- Tensile tester calibration service available.
