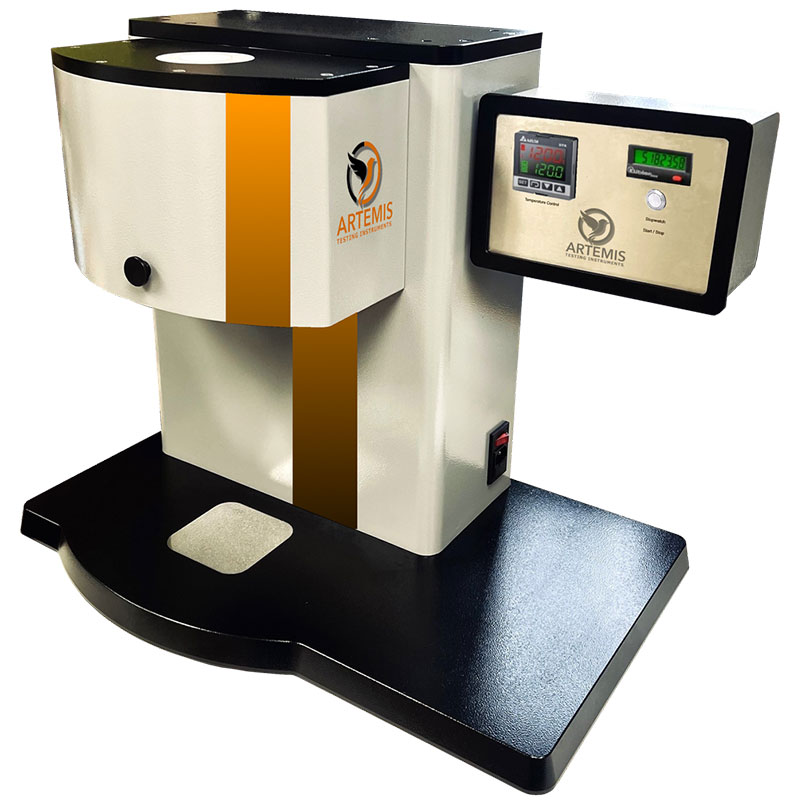

ART-MFi10 Melt Flow Indexer
Manufactured by Artemis Instruments
Ideal for laboratories and manufacturers who require occasional testing of the physical properties of polymers, the ART-MFi10 is our basic entry-level Melt Flow Index Tester.
It’s designed for reliability and ease of use, with temperature controlled by a 16th Din PID temperature controller and PT100 thermocouple. Temperature set points are easily entered and displayed, while the quick-change barrel drastically reduces equipment downtime.
Sample cuts are taken manually using the supplied cut off knife at timed intervals which can be monitored using the on-board electronic timer.
Important: The ART-MFi10 can be supplied in either 110-120v 60 Hz and 220-240v 50 Hz.
Price on quotation
Benefits
- MFI test results are calculated easily by weighing each sample and conducting a manual calculation.
- Meets ISO 1133 and ASTM D1238 standards.
- Intuitive touchscreen controls.
- Fast, easy cleaning (cleaning kit supplied).
- UKCA/CE certified.
- Fully traceable certificate of calibration and instruction user manual.
- Manufactured in the UK.
This Melt Flow Index Machine comes complete with tooling to get you started from switch on, including:
- A standard discharge piston.
- Standard test die 2.095 mm diameter
- 2.16kg test load.
To compliment the instrument, a standard cleaning kit is also supplied. This includes:
- A cleaning rod.
- A test die cleaning tool.
- A cotton cleaning cloth.
- A wire bristled brush
The die go/no-go gauge is also supplied to keep check on the die size and a graduated filling cylinder.
Standards
The apparatus conforms to ASTM D3364, ASTM D1238, ISO 1133, and DIN 53735 amongst others.
Technical Data
- Dimensions (cm): 61.5W x 37D x 57H
- Net weight (kg): 35
- Power supply: 110v – 240vAC, 50 – 60 Hz
- Temperature accuracy: +/-0.1 °C
- Temperature range: Ambient to 450 °C
- Thermal stability: +/- 0.2 °C
- Timer resolution: 1.0 sec
Optional Extras
- Analytical weighing balance.
- Hastelloy anti-corrosive barrel, piston, and test die sets.
- Pneumatic weight loader.
- Test loads 1.0kg to 21.6kg.
