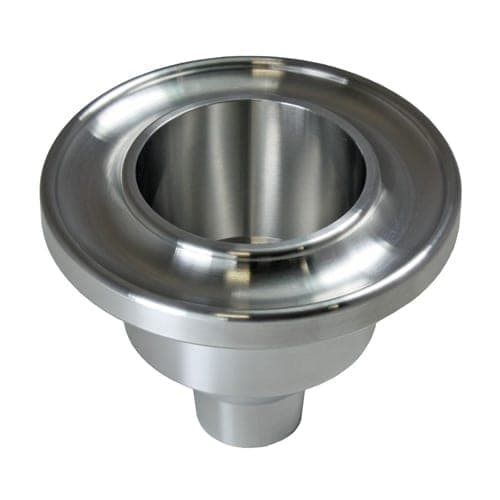

Viscosity Flow Cup – DIN 53221

£120.00

Manufactured by Rhopoint Instruments

DIN Flow cup provides a viscosity value, usually expressed in a flow time, this being the time taken for the flow cup to empty though the hole in its base. The flow time can be calculated into centistokes (cSt).

Clear

Optional Extras

Calibration (ISO 9001)
Stand for all AML Flow Cups
Calibration Oil for user calibrations
Qty:

Ink, paint, varnish and similar industries widely use DIN flow cups to quickly calculate the viscosity of there products.

Viscosity Flow Cup DIN 53221 usually available for next day delivery.

Optional calibration adds 5 working days to lead time.

Calibration service also available either on or offsite.

Manufactured in the UK by Rhopoint Instruments.

Type 2mm 4mm 6mm 8mm
Orifice Diameter 2mm (0.08″) 4mm (0.16″) 6mm (0.24″) 8mm (0.31″)
Viscosity Range 15-30cSt 112-685cSt 550-1500cSt 1200-3000cSt
Flow Times 25-150 Sec 25-150 sec 25-150 sec 25-150 sec
