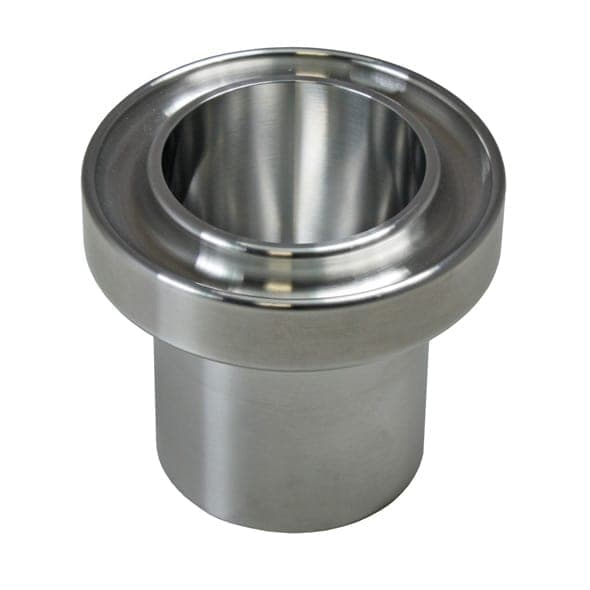

Viscosity Flow Cup – AFNOR Cup – NF T30-014


Manufactured by Rhopoint Instruments

AFNOR Flow cup provides a viscosity value, usually expressed in a flow time, this being the time taken for the flow cup to empty though the hole in its base. The flow time can be calculated into centistokes (cSt).


Optional Extras

Calibration (ISO 9001)
Stand for all AML Flow Cups
Calibration Oil for user calibrations

Ink, paint, varnish and similar industries widely use AFNOR flow cups to quickly calculate the viscosity of there products.

Viscosity Flow Cup, AFNOR Cup- NF T30-014 usually available for next day delivery. Optional calibration adds 5 working days to lead time.

Calibration service also available either on or offsite.

Manufactured in the UK by Rhopoint Instruments.

Type 2.5mm 4mm 6mm 8mm
Orifice Diameter 2.5mm (0.10″) 4mm (0.16″) 6mm (0.24″) 8mm (0.31″)
Viscosity Range 5-140cSt 50-1100cSt 510-5100cSt 700-11500cSt
Flow Times 30-100 Sec 30-100 sec 30-100 sec 30-100 sec
