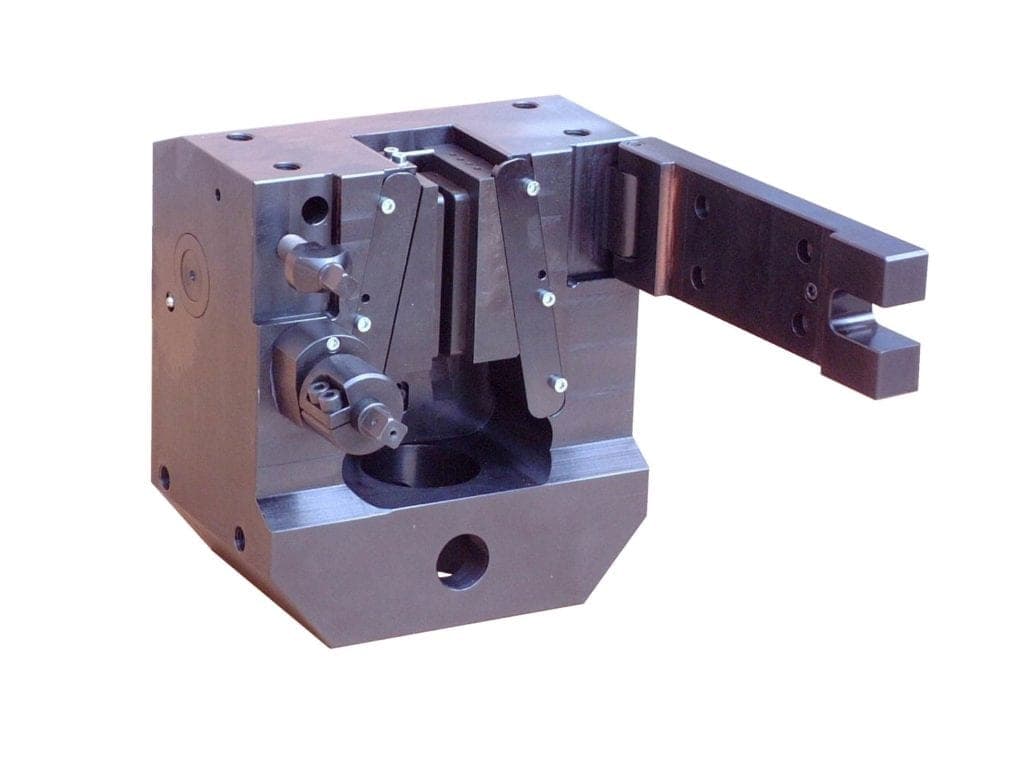

Universal Wedge Grips -100 kN to 500 kN

£4,000.00

Universal wedge grips with lower 11° wedge angle making them ideal for softer materials such as copper, aluminium, steel up to 30 HRC. Either in round or flat form. Not recommended for hard metals or composite materials.

Operated by crank handle or cordless drill / driver

Optional Extras

Select the additional capacity you need, this cost its in additional to the 100 kN wedge grip.
TH109-150 Wedge grip 150 kN, 1 pair
TH109-250 Wedge grip 250 kN, 1 pair
TH109-300 Wedge grip 300 kN, 1 pair
TH109-500 Wedge grip 500 kN, 1 pair
TH109-Ko "Pneumatic pistons for 1 pair of TH109 Foot pedals see TH205-8
TH109-P220 "Compression platen fixed directly on wedge grip TH109 Steel, hardened 220 mm Ø nickel coated 1 pair"
TH109-KA-M42x2 "KA wedge adapter to connect other grips to TH109 without dismounting TH109 , connection thread M42x2 1 pair"
TH109-T-40+280°C "Surcharge for temperature range -40 to +280°C For TH109-100, TH109-150, TH109-250 and TH109-300"
TH205-8 "Foot pedal for 2 double acting pistons Features: 2x 5 / 2 directional valves, tubes, fittings"
1 set = 4 jaws Wedge jaws serrated, clamping surface 60 x 110 mm (W x H)
TH109-BP30 Pyramid jaws (serrated) for samples 0-30 mm, 1 set
TH109-BP50 Pyramid jaws for samples (serrated) 26-50 mm, 1 set
TH109-BV30 V-jaws for round samples 6-30 mm Ø, 1 set
TH109-BV50 V-jaws for round samples 30-50 mm Ø, 1 set
In combination with TH109-GT you will have regular jaws. Advantage: jaws can be rotated through 180° + cheaper. Disadvantage: smaller clamping surface 50 x 100 mm (W x H). Carrier required which is the first item listed below.
TH109-GT Carrier for insert jaws, 1 Set = 4 carriers
TH109-EBP30 Insert pyramid (serrated) jaws for 0-30 mm thick samples, 1 set
TH109-EBP34 Insert pyramid (serrated) jaws for 4-34 mm thick samples, 1 set
TH109-EBP40 Insert pyramid (serrated) jaws for 10-40 mm thick samples, 1 set
TH109-EBP50 Insert pyramid (serrated) jaws for 20-50 mm thick samples, 1 set
TH109-EBV32 15 mm thick insert V-jaws for round samples Ø 5-32 mm, 1 set
TH109-EBV40 15 mm thick insert V-jaws for round samples Ø 12-40 mm, 1 set
TH109-EBV44 8 mm thick insert V-jaws for round samples Ø 16-44 mm, 1 set
TH109-EBD Diamond-coated insert jaws for flat samples, 1 set
TH109-EBVD8 Diamond-coated insert jaws for round samples, 1 set
Qty:

TH109-100 Wedge Grip – 100 kN

  • Max load: 100 kN
  • Jaw opening: 0-50 mm depending on jaw type
  • Standard coupling: Af318 or Af40. Further couplings on request
  • Body: Steel, nickel-plated
  • Temperature range: 0 … +70°C Further temperature ranges on request
  • Weight: 46 kg per grip without jaws
  • Scope of supply: 1 pair of grips without jaws

TH109-250 Wedge Grip – 250 kN

  • Max load: 250 kN
  • Jaw opening: 0-50 mm depending on jaw type
  • Standard coupling: Af60. Further couplings on request
  • Body: Steel, nickel-plated
  • Temperature range: 0 … +70°C Further temperature ranges on request
  • Weight: 70 kg per grip without jaws
  • Scope of supply: 1 pair of grips without jaws

TH109-300 Wedge Grip – 330 kN

  • Max load: 300 kN
  • Jaw opening: 0-50 mm depending on jaw type
  • Standard coupling: Af60. Further couplings on request
  • Body: Steel, nickel-plated
  • Temperature range: 0 … +70°C Further temperature ranges on request
  • Weight: 75 kg per grip without jaws
  • Scope of supply: 1 pair of grips without jaws

TH109-500 Wedge Grip – 500 kN

  • Max load: 500 kN
  • Jaw opening: 0-50 mm depending on jaw type
  • Standard coupling: Af80. Further couplings on request
  • Body: Steel, nickel-plated
  • Temperature range: 0 … +70°C. Further temperature ranges on request
  • Weight: 100 kg per grip without jaws
  • Scope of supply: 1 pair of grips without jaws

Wedge Grips manufactured in Germany to the highest standards by the World leader in grips and fixtures for materials testing.

See data sheet for more details, photo’s & drawings

Wedge grips to fit any Universal Testing Machine:- Instron, Zwick, Lloyds, AMETEK, Mecmesin, Shimadzu, Admet, Tinius Olsen etc.

Extensive range of other grips and fixtures available for all types of testing. We only have a very small selection of grips on our website, contact us todayand our friendly and experienced engineers will help you find the best grips for your materials testing requirements. We also have the ability to provide custom grips and fixtures.
