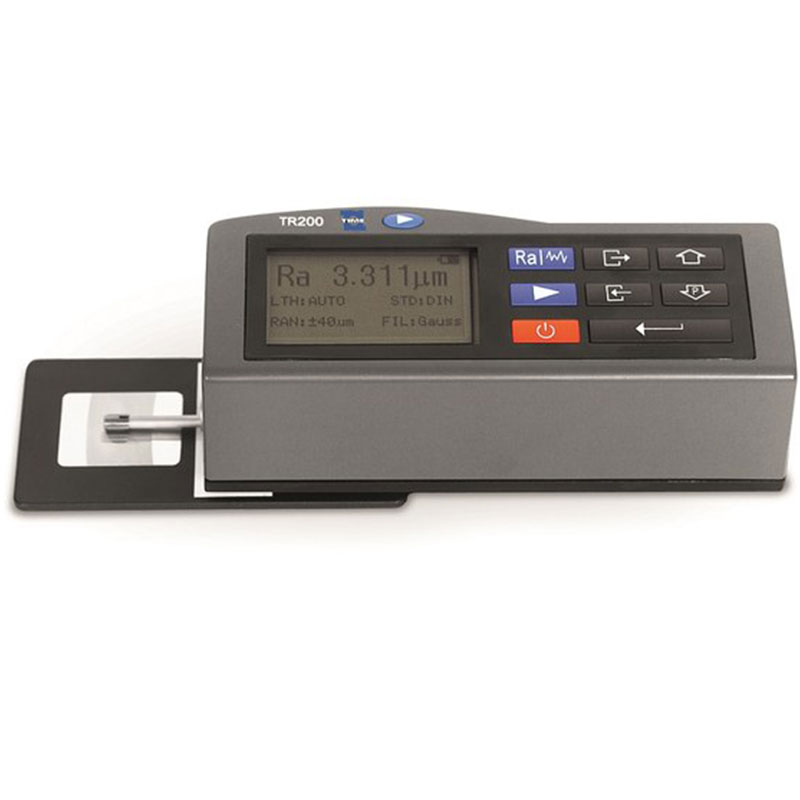

TR-200 Surface Roughness Tester

£1,681.82

Manufactured by Neurtek

This digital surface roughness tester with TS110 probe will instantly evaluate the texture of a surface, so you can determine whether it’s rough or smooth.

It has 13 different roughness parameters, which provide in-depth surface data for better product performance, durability, and efficiency across industries like aerospace, medical devices, and packaging.

Qty:
Request a Quote Ask a Question

Benefits

  • High performance, handheld surface roughness tester.
  • Easy to operate menu software.
  • Graphical display on large LCD for clear visibility of data.
  • Pick-up stylus position indicator.
  • Auto-off after 5 minutes, with auto-store.
  • Data output RS-232 to printer TA-230 or PC.
  • Excellent battery power with Li-ion technology.
  • Complies with ISO 4287 and ISO 13656 standards.
  • Ra 1.63 µm roughness gauge software, cable, and carrying case included to protect the device.

Reviews

There are no reviews yet.

Be the first to review “TR-200 Surface Roughness Tester”

Your email address will not be published. Required fields are marked *

  • Assessed profiles: Primary profile (P), Roughness profile (R), Tp curve (material ratio Mr)
  • Battery capacity: 1000mAh (>3000 measurements)
  • Bores from diameter: 6.0mm, depth 15mm (TS-100)
  • Charger: 220V, 50Hz
  • Cut-off length: 0.25mm / 0.8mm / 2.5mm
  • Data output: RS-232; direct to printer TA-230 or PC
  • Detector standard model: TS-100, Inductive, Diamond tip radius 5μm
  • Digital filter: RC, PC-RC, GAUSS, D-P
  • Display features: detector stylus position indicator, battery level indicator, direct display of parameters and profiles, direct printing, LCD brightness adjustment, auto-off after 5 minutes with auto-store, calibration through software (each cut-off)
  • Display LCD: 128 x 64 dot-matrix, with back-light
  • Display resolution: 0.001μm / 0.04 μinch
  • Evaluation length: Ln 1~5 cut-of
  • LCD dimensions: 50mm x 30mm screen)
  • Measuring system: By force lever (600A)
  • Operating temperature: 0°C ~ 40°C
  • Power: Li-ion battery rechargeable
  • Profile recording magnification: Vv: 200x ~ 20000x , Vh: 20x, 50x, 200x
  • Range: Ra, Rq : 0.005 – 16μm Rz, Ry, Rp, Rt, R3z : 0.02 – 160μm RSm, RS : 2 – 4000μm Tp : 1-100% (% Ry)
  • Roughness parameters: Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, P
  • Standard metric: mm, imperial inch
  • Selectable languages: English, German, French, Italian, Spanish, Dutch
  • Tracing length: Lt (1~5 cut off) + 2 cut-off
  • Unit dimensions: 141mm x 56mm x 48mm
  • Weight: 480 g
