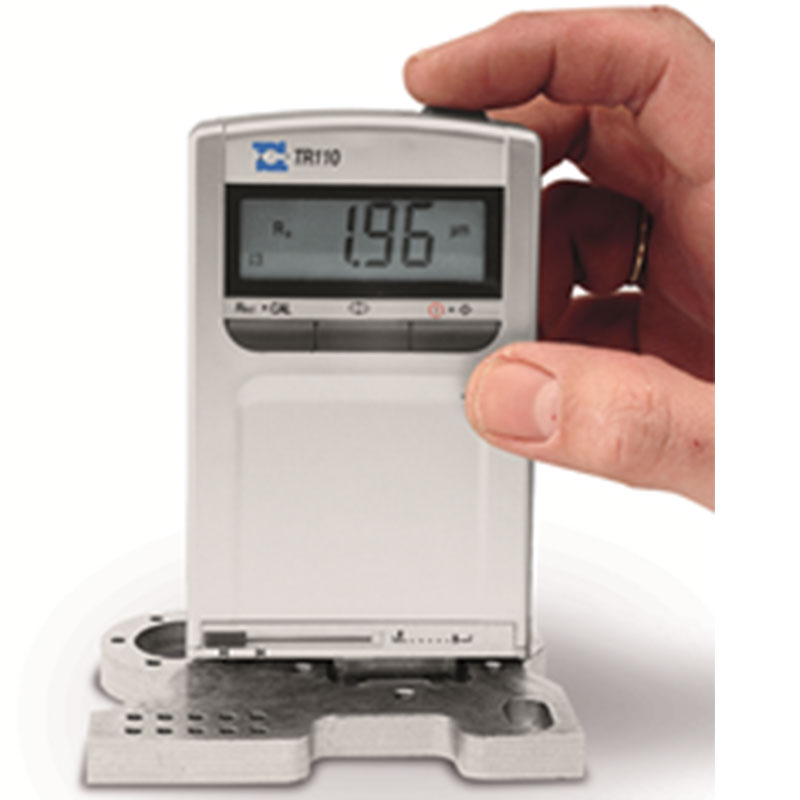

TR-110 Handheld Surface Roughness Tester

£827.27

Manufactured by Neurtek

Designed to instantly evaluate the texture of external surfaces and grooves, this pocket-sized and economically priced Surface Roughness Tester is ideal for on-site use.

It’s a vital tool for industries and applications where surface finish impacts aesthetics, performance, or safety, such as automotive part inspection and machining and manufacturing quality control.

Request a Quote Ask a Question Data Sheet

Benefits

Accuracy conforms to ISO Class 3.
LCD with back-light.
Dynamic test display: progress of cut-off length during testing.
Low maintenance, Li-ion rechargeable battery.
Protection slide on pick-up.
Auto-off after 90 seconds.
Sound signal start-test-ready.
Both Ra and Rz parameters in one instrument.
Software calibration.
Large measuring range suitable for most materials (Ra: 0.05-15.0μm / Rz: 0.1-50μm).
Piëzo-electric pick-up stylus for external surfaces.
Includes a traceable calibration certificate and an Ra roughness standard.

Reviews

There are no reviews yet.

Be the first to review “TR-110 Handheld Surface Roughness Tester”

Calibration: By CAL function (on keypad)
Charger: 6V DC
Cut-off lengths: 0.25mm, 0.8mm, 2.5mm
Dimensions: 110mm x 70mm x 24mm
Filter: 2CR
Functions: Dynamic display during testing, sound signal start-test-ready, auto-off 90 seconds, back-light LCD
Measuring range: Ra: 0.05-15.0μm / Rz: 0.1-50μm
Min. curvature of cylindrical surface: 40mm diameter (V-grooved base)
Operating temperature: 0°C – 40°C
Pick-up stylus: Piëzo-electric
Power: 3.6V / Li-ion batteries / low battery indication
Roughness parameter: Ra, Rz
Tracing length: 6mm
Tracing speed: 1.0mm/sec
Tracer tip: Diamond, radius 5μm ±1μm
Units: μm / μinch
Weight: 200gr
