testo 174T – Mini Data Logger (Set)

£110.00

Manufactured by testo

  • Professional software with Excel export function for programming the logger and data analysis
  • Temperature measuring range from -30 °C to +70 °C
  • Automatic measuring data backup when the battery runs out or is changed
  • Measurement data memory for up to 16,000 readings
  • Easy-to-change battery
  • Displays violations of limit values

The testo 174T mini data logger for temperature is your practical support for continuous temperature measurement (e.g. the storage temperature of drugs or food). When buying these sets, you also get a USB interface for data transfer to the PC.

Optional Extras

Qty:

testo 174T – Mini Data Logger (Set)

Overview

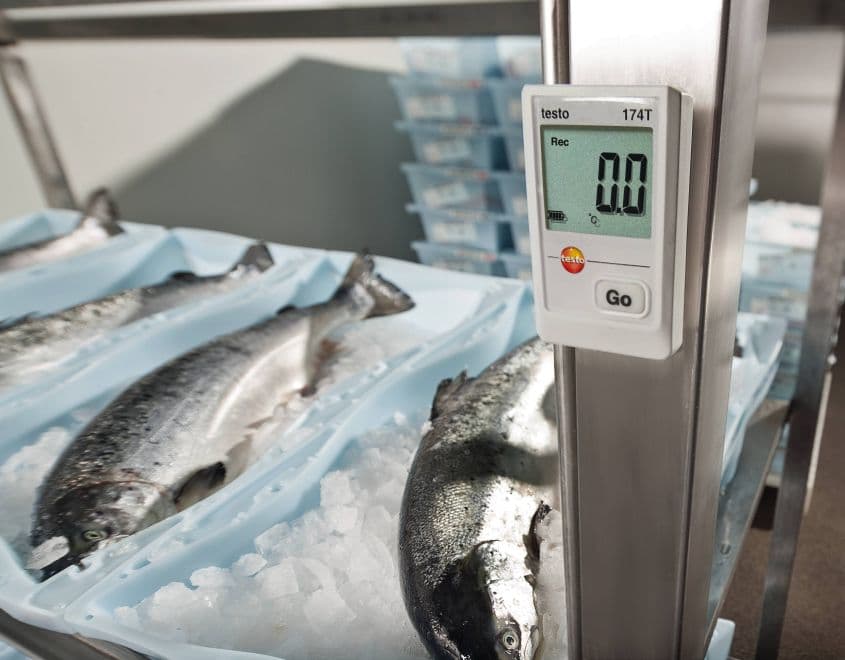

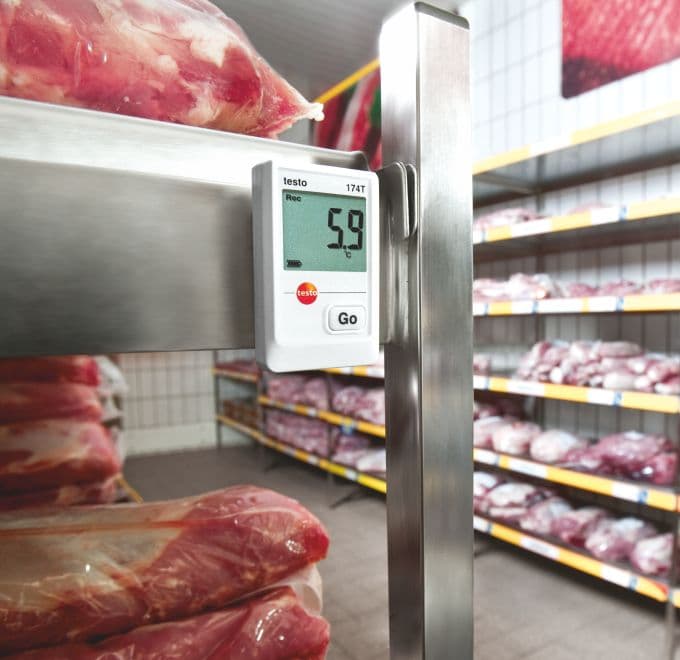

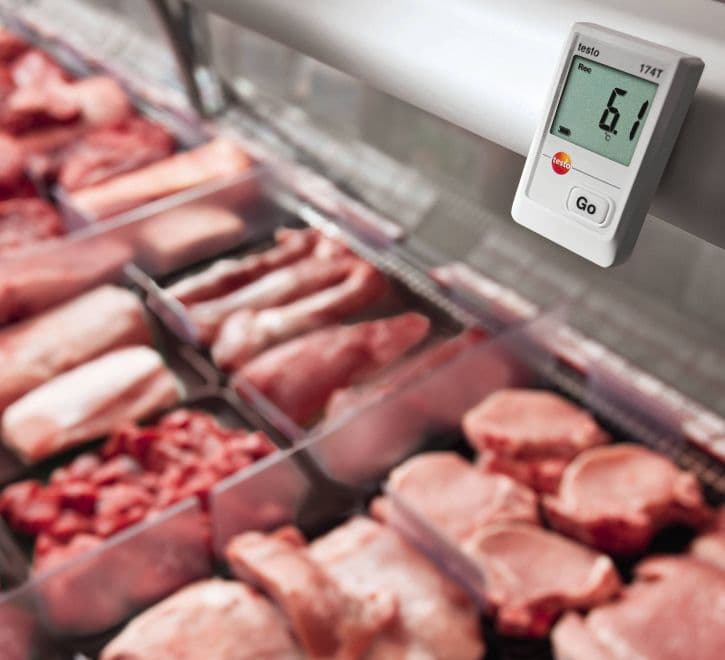

You always have to ensure that the storage temperature does not exceed specific limit values when storing drugs and food. With the testo 174T mini data logger for temperature you can carry out continuous temperature control, no matter whether you store your goods on the shelf, in the counter display or in the refrigerator/cold store. This means you can check at any time whether you are adhering to the specified temperature ranges. Because the data logger reliably records the readings and can therefore be used for uninterrupted measurement data recording and documentation.

This is what the testo 174T mini data logger for temperature offers

The testo 174T mini data logger for temperature has a memory capacity of up to 16 000 readings. Saved measurement data will not be lost even when the battery is empty or being replaced. You can easily see the current reading shown on the large display, along with any possible violations of limit values. The temperature sensor which is integrated into the data logger is an NTC sensor with a high level of accuracy. The temperature data logger`s measuring range goes from -30 to +70 °C. It is therefore fine to use at very low temperatures as well and is for instance suitable for temperature control in refrigerators or cold stores.

Particularly practical for applications involving food (e.g. storage temperature measurement): the testo 174T mini data logger for temperature is certified to EN 12830, is HACCP-compliant and has international HACCP certification. It also has water spray and jet protection according to protection class IP 65. This enables the data logger for temperature to be left in the measuring location even when warehouses are being cleaned.

Programming and analysis with the mini data logger for temperature

You can programme and read your data logger for temperature using software, as well as analyzing measurement data on the PC. Testo offers three different software versions to do this:

  • ComSoft Basic software – free download possible – for fast programming of the temperature data logger and easy data analysis
  • ComSoft Professional software – also available as an option – offers a variety of possibilities for detailed analysis of readings
  • ComSoft CFR 21 Part 11 software – also available as an option – the best solution for special requirements according to CFR 21 Part 11 in the pharmaceutical sector

Advantage of the set: the data logger is ready to use straight away

You need a USB interface to programme and read your testo 174T mini data logger for temperature. The USB interface is already included in the scope of delivery when you purchase this set. This means you can start your temperature recording straight away!

Delivery Scope

testo 174T – 1-channel, wall bracket, battery (2 x CR 2032 lithium), calibration protocol. Plus Interface and USB cable.

Reviews

There are no reviews yet.

Be the first to review “testo 174T – Mini Data Logger (Set)”

Your email address will not be published. Required fields are marked *

testo 174T – Mini Data Logger (Set)

Technical Data

General technical data
Weight 35 g
Dimensions 60 x 38 x 18.5 mm ((LxWxH))
Operating temperature -30 to +70 °C
Product-/housing material Plastic
Protection class IP65
Channels 1 internal
Product colour white
Standards EN 12830; 2011/65/EU
EU-/EG-guidelines EU-guideline 2014/30/EU
Measuring rate 1 min – 24 h
Battery type 2 x 3V button cell (CR 2032)
Battery life 500 days (15 min measuring cycle, +25 °C)
Memory 16,000 measuring values
Storage temperature -40 to +70 °C
Temperature – NTC
Measuring range -30 to +70 °C
Accuracy ±0.5 °C (-30 to +70 °C)
Resolution 0.1 °C

Sets
