testo 174H – Mini Humidity Data Logger

£75.00

Manufactured by testo

  • Professional software with Excel export function for programming the logger and data analysis
  • Temperature measuring range from -20 °C to +70 °C
  • Automatic measuring data backup when the battery runs out or is changed
  • Measurement data memory for up to 16,000 readings
  • Easy-to-change battery
  • Displays violations of limit values

Optional Extras

Qty:

testo 174H – Mini Humidity Data Logger Overview

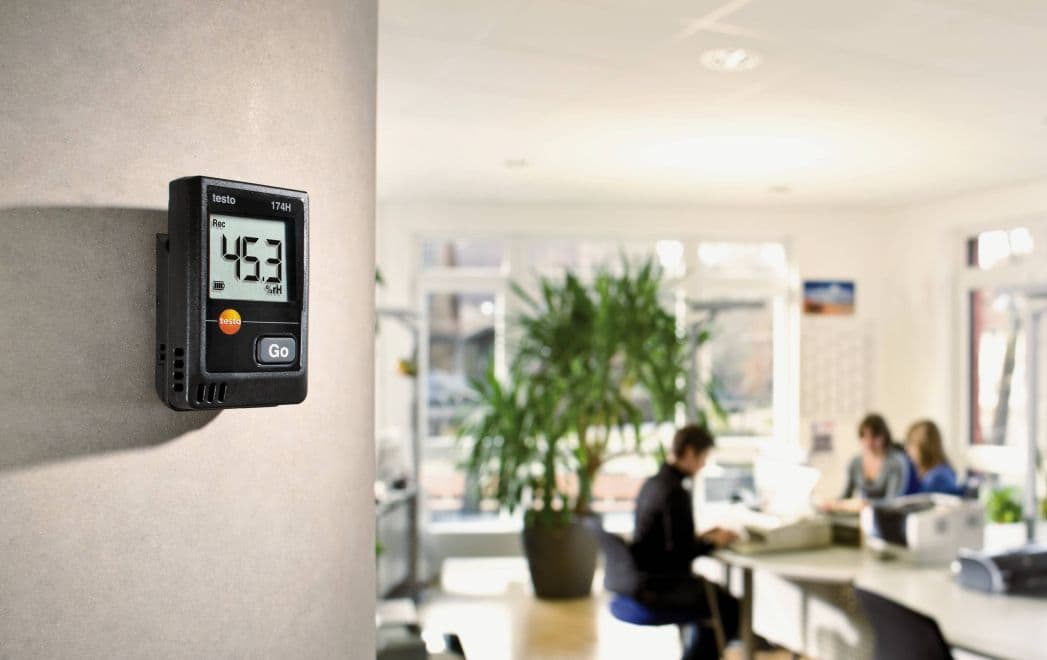

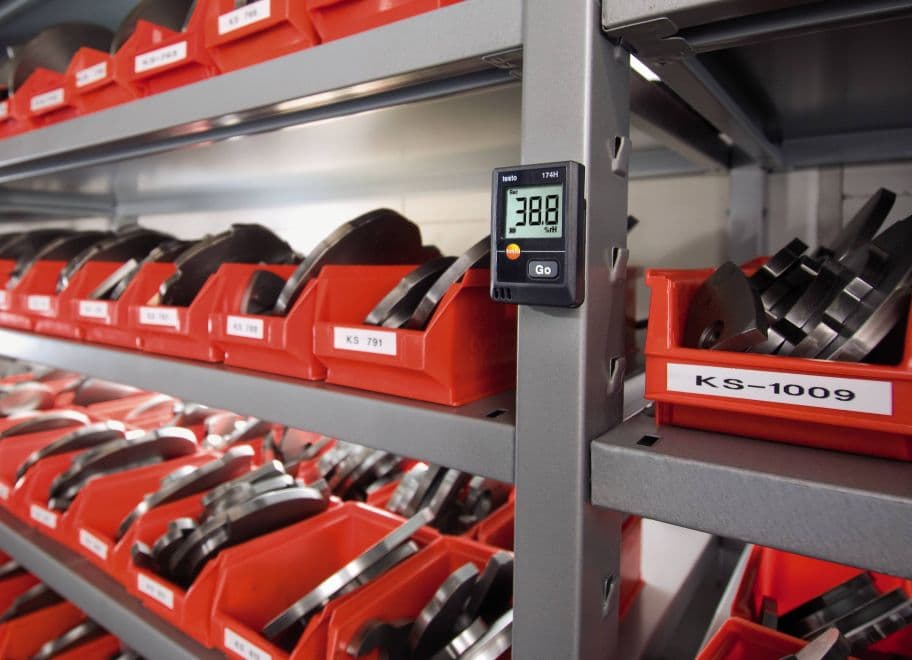

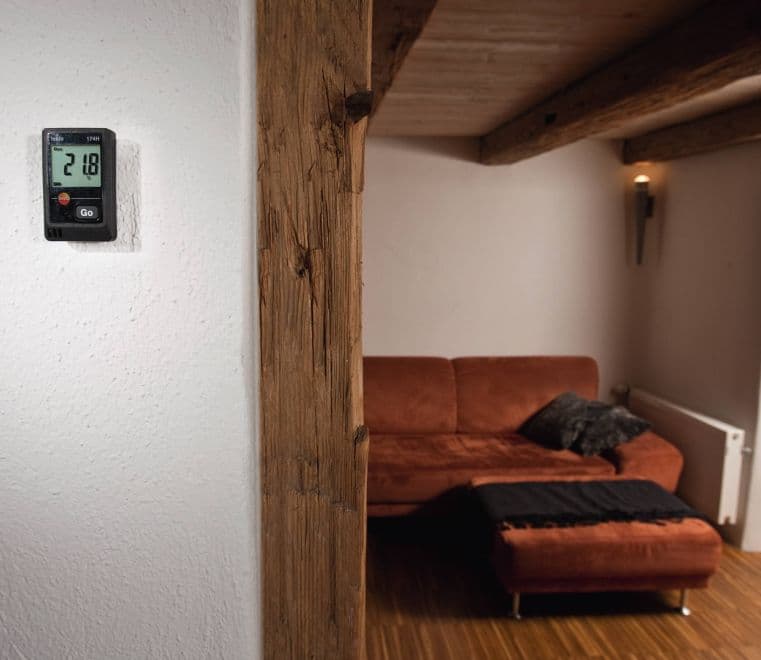

The testo 174 H allows you to monitor temperature and humidity sensitive goods – including foods, archives or metal parts that are susceptible to surface rust – or carry out discreet humidity checks in buildings to ensure that the property is being properly looked after by the tenants.
The testo 174 H mini data logger has built-in longlife sensors that can measure the temperature and humidity of the surrounding environment, a memory for up to 16 000 measurements and an easy-to-read display that shows the current reading as well as any breached thresholds.
Practical: The standard batteries (2x CR 2032) included in the scope of supply can be easily replaced by the user.

Programming and Analyzing Your Temperature and Humidity Data Logger

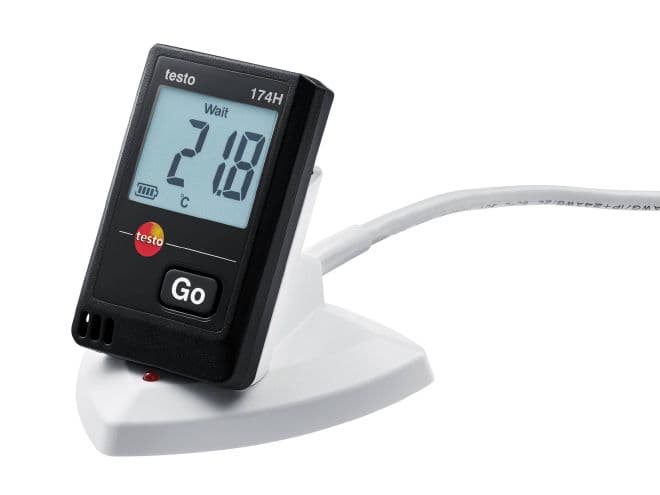

You need a testo USB interface for programming and reading the mini temperature data logger (0572 0500)

Choose 1 of 3 software versions to program or read out your loggers or to analyze the measuring data you have obtained on your PC:

  • Software ComSoft Basic – included – allows you to program your logger and analyze the data quickly and easily
  • Software ComSoft Professional – optional – provides you with additional possibilities and a more detailed analysis of the temperature and humidity values
  • Software ComSoft CFR 21 Part 11 – optional – ideal for the special demands of the pharmaceutical sector in compliance with 21 CFR Part 11

Delivery Scope

testo 174H temperature and humidity mini data logger, wall bracket, 2 x CR 2032 lithium batteries, calibration protocol.

Reviews

There are no reviews yet.

Be the first to review “testo 174H – Mini Humidity Data Logger”

Your email address will not be published. Required fields are marked *

testo 174H – Mini Humidity Data Logger Technical Data

Temperature – NTC
Measuring range -20 to +70 °C
Accuracy ±0.5 °C (-20 to +70 °C)
Resolution 0.1 °C
Humidity – Capacitive
Measuring range 0 to 100 %RH*
Accuracy ±3 %RH (2 to +98 %RH) at +25 °C

±0.03 %RH/K ±1 Digit

Resolution 0.1 %RH

* Not for condensing atmospheres.

General technical data
Weight 34 g
Dimensions 60 x 38 x 18.5 mm
Operating temperature -20 to +70 °C
Product-/housing material Plastic
Protection class IP20
Channels 2 internal
Product colour Black
Standards 2011/65/EU; EU-guideline 2014/30/EU
Measuring rate 1 min – 24 h
Battery type 2 x 3V button cell (CR 2032)
Battery life 1 year (15 min measuring cycle, +25 °C)
Memory 16,000 measuring values
Storage temperature -40 to +70 °C
