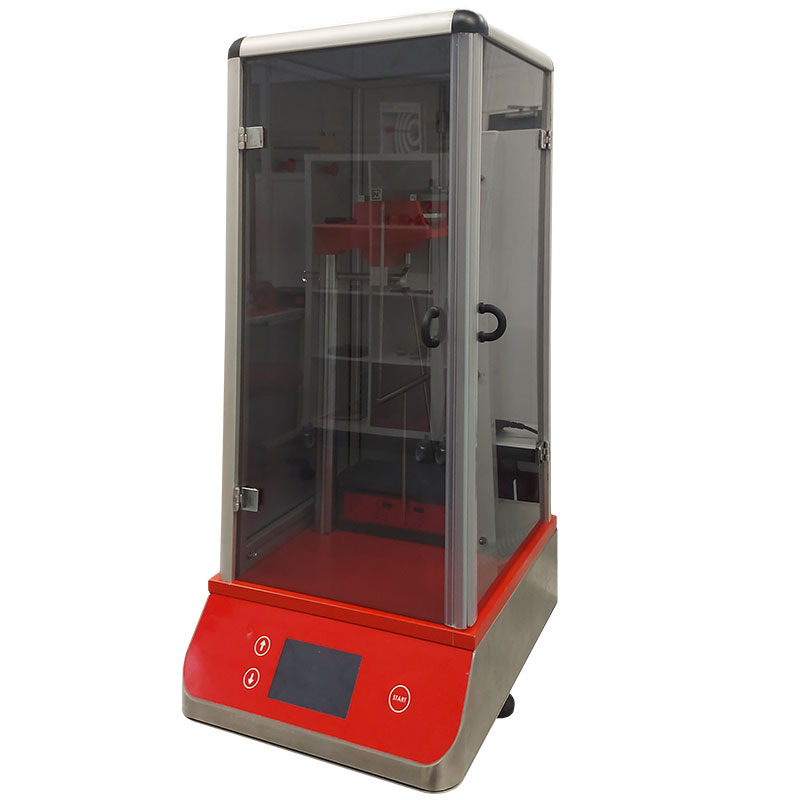

SWINTEK Persoz And König Pendulum Hardness Tester
Manufactured by Neurtek
This SWINTEK pendulum hardness tester uses the Persoz and König systems to accurately measure the surface hardness of coatings, paints, and inks. You can also use this device to evaluate the proper curing of the material though a controlled oscillation test.
The system allows the use of both the Persoz and König pendulums, with an integrated electronic switch to select the pendulum type according to the desired pendulum hardness test.
Select a variation to pay instantly
Benefits
- Ensures precise measurement of coating hardness and curing.
- Hardness and curing can be measured simultaneously.
- Compatibility with both Persoz and König systems in one single unit.
- Digital counter for easy reading and result retention.
- Sample protection against air currents and triggering errors.
- Complies with international standards for quality control, including UNE 48024-80 and ISO 1522.
- Traceability certificate included.
How does the SWINTEK pendulum work?
The equipment operates using a pendulum that oscillates freely on two balls resting on the surface of the sample. The speed at which the oscillation decays indicates surface hardness:
- Hard surface → slower oscillation.
- Soft surface → faster oscillation.
Typical Applications
- Surface hardness testing of paints and inks.
- Quality control in coating laboratories.
- Evaluation of curing and resistance of treated surfaces.
Pendulum Characteristics
The Persoz is quadrangular, weighs 500 g and is released at 12°, while the König is triangular, weighs 200 g and is released at 6°. Both measure hardness, but Persoz produces more oscillations on standard glass than König.
| System | Shape | Weight | Release angle | Oscillations on standard glass |
| Persoz | Quadrangular | 500 g | 12° | 435 ± 15 oscillations |
| König | Triangular | 200 g | 6° | 178 ± 8 oscillations |
Standards
ASTM D 4366, DIN 531517, ISO 1522, and UNE 48024-80.
What’s Included?
The unit is supplied complete and ready for use. Equipment and accessories include:
- SWINTEK base unit.
- Persoz or König pendulum (as selected).
- Digital cycle counter with automatic stop and result retention.
- Remote trigger.
- Methacrylate protective cover to prevent air currents.
- Reference glass and bubble level.
- Instruction manual and special packaging.
