Series TT01 Cap Torque Tester

£1,295.00

Manufactured by Mark-10

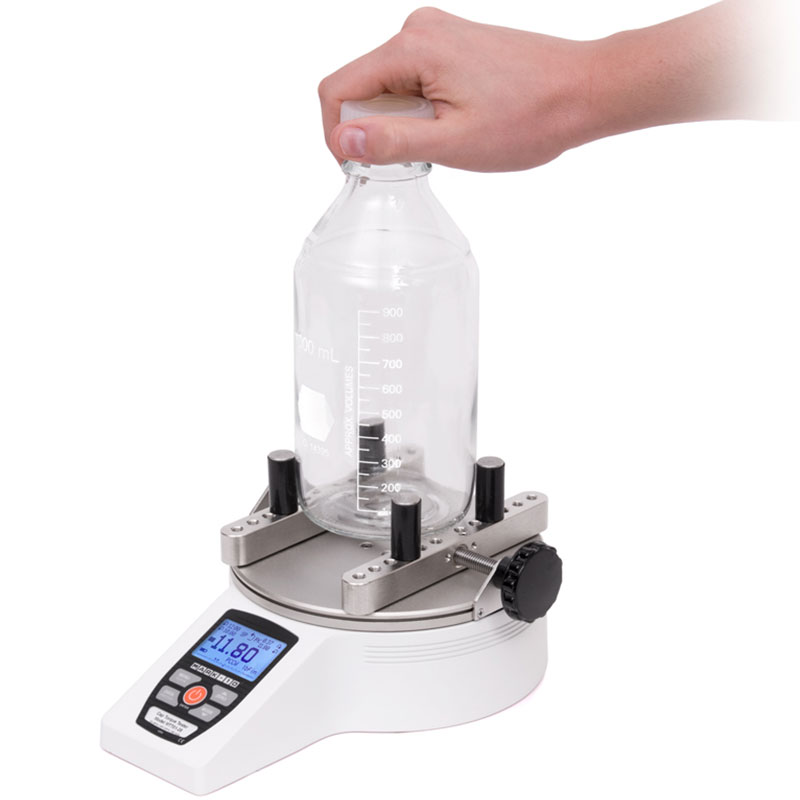

Integral to the cosmetics, pharmaceutical, and food and beverage industries, the Series TT01 Bottle Cap Torque Tester is designed to measure application and removal torque of bottle caps up to 100 lbFin [11.5 Nm].

Its rugged aluminium design, and simple, intuitive operation make it suitable for use in laboratory and production environments.

Four different models are available, all with a class-leading accuracy of ±0.3% and a super speedy sampling rate of 7,000 Hz. This ensures reliable and consistent test results, even in quick-action applications.

Clear
Qty:
Request a Quote Ask a Question Data Sheet

Benefits

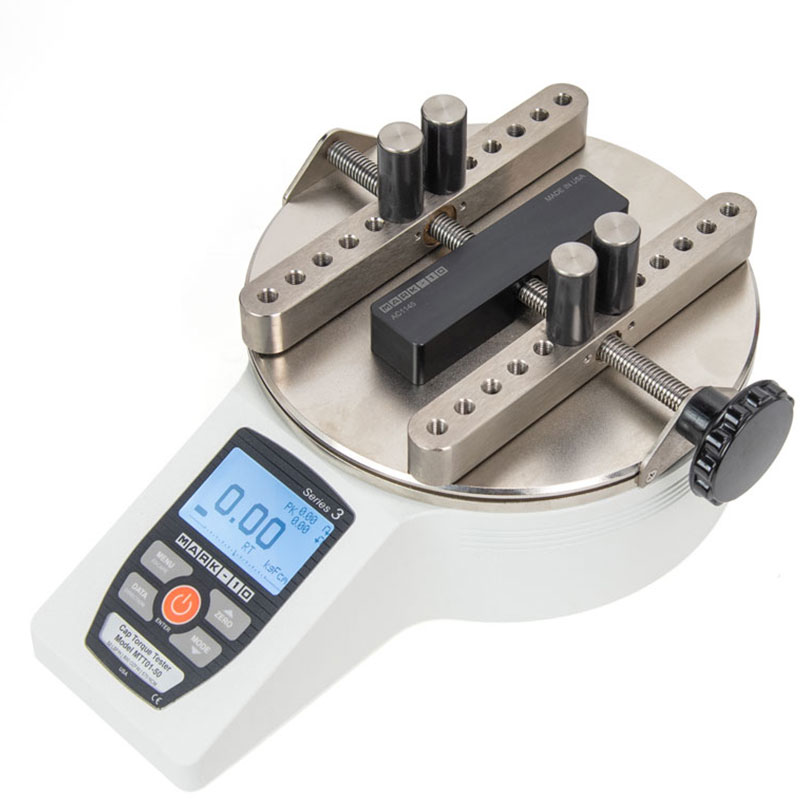

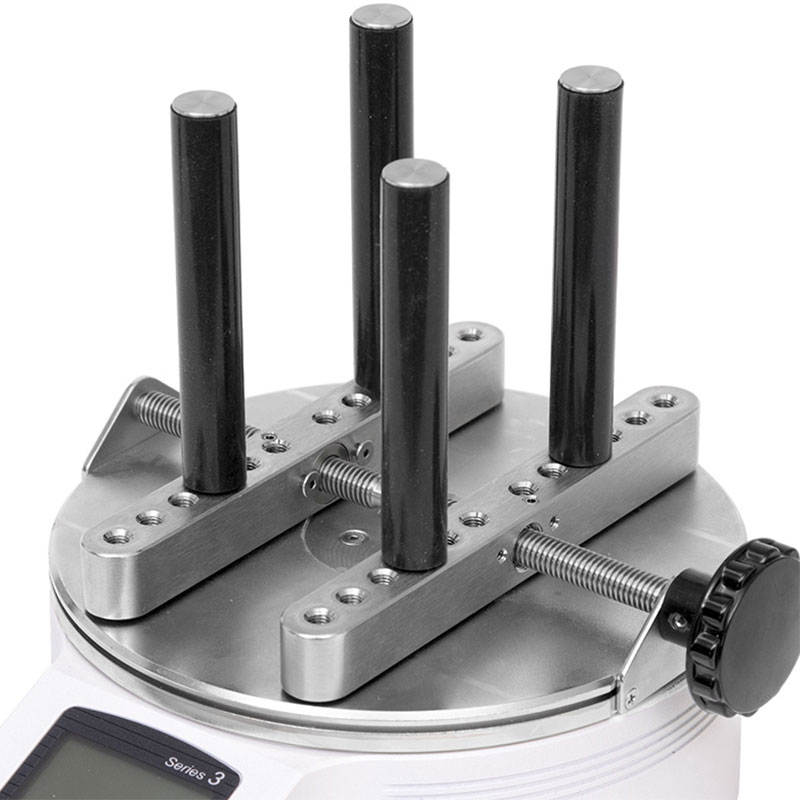

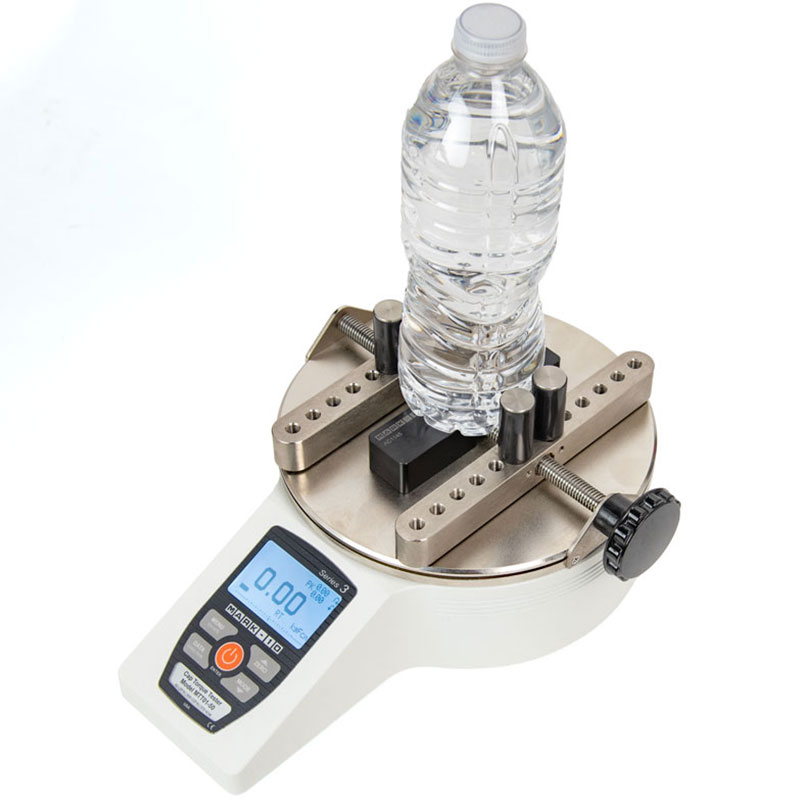

  • Adjustable posts effectively grip a broad range of container shapes and sizes.

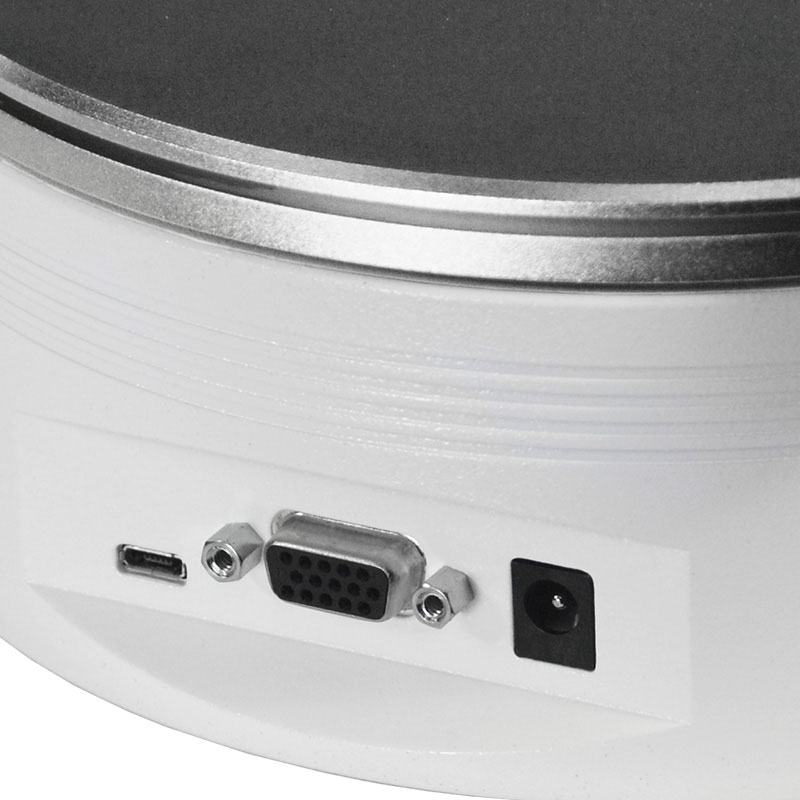

  • SB, RS-232, Mitutoyo, and analogue outputs, automatic data output and zeroing upon cap removal
  • Memory storage for 1,000 readings.
  • Pass/fail indicators and outputs.
  • First / second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures.
  • Password protection is provided to prevent unauthorized changes to settings and calibration.
  • MESUR®Lite data acquisition software tabulates continuous or single point data.
  • Data stored in the TT01’s memory can also be downloaded in bulk.
  • One-click export to Excel allows for further data manipulation.
  • Five selectable units of measurement.
  • Configurable audio alarms and key tones.

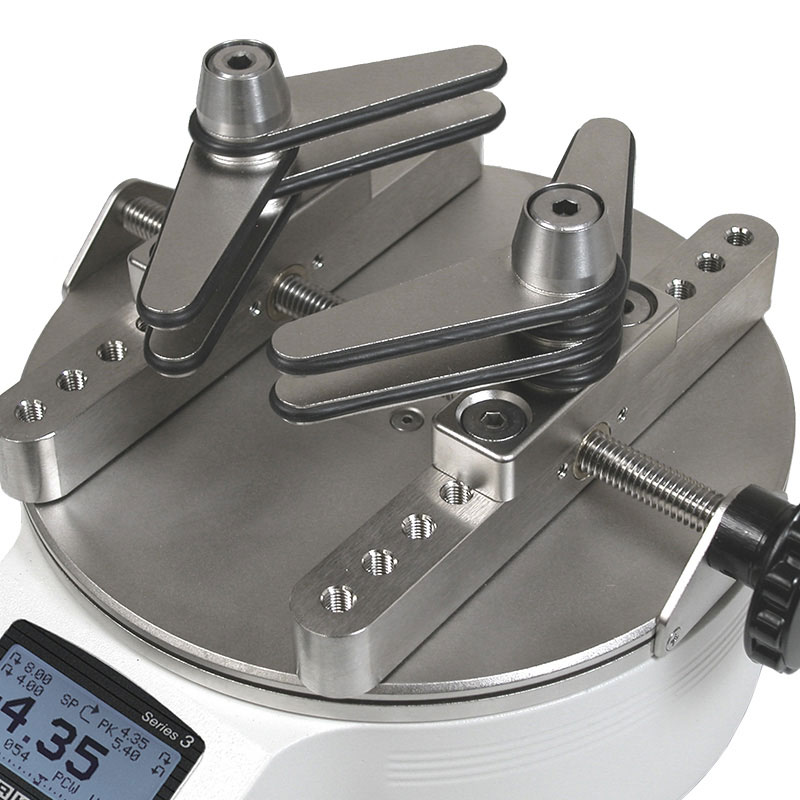

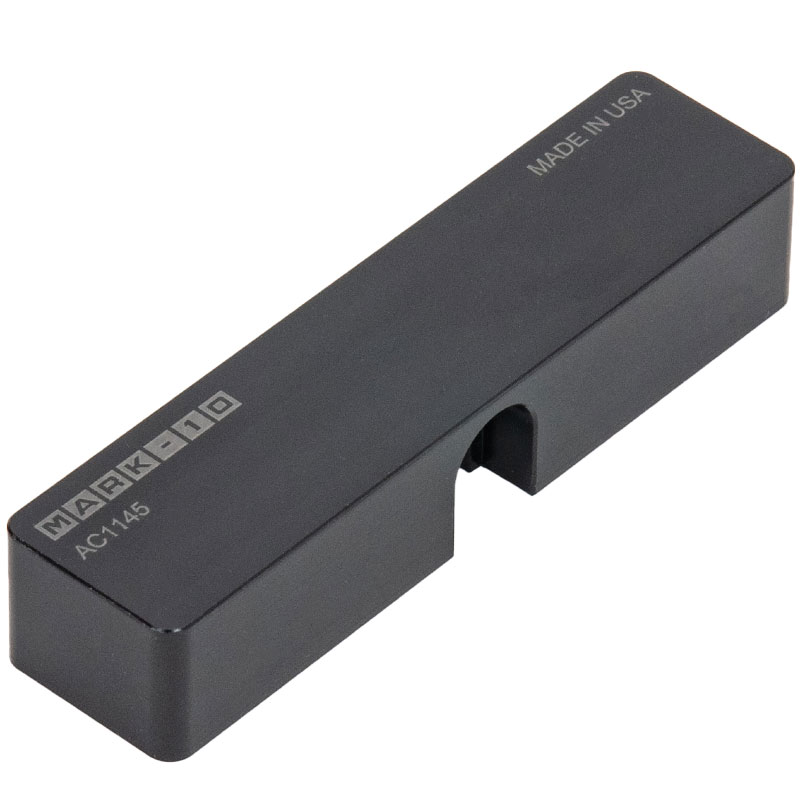

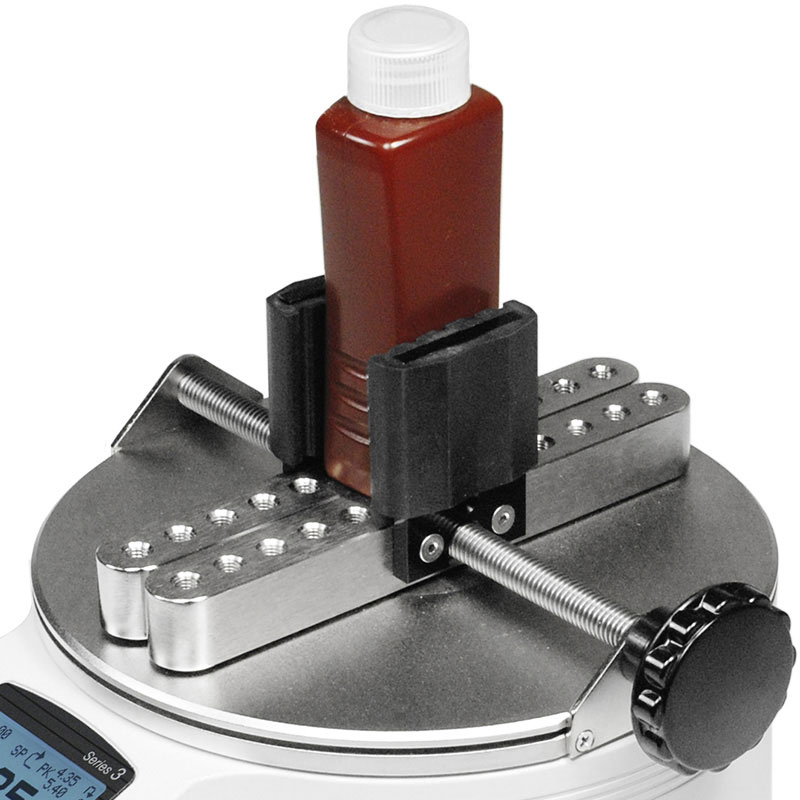

  • Optional flat and adjustable jaws are available for unique profiles.
  • Three year warranty.
  • Supported by AML Instruments in the UK.

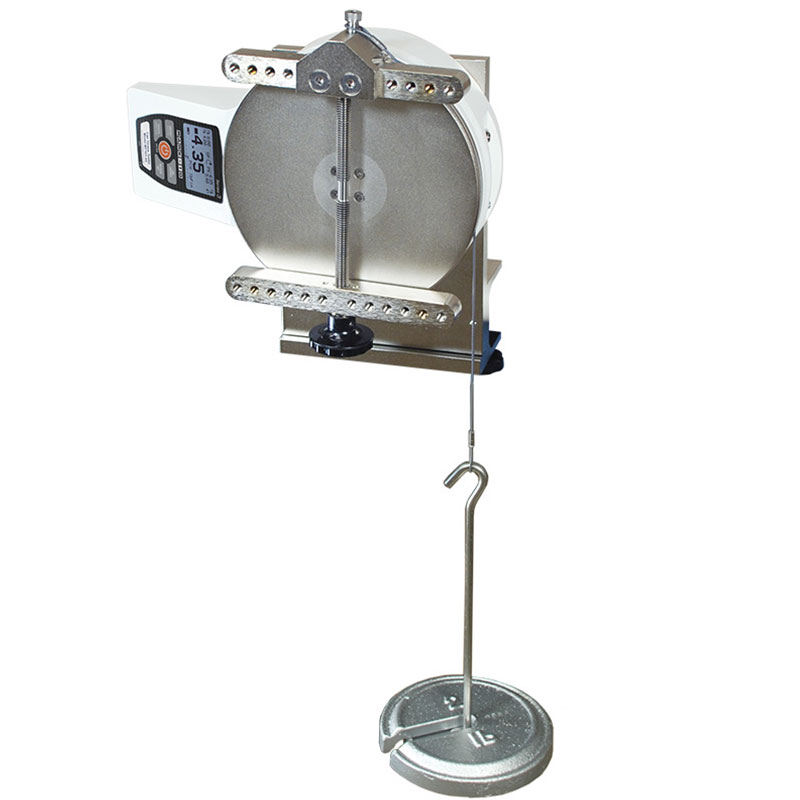

  • Torque calibration service available.

The Series TT01 Cap Torque Testers include the following accessories:

  • 4 x Sample gripping posts
  • 1 x USB cable
  • 1 x AC adapter
  • 1 x Battery
  • 1 x Certificate of calibration without data.

Important: Mark-10 equipment (other than the gauges) features open-access calibration. This means calibration adjustments are not locked out, giving you the freedom to use any standard-compliant calibration laboratory of your choice, saving you time and reducing lifetime ownership costs.

Reviews

There are no reviews yet.

Be the first to review “Series TT01 Cap Torque Tester”

Your email address will not be published. Required fields are marked *

Series TT01 Digital Cap Torque Tester Models

Capacity x Resolution
Model lbFin ozFin kgFcm Ncm Nm
MTT01-12 12 x 0.005 192 x 0.1 14 x 0.01 135 x 0.1 1.35 x 0.001
MTT01-25 25 x 0.01 400 x 0.2 28 x 0.02 290 x 0.2 2.9 x 0.002
MTT01-50 50 x 0.02 800 x 0.5 58 x 0.05 570 x 0.5 5.7 x 0.005
MTT01-100 100 x 0.05 1600 x 1 116 x 0.1 1150 x 0.5 11.5 x 0.005

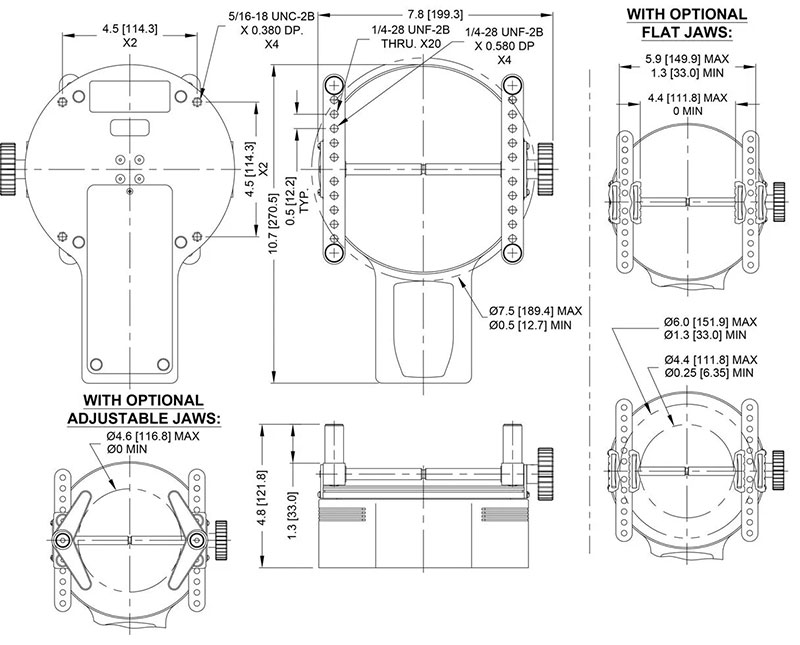

Dimensions

Technical Data

Accuracy:  ±0.3% of full scale
Sampling rate:  7,000 Hz
Bottle diameter range: Ø0.5 – 7.5 in [12.7 – 189.4 mm]
With CT001 optional jaws: Ø0 – 5.9 in [0 – 149.9 mm]
With CT003 optional jaws: Ø0 – 4.6 in [116.8 mm]
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units: ozFin, lbFin, kgFcm, Nm, Ncm
Output: USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analogue: ±1 VDC, ±0.25% of full scale at capacity,
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines, 40 VDC max., 100 mA DC max.
Configurable settings: Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe overload: 150% of full scale (display shows “OVER” at 110% and above)
Weight: 8.4 lb [3.8 kg]
Shipping weight: 10.2 lb [4.6 kg]
Environmental requirements: 40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing)
Warranty: 3 years (see individual statement for further details)
HS code: Model no. HS code:
MTT01 (all capacities) 9024100000
CERT
CT001,2,3,4,5,6,7
AC1036
AC1077
15-1004
AC1111
AC1109
AC1118
AC1030
AC1031
AC1032
AC1035		 9024800000
ECCN: EAR99
Country of origin: USA
