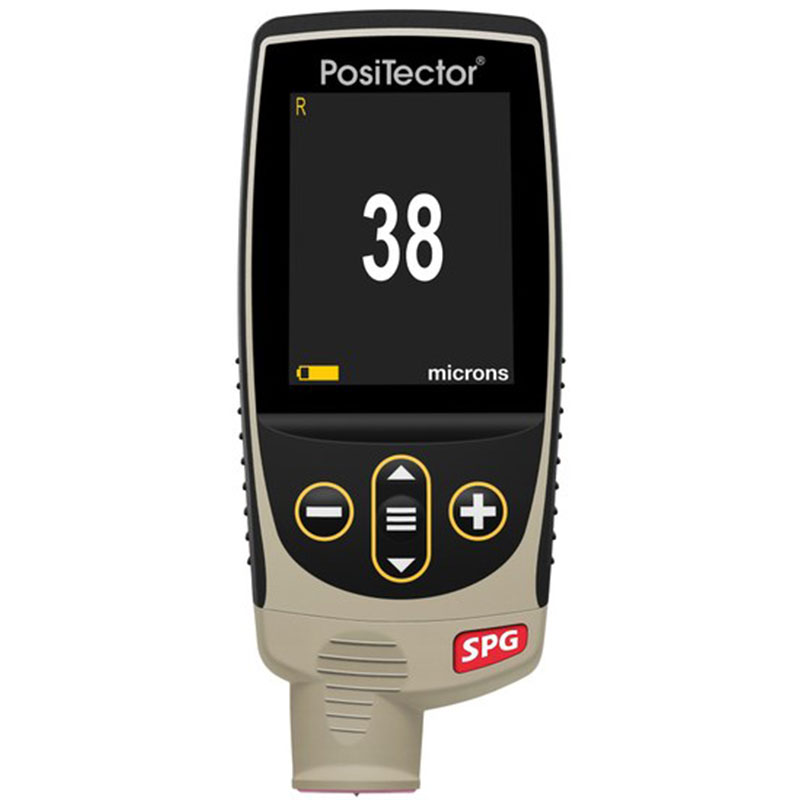

Positector Surface Profile Gauge
Manufactured by Neurtek
Offering a fast measurement rate of over 50 readings per minute, this digital surface profile gauge quickly and accurately measures large surface areas.
This rugged instrument is completely weatherproof with an IP65-rated enclosure, while the built-in temperature compensation ensures measurement accuracy.
Select from four models with cabled probes available for blasted steel, textured coatings, and concrete profile.
Price range: £577.27 through £763.63
Choose Your Model
Select a variation to pay instantly
Benefits
- Accepts all PosiTector SPG (surface profile), DPM (environmental) and 6000 (coating thickness) probes.
- 8” impact resistant colour touchscreen with redesigned keypad for quick menu navigation.
- 60º angle tungsten carbide tip for long life and continuous accuracy (field replaceable).
- Acid, dust, oil, solvent, and water-resistant.
- Auto rotating display with Flip lock.
- On-gauge help explains menu items at the touch of a button.
- Two year warranty on body and probe.
- Screen Capture—save 100 screen images for record keeping and review.
- Certificate of calibration showing traceability to NIST included.
- Glass zero plate and metal shim included.
- Conforms to national and international standards including ISO and ASTM.
- 30º angle interchangeable probe tip available for special applications.
- Selectable display languages.
- Hi contrast backlit display for bright or dark environments.
- Uses alkaline or rechargeable batteries (built-in charger).
- Continually displays/updates average, standard deviation, min/max thickness and number of readings.
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits.
- Every stored measurement is date and time stamped.
- USB port for fast, simple connection to a PC and to supply continuous power (USB cable included).
Multiple measurement download/transfer options:
- USB mass storage – Stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required.
- Net – A free web-based application offering secure storage of thickness readings.
- PosiSoft Software Compatible – Continue using the familiar legacy software you have used for years. Available as a free download.
- Software updates via web keep your gauge current.
| Model Reference | Type | Description |
| DEF-SPG1 | Positector SPG Surface Profile Gauge, built in probe, standard 0 to 500µ | Integral probe ideal for one-handed operation (Ideal for measuring the surface profile of steel cleaned by abrasive blast). |
| DEF-SPGS1 | Positector SPG S Surface Profile Gauge, cabled probe, standard 0 to 500µ / Tip: 50µ radius 60º angle | Probe mounted on a 1m/3ft cable for enhanced ergonomics and access to hard-to-reach areas (Ideal for measuring the surface profile of steel cleaned by abrasive blast). |
| DEF-SPGCS1 | Positector SPG CS Surface Profile Gauge, cabled probe, standard 0 to 1500µ / Tip: 500µ radius 60º angle | Ideal for measuring the surface profile of textured coatings and other surface profile applications. |
| DEF-SPGTS1 | Positector SPG TS Surface Profile Gauge, cabled probe, standard – 0 to 6mm / Tip: 500µ radius 60º angle | Ideal for measuring the surface profile of concrete created by blasting, scarifying, grinding, acid etching, and more. |
