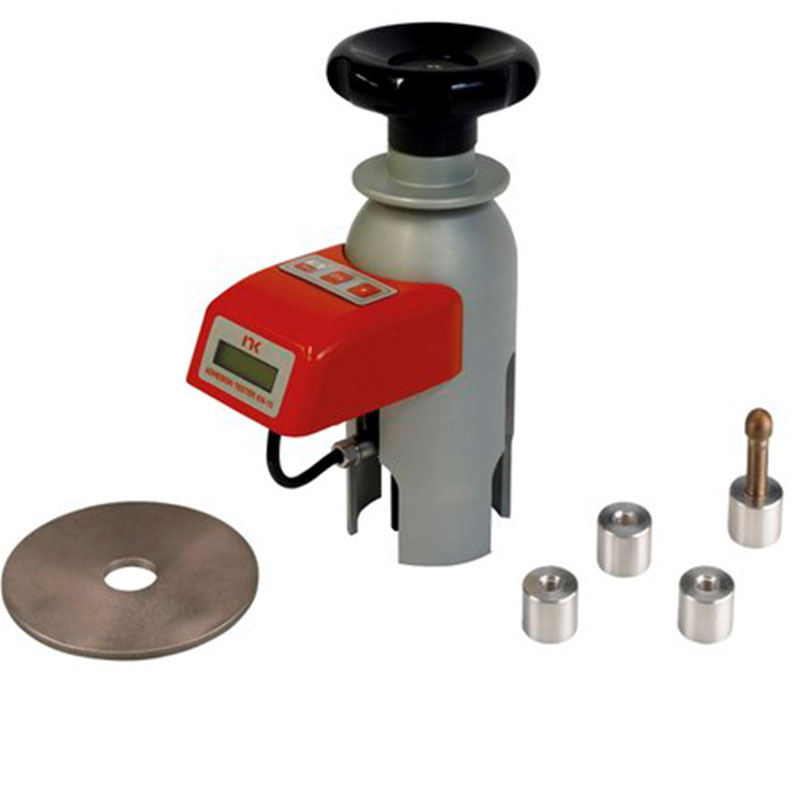

KN-10 Pull Off Adhesion Tester
Manufactured by Neurtek
This digital pull-off adhesion tester is available in two different configurations to accurately measure the adhesion of either paints and coatings, or construction materials. It has a measuring range of (0.05 kN to 10 kN), ensuring reliable results both in the lab and on-site.
It uses the pull-off adhesion method to accurately evaluate the force required to detach a dolly bonded to the surface, providing reliable, repeatable, and standard-compliant results.
Optional dollies (20mm and 500mm diameters) are available, which provide a standardised surface to securely bond the coating to the tester, helping prevent skewed results.
Benefits
- Suitable for laboratories and on-site environments.
- Digital display with clear adhesion value reading.
- Automatic calibration via microprocessor.
- Complies with international and national standards (See Specification for details).
- Includes SER-CT013 traceability certificate.
How Does The Pull-Off Adhesion Test Work?
- A dolly is bonded to the surface to be tested.
- A circular cut is made to isolate it from the surrounding coating.
- The KN-10 tester is placed on the dolly.
- By turning a wheel, progressive force is applied until detachment occurs.
- The digital display shows the exact force applied at the moment of separation.
This procedure allows adhesion to be checked with high precision, eliminating human error and facilitating the evaluation of coatings in laboratories and on site.
The KN-10 portable pull-off adhesion tester can be applied to paints, coatings, plasters, mortars, ceramic tiles, and other construction materials for a wide range of applications.
These include:
- Ceramic tiles and wall tiles.
- Evaluation of pretreatments and surface cleaning.
- Interior plasters and stone-based finishes.
- Paints and façade coatings.
- Validation of products and methods prior to final application.
Available Versions & Standards Compliance
The KN-10 electronic tester is available in two configurations:
- KN-10 Standard (ref. 0302600): Compliant with international standards (UNE EN 24624 / ISO 4624-78 / ASTM D4541-95) for paint and coating testing. Optional: construction testing set per UNE EN 1015-12.
- KN-10 Construction (ref. 0302700): Designed for testing construction materials per UNE EN 1015-12 (mortars and construction coatings). Optional: paint testing set.
Depending on the model ordered, the following elements are included:
KN-10 Standard Model For Industrial Paints
- Adhesion tester.
- 10 aluminium holders of 20 mm diameter.
- Cutting tool for 20 mm.
- 34 mm length traction ball-and-socket joint.
- Adhesive.
- Magnetic holder support.
- Reinforcement disc for tests on soft and irregular supports.
- 2.5 mm Allen wrench.
- Transport case.
- Operating instructions in Spanish.
Optional: Conversion set for tests in construction (EN 1015-12) (Neurtek code 0302601):
- 5 aluminium holders of 50 mm diameter.
- 50 mm diameter Trephine or Tungsten carbide cutting tool.
- Ball-and-socket joint set of 75 mm length, 3 feet high and support washer.
KN-10 Construction Model For Construction, Mortars, and Coatings
- Adhesion Tester.
- 5 aluminium holders of 50 mm diameter.
- 50 mm diameter Trephine or Tungsten carbide cutting tool.
- 75 mm length traction ball-and-socket joint set
- 3 feet high adjustable set.
- Support washer
- 2.5 mm Allen wrench.
- Transport case.
- Adhesive.
- Operating instructions in Spanish.
Optional: Conversion set for industrial paints tests (EN 24624, ISO 4624-78, ASTM D 4541-95) (Neurtek code 0302701):
- 10 aluminium holders of 20 mm diameter.
- 34mm length traction ball-and-socket joint set.
- 20mm diameter cutting tool.
- Magnetic holder support.
- Reinforcement disc for tests on soft and irregular supports.
