Digital Thickness Gauge (Hand Held) Low Cost Hand Held Thickness Gauge


Digital Thickness Gauge a flexible, precision thickness gauge which enables the user to take high-speed, accurate measurements with a one micron resolution. This gauge is ideal for measuring plastic film, paper, card, wire or any type of sheet material.

Low cost Digital Thickness Gauge with a readability of 0.001mm with optional calibration certificate. Very popular thickness gauge for a variety of industries. Great value robust gauge.

Optional Extras

UKAS Traceable Calibration

Digital Thickness Gauge Features

  • Resolution: 0.001mm (0.00005″)
  • Accuracy: 0.002mm (0.00010″)
  • Jaw Capacity: 12.7mm (0.5″)
  • Throat Maximum Depth: 30mm
  • mm/inch Conversion
  • Zero Setting at any point
  • Ceramic Anvils
  • RS232 Output
  • Power: 1.5V SR44 Battery (Included)
  • Hard Plastic Case

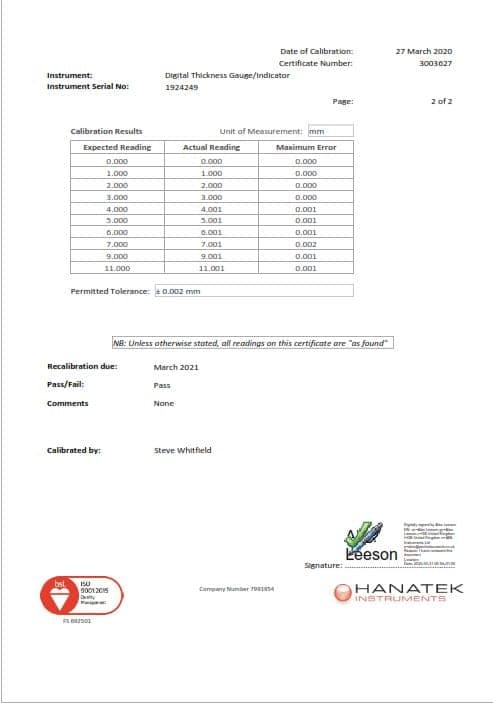

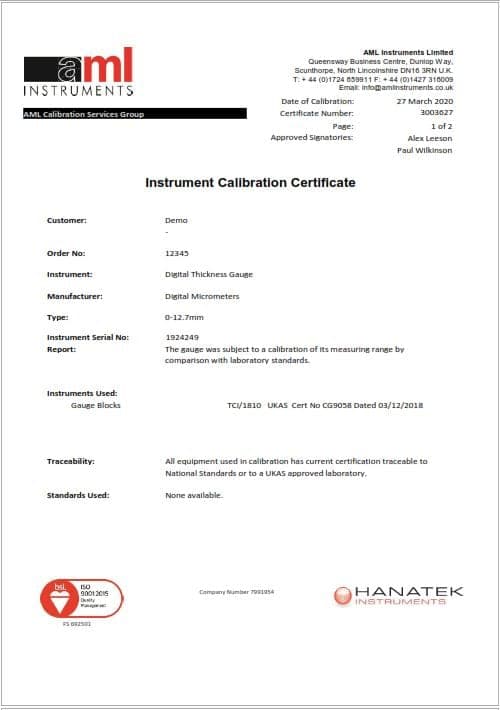

  • Optional Calibration Certificate

Not sure which gauge you need? Contact our experienced engineers and we can make recommendations to ensure your purchase meets your exact needs.

Calibration service available for any thickness gauge and a huge range of other equipment, visit our calibration pages for more information or contact us today to see how we can help you.
